Fixed focus UVC micro usb2.0 OV 9732 webcam for android

Product category:

USB Camera Board

SKU:

217146

Price:

$14.40

Description

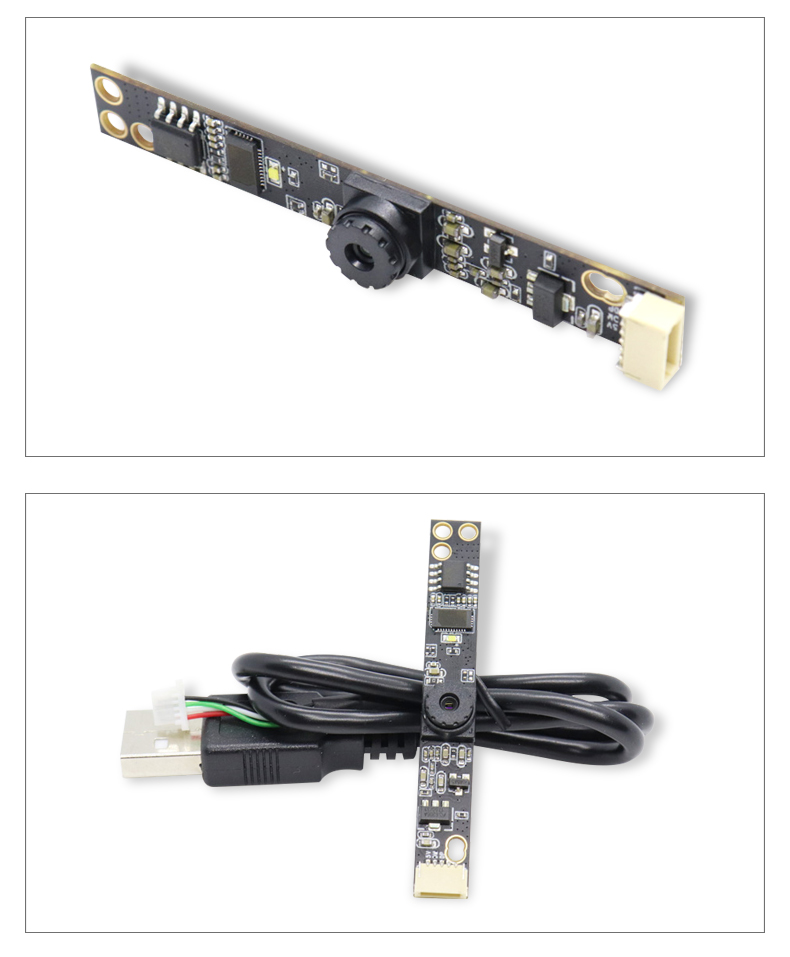

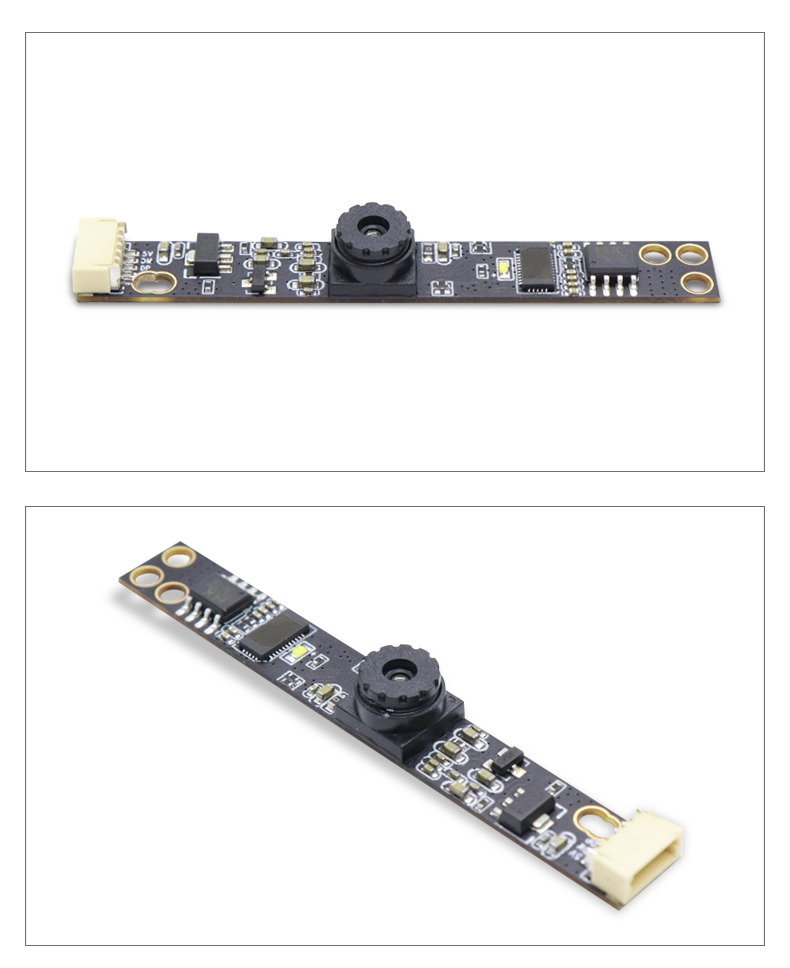

UVC OV9732 1MP HD Laptop CMOS Camera Module Win XP/win 8 / vista /android 4.0/ mac /Linux with uvc

Model No.	BMNB1924-720 V22

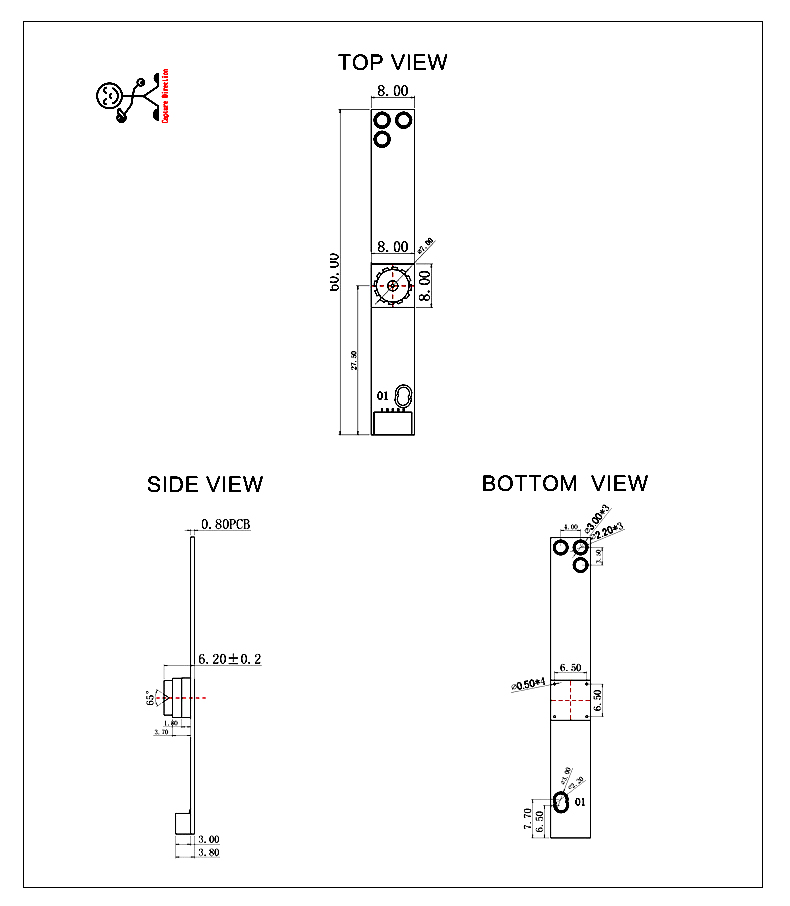

Model Size	60mm × 8mm × 6.2mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power supply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	400mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9732 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	1280*720
Sensitivity	2066mv /(lux-sec)
Pixel Size	3μm x 3μm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS
S/N Ratio	39B
Max Dynamic Range	72B
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4P
F/No	2.4
EFL	3.36m
FOV	65°
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
USB cable	50CM 1M 2M 3M
1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding
