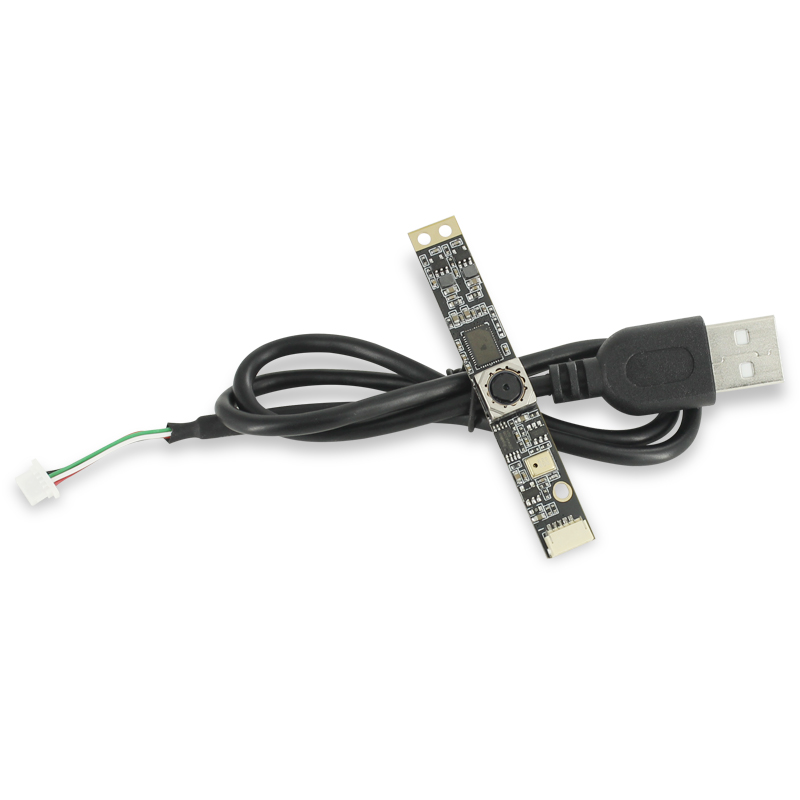

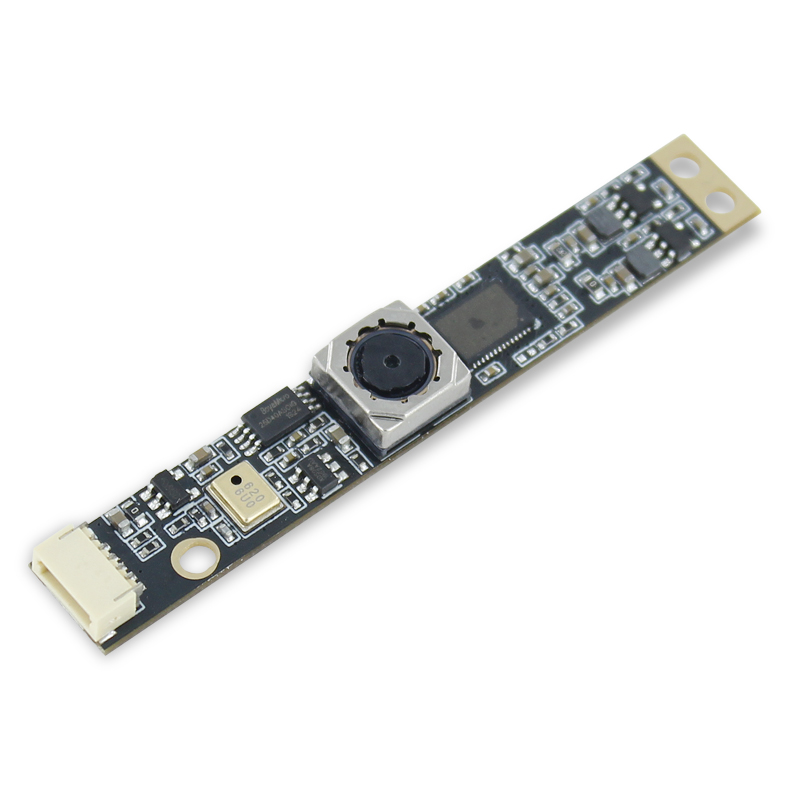

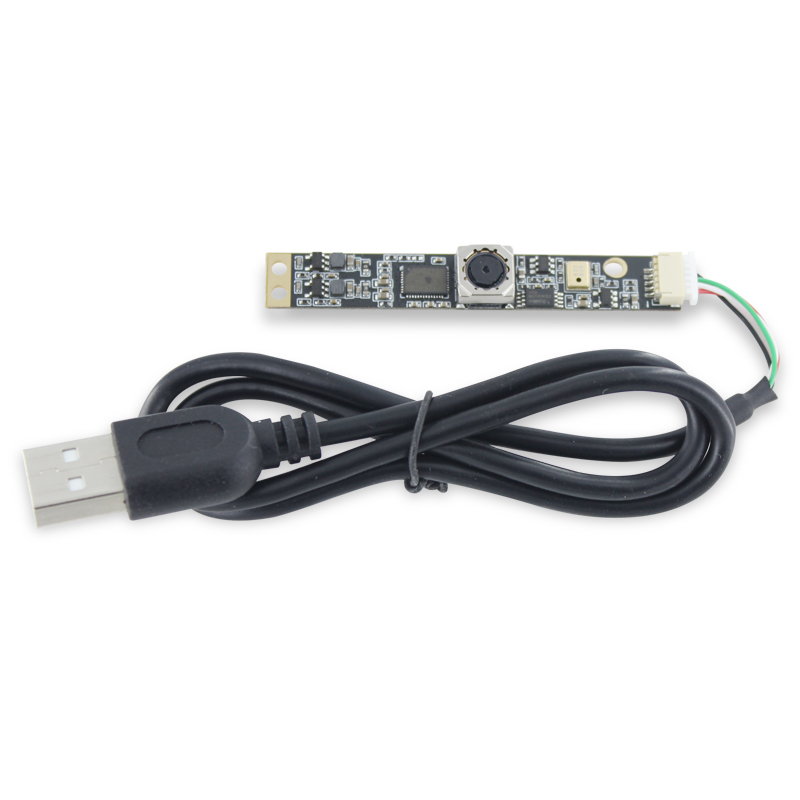

5MP 2K Laptop Camera Module Auto Focus with Microphone

Product category:

USB Camera Board

SKU:

216596

Price:

$18.00

Description

Product Name	5MP Laptop Webcam Module

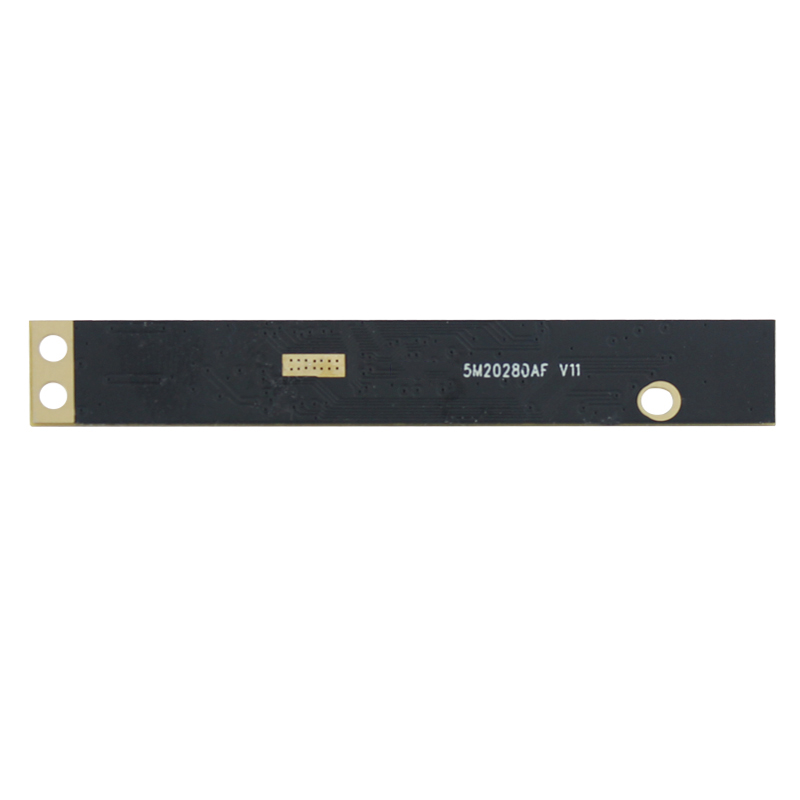

Module No	BM5M20280AF V33-78
Module Size	62mm × 9mm × 5.50mm±0.2MM
specificities	1. Standard advertising machine integrated machine structure and hole position 2. With 2k resolution 3. Integrated digital microphone 4. Upgraded on the 1825-5640 product, the focusing algorithm is more sensitive and precise, with better results compared to no flash 5. Multiple camera options available
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Auto
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	740 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV5647 (1/4" )
Seneor Package	PLCC,Bare Die
Maximum resolution	2592*1944
Sensitivity	600mV /（lux-sec）
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS
S/N Ratio	34db
Max Dynamic Range	67db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	5P
F/No	2.2
EFL	2.8 mm
FOV	78°
TV Distortion	<1.0%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROHS
