Camera Module 0.3 MP HD 120Fps Mipi Camera Module GC0308 Sensor

Product category:

USB Camera Board

SKU:

216671

Price:

$11.40

Description

Product Description

Product name	0.3MP mini built-in macro infrared camera module
Module No.	BM1914S V44

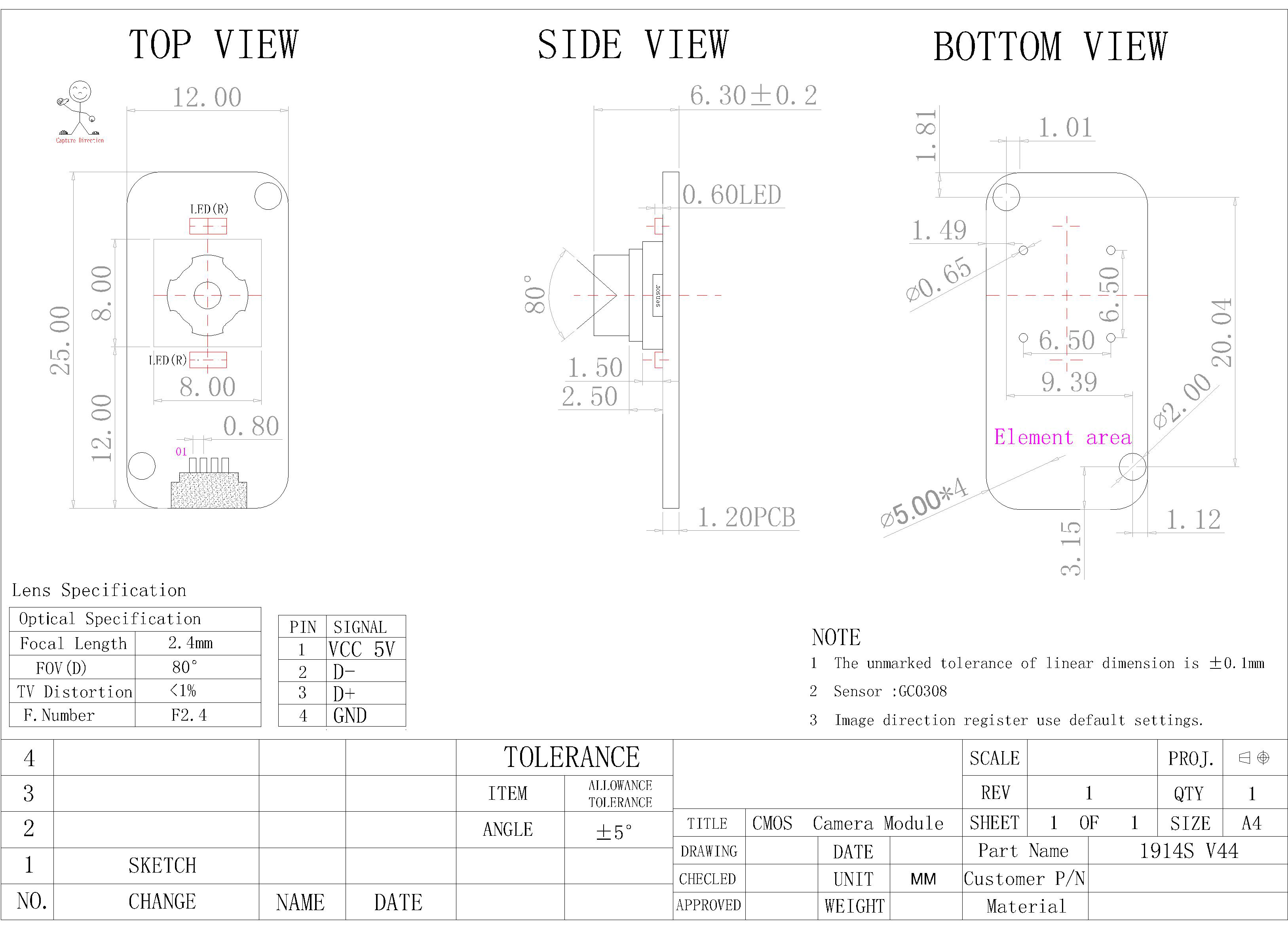

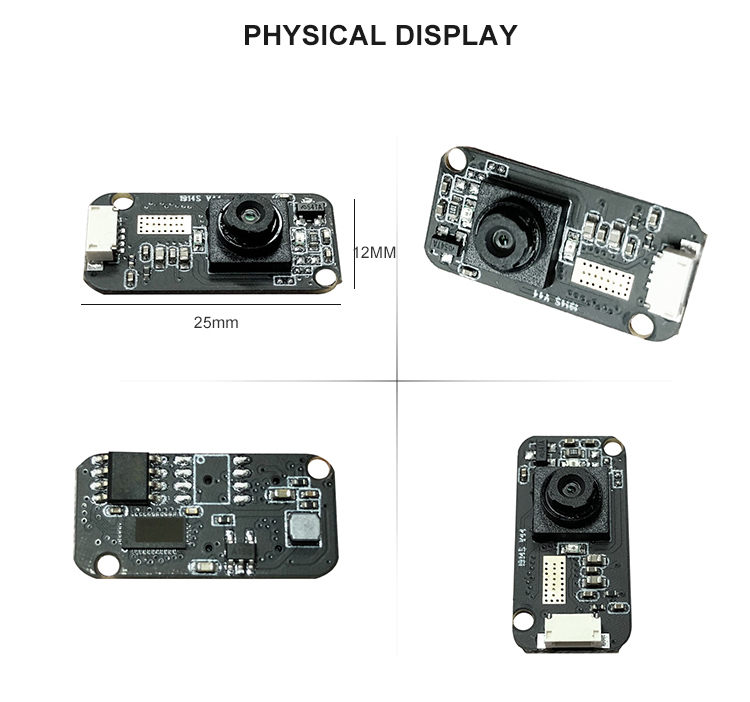

Module Size	25mm × 12mm × 6.3mm±0.2MM
Features	1. Small size, with YUV/MJPEG format, high frame rate 320x240-120fps 2. Macro infrared 850nm (regular delivery all-pass NO-IR film, black and white) 3. Can be made into color low frame, high frame non-infrared night vision 4. Small-angle magnification, large-angle field of view optional
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black

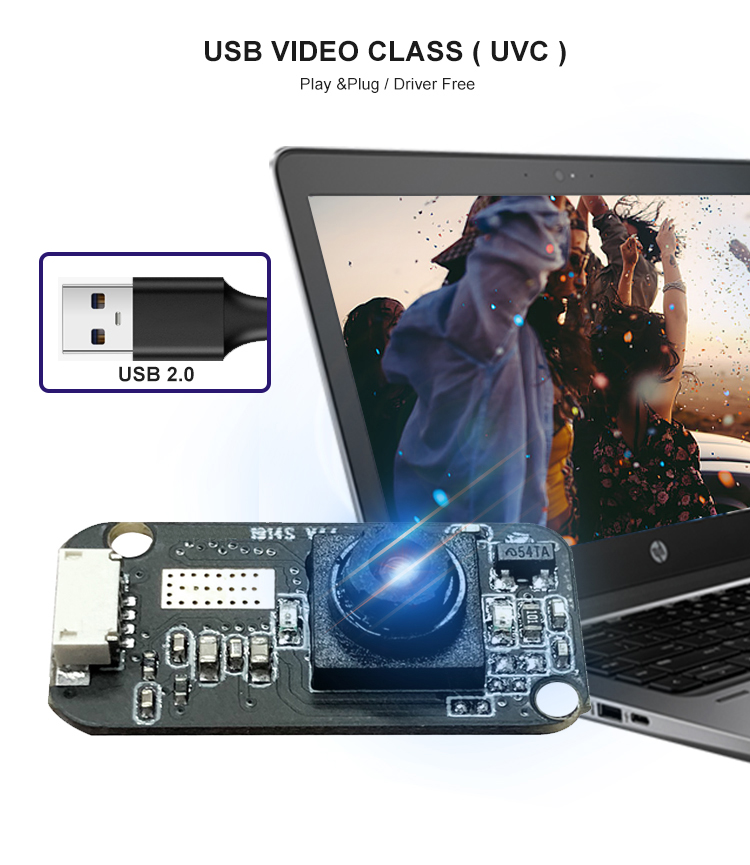

interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	500mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	GC0308 (1/6.5" )
Seneor Package	CSP,Bare Die
Maximum resolution	640*480
Sensitivity	3.0mv /(lux-sec)
Pixel Size	3.4µm x 3.4µm
Maximum Image Transfer Rate	MJPEG 160x120 30FPS / YUY2 160x120 30FPS MJPEG 320x240 128FPS / YUY2 320x240 128FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS
		S/N Ratio	42 db
		Max Dynamic Range	58 db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	NO
		Lens Construction	4P
		F/No	2.4
EFL	2.4mm
FOV	80°
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	850±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

Effect Picture
