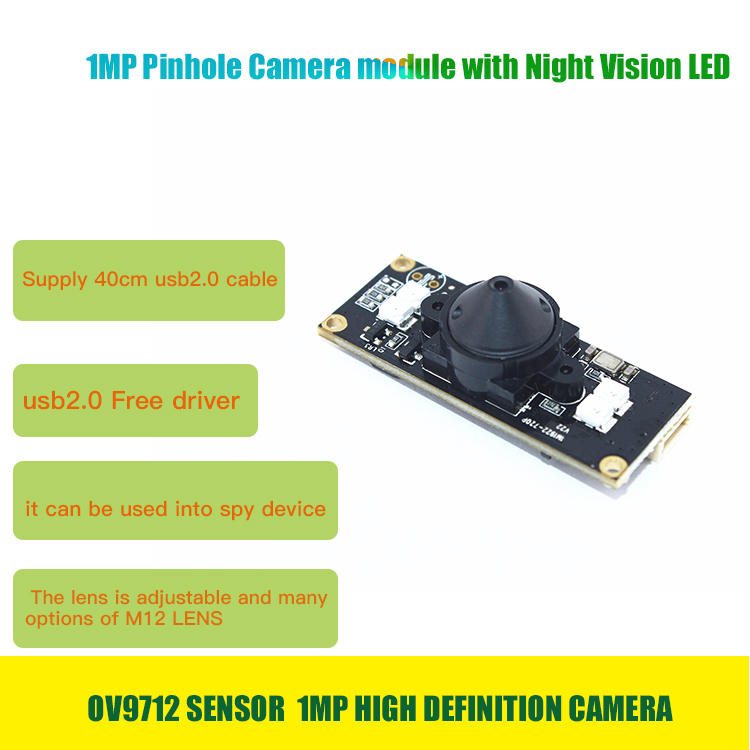

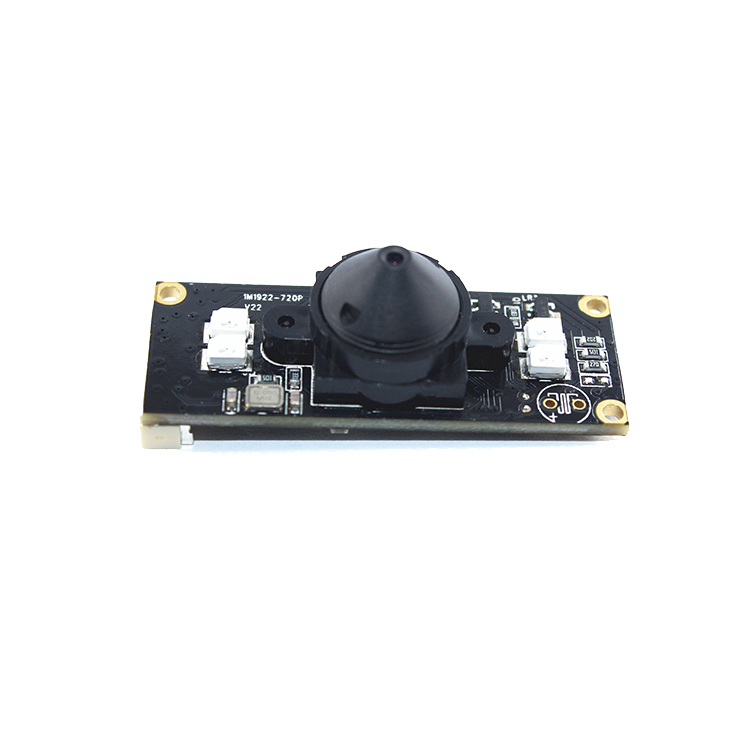

1MP HD 1280*720p OV9712 Sensor Android Micro Mini UVC CMOS Camera Module With Free Driver

Product category:

USB Camera Board

SKU:

216941

Price:

$14.40

Description

Module No.	BM1M1922-720P V22

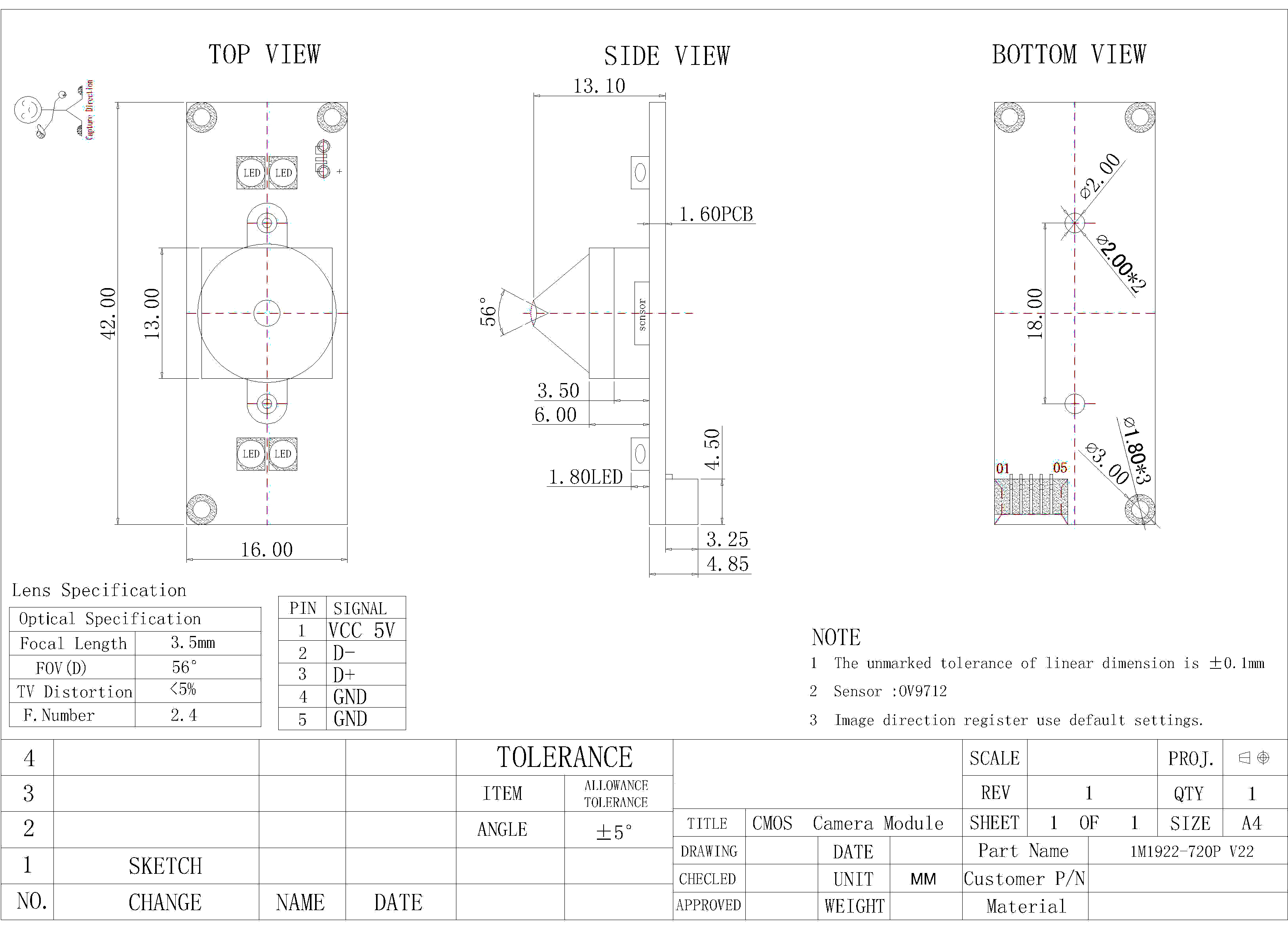

Module Size	42mm × 16mm × 13.1mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1000 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9712 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	1280*800
Sensitivity	3300mV /（lux-sec）
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 160x120 30FPS / YUY2 160x120 30FPS MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x288 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS
FOV	56°
Certifications	FCC/CE/ROSH
