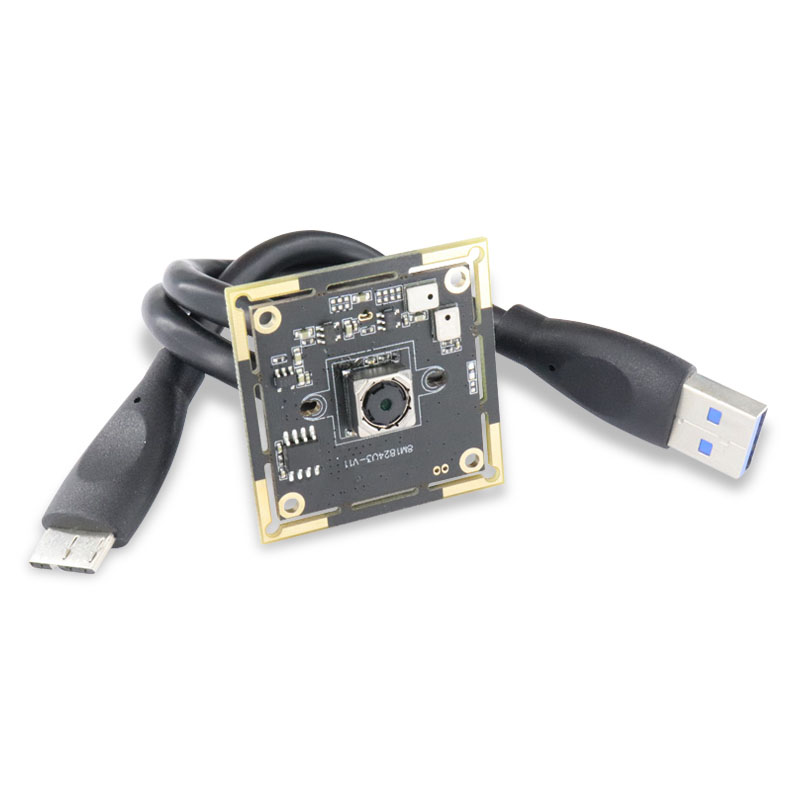

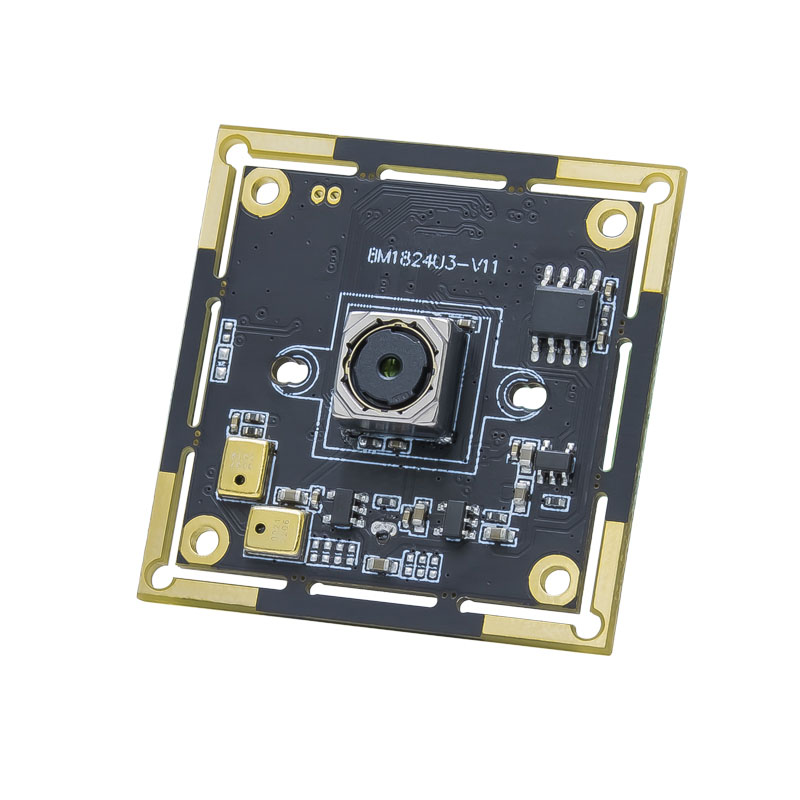

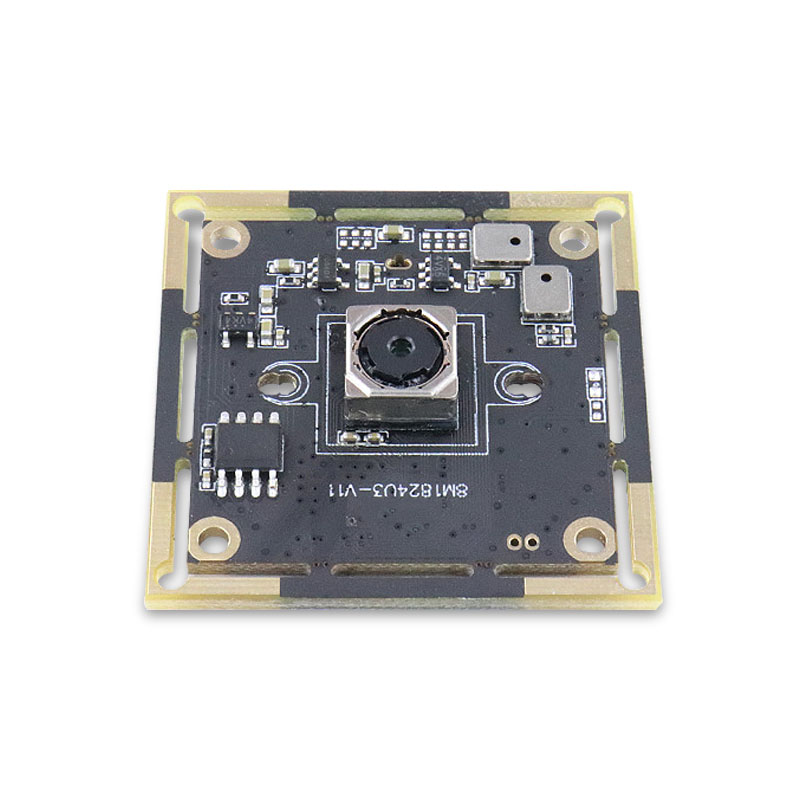

8MP high speed camera module for Document Shooting

Product category:

USB Camera Board

SKU:

216655

Price:

$33.60

Description

Product Name	8MP high speed camera module
Module No	BM8M1824U3 V11-77.2
Module Size	38mm × 38mm × 6.75mm±0.2MM
specificities	1. Standard industrial camera 38, 32mm board structure 2. Advantages: USB3.0 MJPEG-8mp 20 frames YUY2-8mp 15 frames 3. Limited lens selection range 4. Externally expandable white light board 5. Adjustable Altimeter Effect
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	AUTO
Object distance	30CM-infinity
Resolution	800LW/PH (Center)
PCB printing ink	Black
interface	USB 3.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1000 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	IMX179 (1/3.2" )
Seneor Package	PLCC,Bare Die
Maximum resolution	3264*2448
Sensitivity	700mV /（lux-sec）
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 1280x1024 30FPS / YUY2 1280x1024 5FPS MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 20FPS / YUY2 2048x1536 3FPS MJPEG 2592x1944 20FPS / YUY2 2592x1944 2FPS MJPEG 3264x2448 20FPS / YUY2 3264x2448 1FPS
S/N Ratio	44 db
Max Dynamic Range	83 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	5P
F/No	2.2
EFL	3.5 mm
FOV	77.2°
TV Distortion	<1.0%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROHS
