2Mp Cmos Camera Jx-F22 Sensor 1080P Uvc Usb Camera Module Usb Camera Module With Microphone

Product category:

USB Camera Board

SKU:

217082

Price:

$24.00

Description

Product Description

Product Name	2 MP industrial computer, advertising machine, equipment embedded built-in camera module
Module No.	BMF20216HD V22

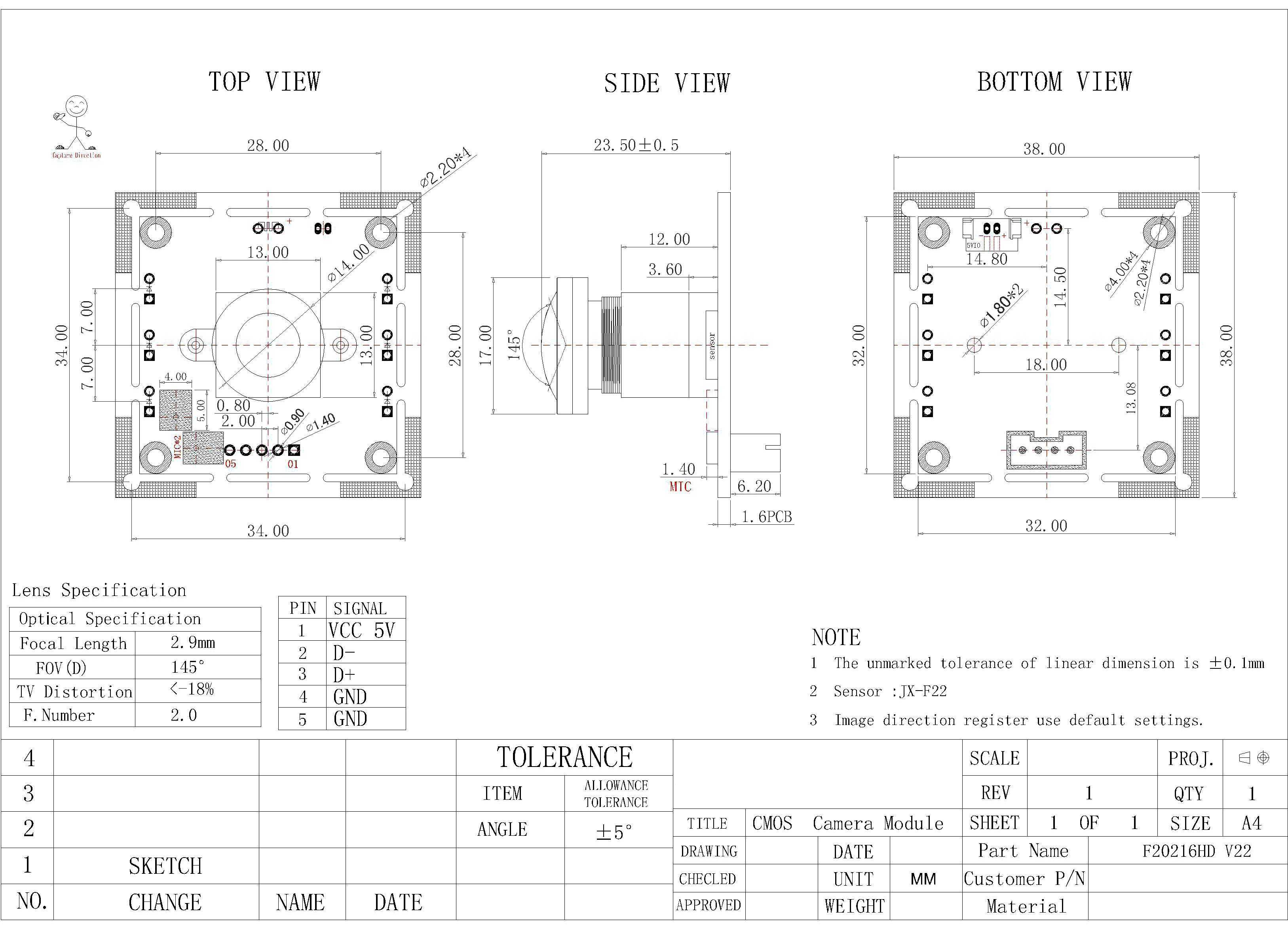

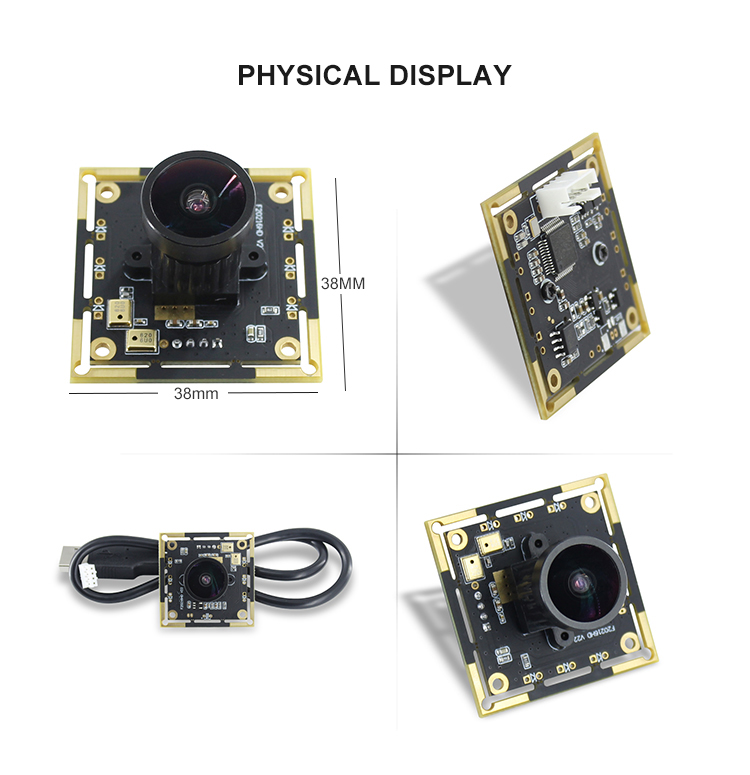

Module Size	38mm × 38mm × 23.5mm±0.5MM
Features	1. Standard industrial camera 38, 32mm panel structure 2. Wide range of lens options and high cost performance 3. 6 plug-in lights (infrared white light) can be added and welded, which can be turned on and off, or photosensitive control.
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black

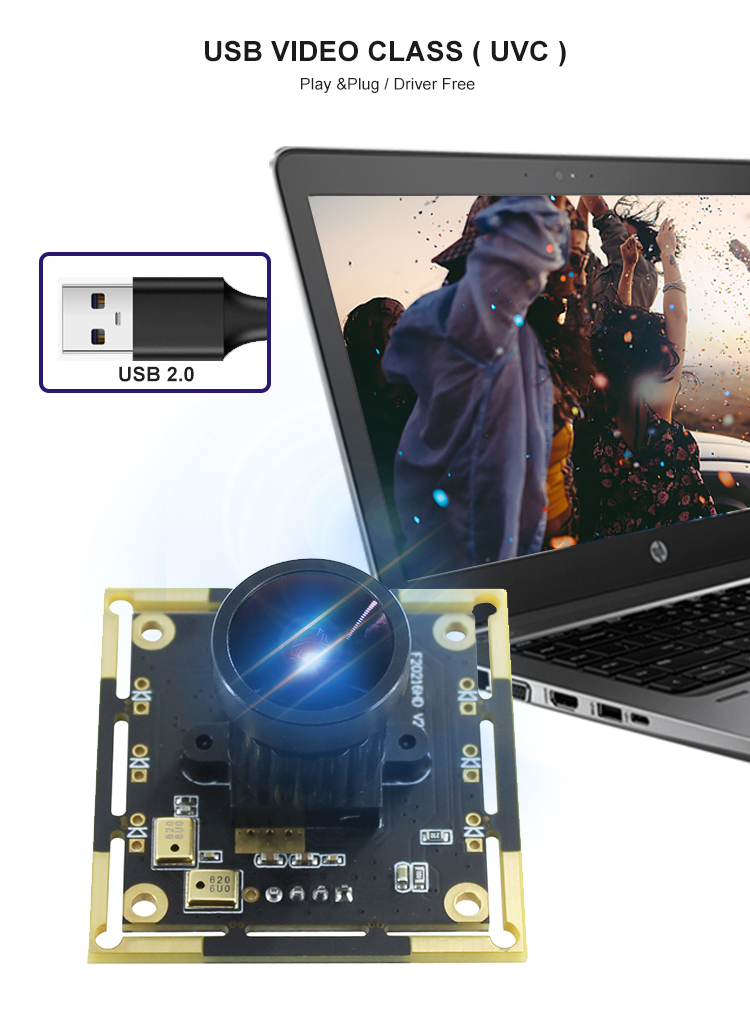

interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	800mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	JX-F22 (1/2.7" )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	3900mV /(lux-sec)
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1024x768 30FPS / YUY2 800x600 30FPS MJPEG 1280x720 30FPS / YUY2 1024x768 30FPS MJPEG 1280x960 30FPS / MJPEG 1600x960 30FPS / MJPEG 1920x1080 30FPS /
		S/N Ratio	38 db
		Max Dynamic Range	73 db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	Support
		Lens Construction	4G
		F/No	2.0
EFL	2.9mm
FOV	145°
TV Distortion	<-18%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

Detailed Images
