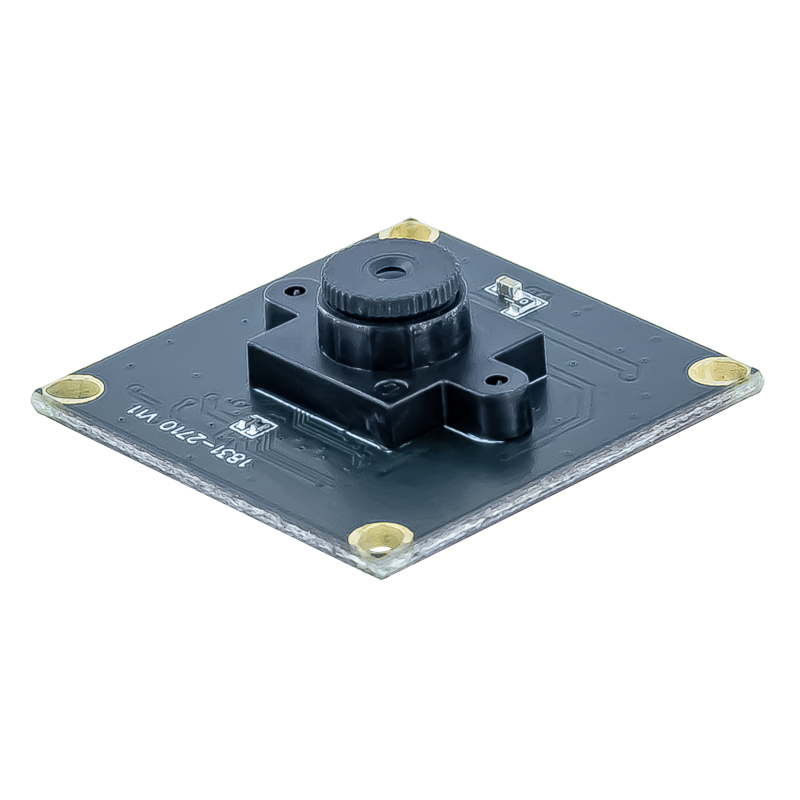

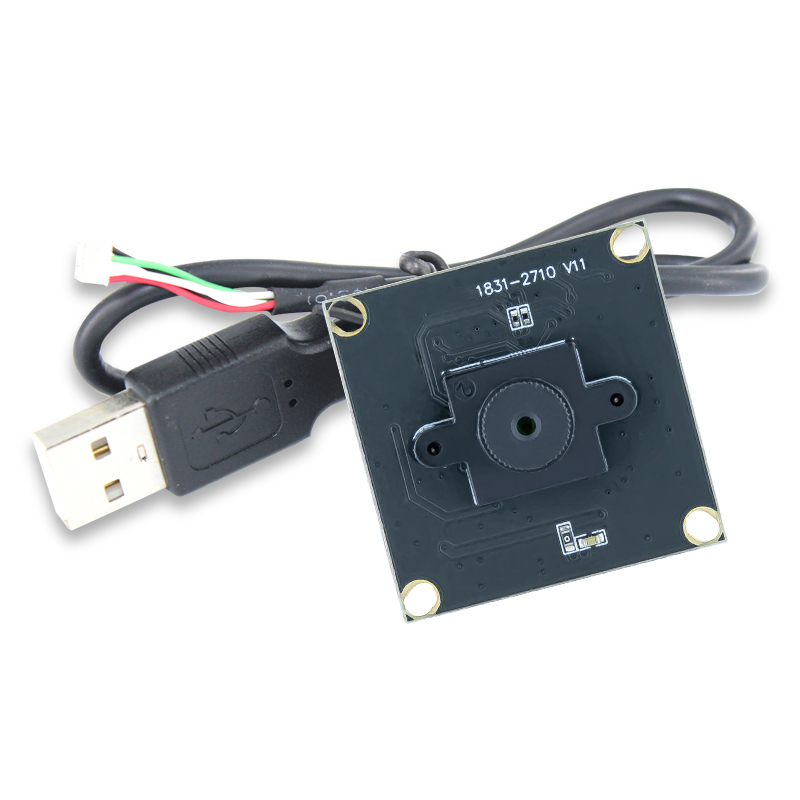

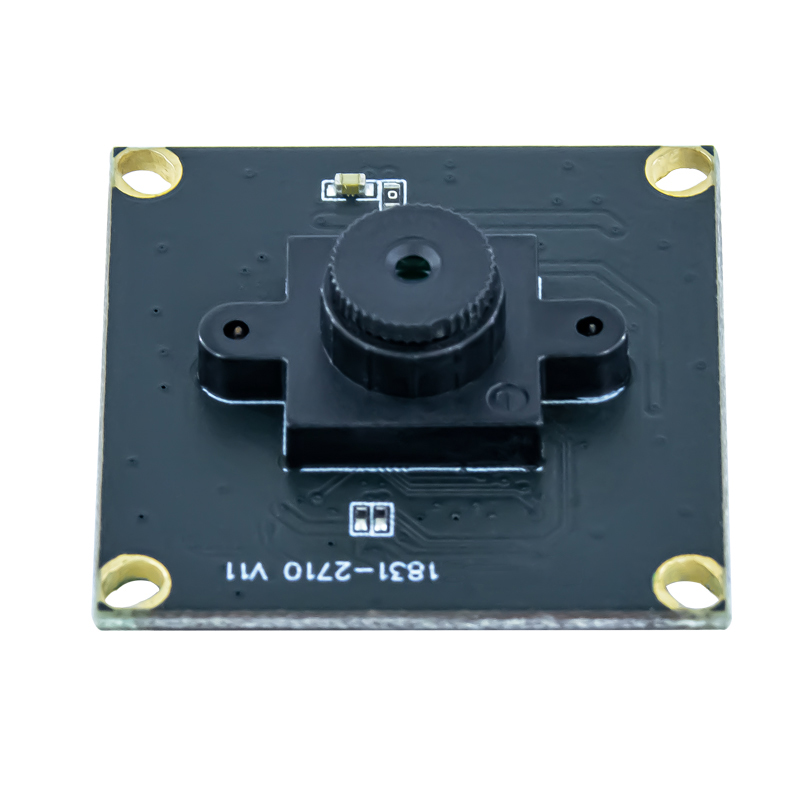

2MP Hd Fixed Focus Module Camera OV2710 1920*1980 Sensor Built-In Industrial Camera Module Usb

Product category:

USB Camera Board

SKU:

216774

Price:

$24.00

Quantity	Price
1 - Unlimited	$24.00

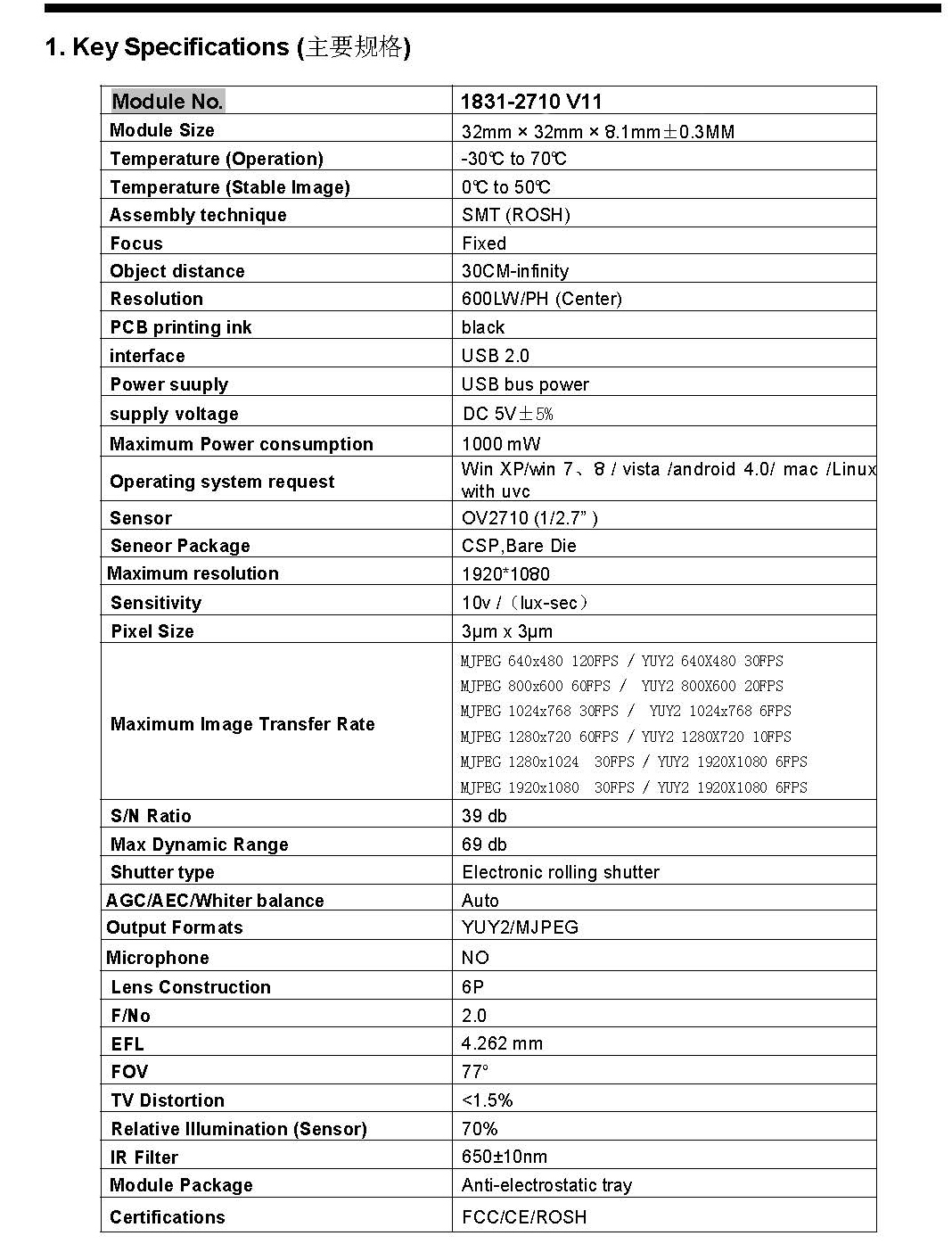

Description

Product name	2 MP industrial control industrial camera, advertising machine, equipment embedded built-in camera module
Module No.	BM1831 V11
Module Size	32mm × 32mm × 8.1mm±0.3MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1000mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV2710 (1/2.7" )
Seneor Package	Csp,Bare Die
Maximum resolution	1920*1080
Sensitivity	10mV /(lux-sec)
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 640x480 120FPS / YUY2 640X480 30FPS MJPEG 800x600 60FPS / YUY2 800X600 20FPS MJPEG 1024x768 30FPS / YUY2 1024x768 6FPS MJPEG 1280x720 60FPS / YUY2 1280X720 10FPS MJPEG 1280x1024 30FPS / YUY2 1920X1080 6FPS MJPEG 1920x1080 30FPS / YUY2 1920X1080 6FPS
		S/N Ratio	39db
		Max Dynamic Range	69db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	NO
		Lens Construction	6P
		F/No	2.0
EFL	4.2mm
FOV	74°
TV Distortion	<1.5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
