2Mp 1080P Usb Camera Module Sensor Hm2131 Low Illumination Camera Module Dvp

Product category:

USB Camera Board

SKU:

217077

Price:

$39.60

Description

Product Description

Product Name	2 MP soft hard board separation docking flexible structure device embedded built-in camera module
Module No.	BMF20248HD V22

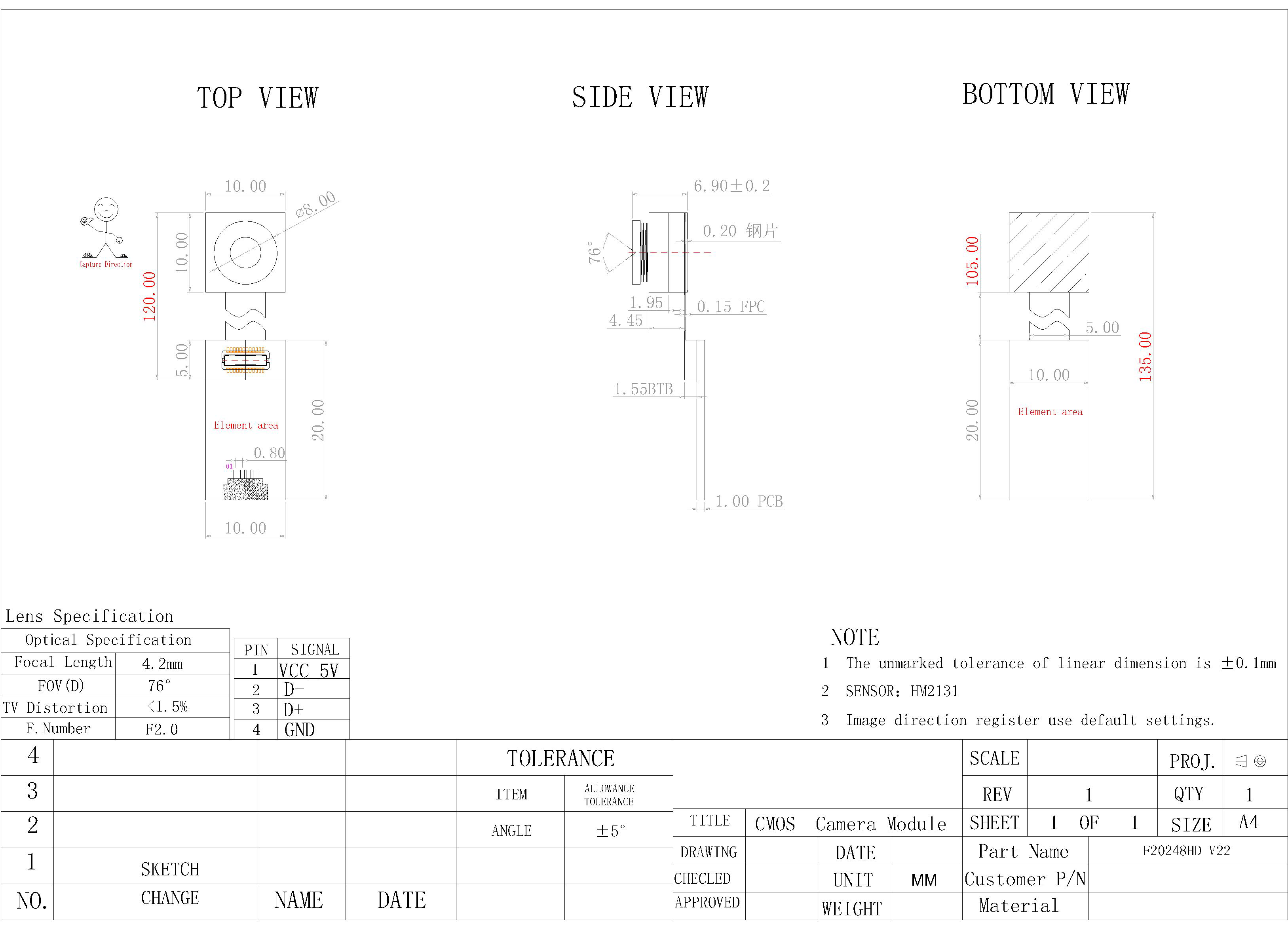

Module Size	135mm × 10mm × 6.9mm±0.2MM
Features	1. Soft and hard board split flexible structure, large image surface, high-definition effect, small volume 2. Can do 30/60FPS 3. The head can be made 9X9mm/10X10mm 4. Several specification lenses are optional
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	450mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	HM2131 (1/2.7" )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	4600mV /(lux-sec)
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
		S/N Ratio	38.9 db
		Max Dynamic Range	62 db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	Support
		Lens Construction	6P
		F/No	2.0
EFL	4.2mm
FOV	76°
TV Distortion	<1.5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

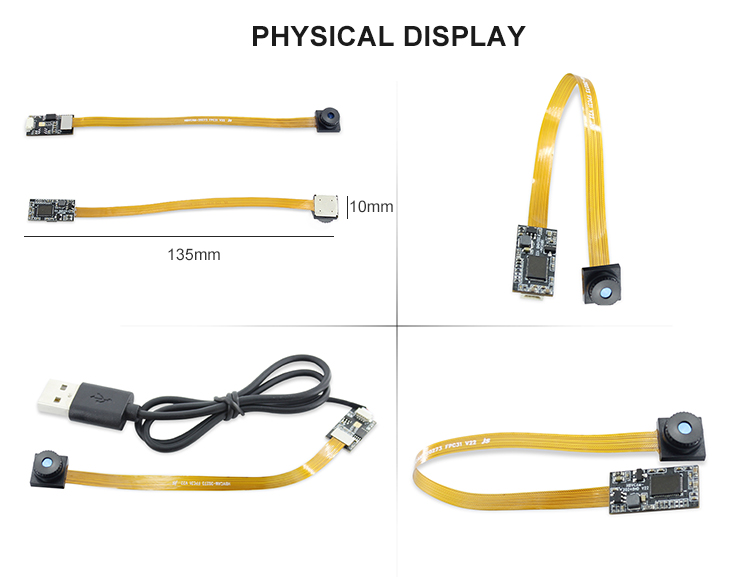

Detailed Images
