1MP HD OV9732 USB3.0 Dual Camera Module For 3D Depth Measurement

Product category:

USB Camera Board

SKU:

216893

Price:

$38.40

Description

Product Description

Product Name	1MP HD OV9732 USB3.0 Dual Camera Module For 3D Depth Measurement
Module No.	BMW2280U3-2 V22

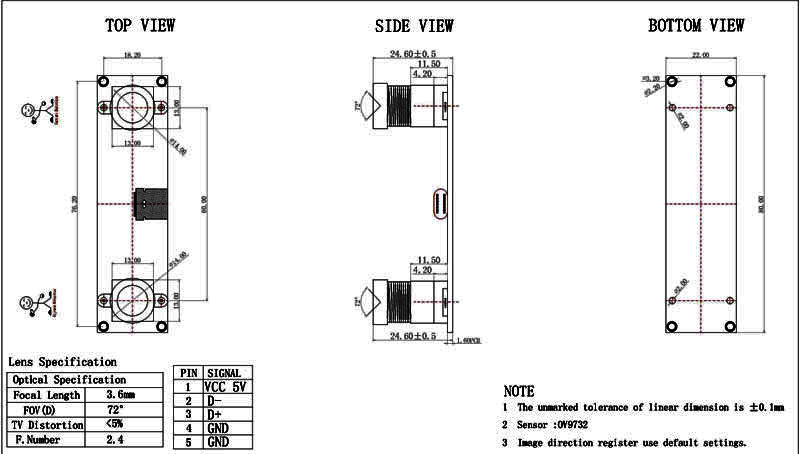

Module Size	80mm × 22mm × 24.60mm±0.5MM
Features	1. Standard advertising machine all-in-one machine structure and hole position 2. Auto Focus with Microphone 3. AF auto focus
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 3.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	710mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9732 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	2560*720
Sensitivity	2066mV /(lux-sec)
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 640x240 30FPS / YUY2 640x240 30FPS MJPEG 1280x360 30FPS / YUY2 1280x360 10FPS MJPEG 1600x600 30FPS / YUY2 1600x600 10FPS MJPEG 2560x720 30FPS / YUY2 2560x720 5FPS
		S/N Ratio	39db
		Max Dynamic Range	72db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	YES
		Lens Construction	2G2P
		F/No	2.4
EFL	3.6mm
FOV	72°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

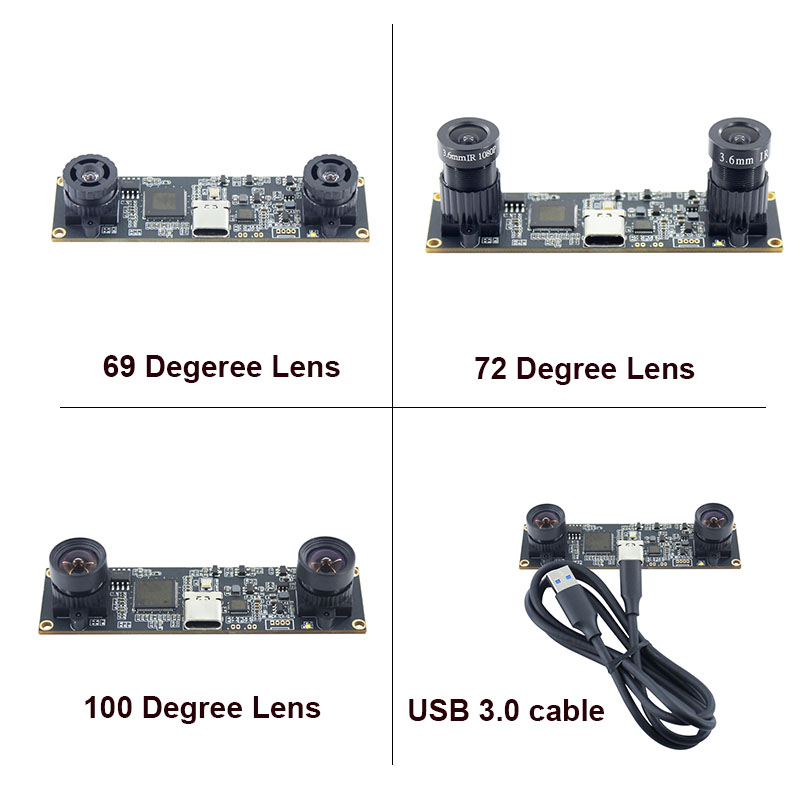

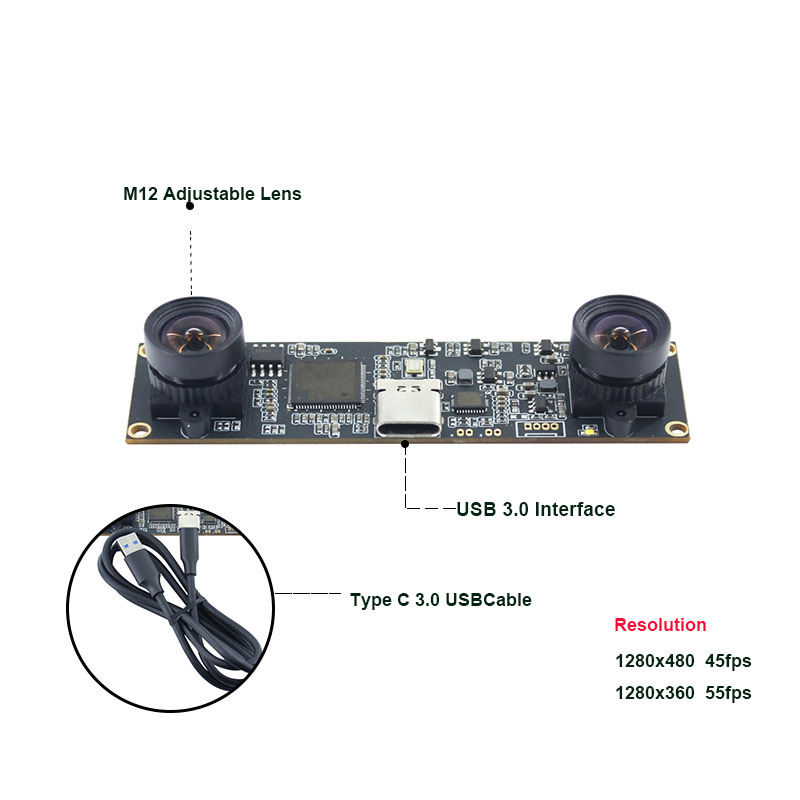

Detailed Images

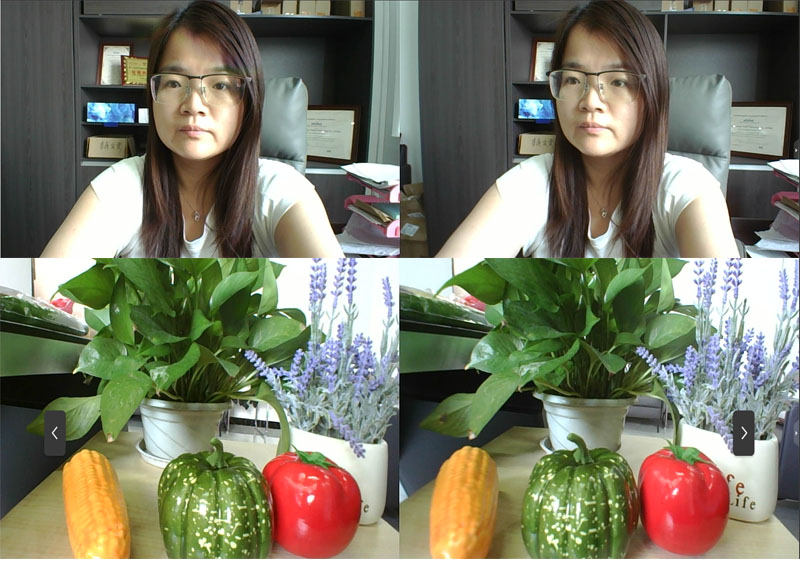

Effect Picture
