1MP HD Color CMOS OV9732 Mini USB Camera Module Outdoor Laptop Use Face Recognition

Product category:

USB Camera Board

SKU:

216718

Price:

$13.20

Description

Module No.	BMW20217 V22

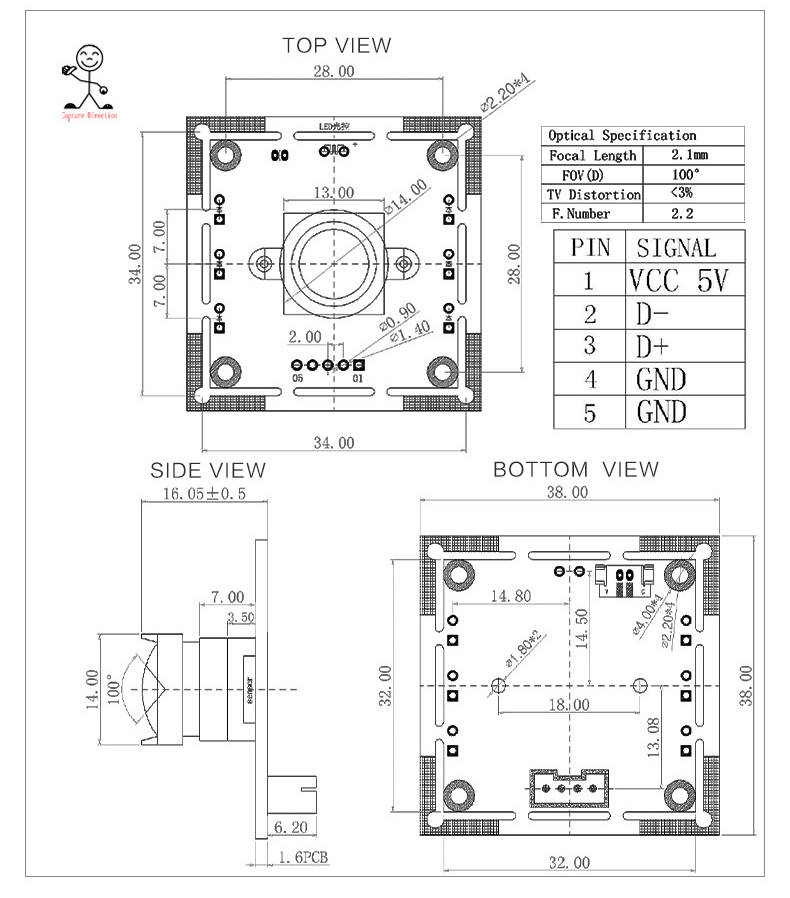

Module Size	38mm × 38mm × 16.05mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	450 mW

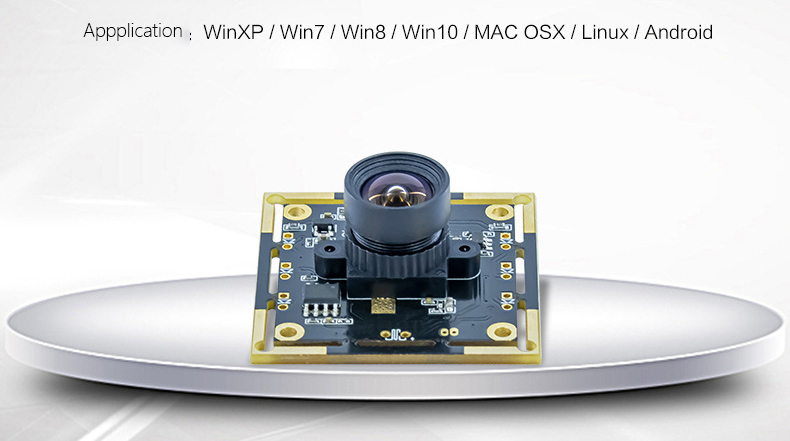

Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9732 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	1280*720
Sensitivity	3300mV /（lux-sec）
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS
S/N Ratio	39db
Max Dynamic Range	72db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	2G2P
F/No	2.2

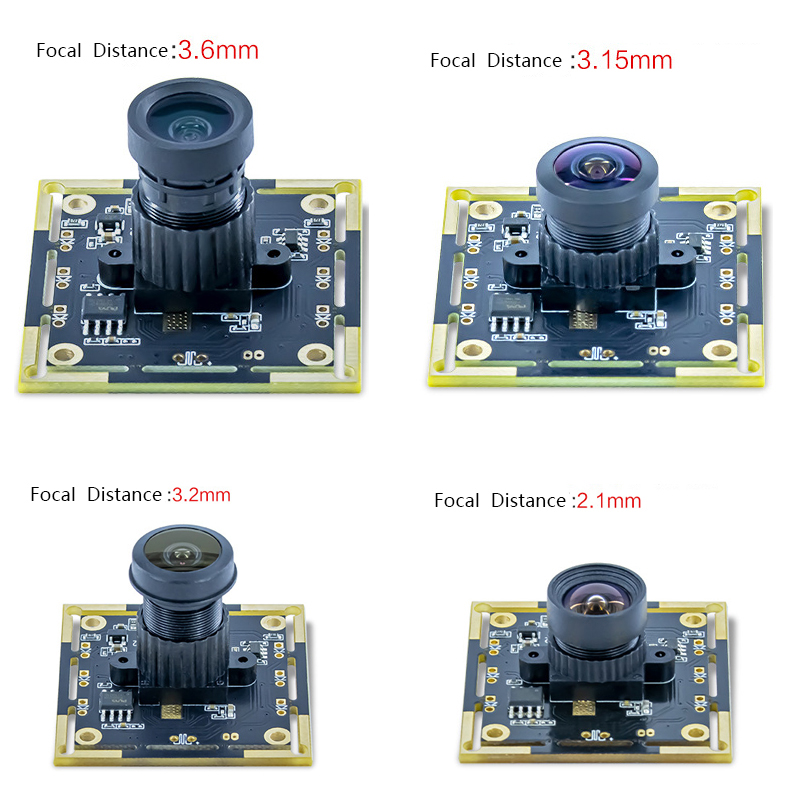

EFL	2.1 mm
FOV	100°
TV Distortion	<3%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
