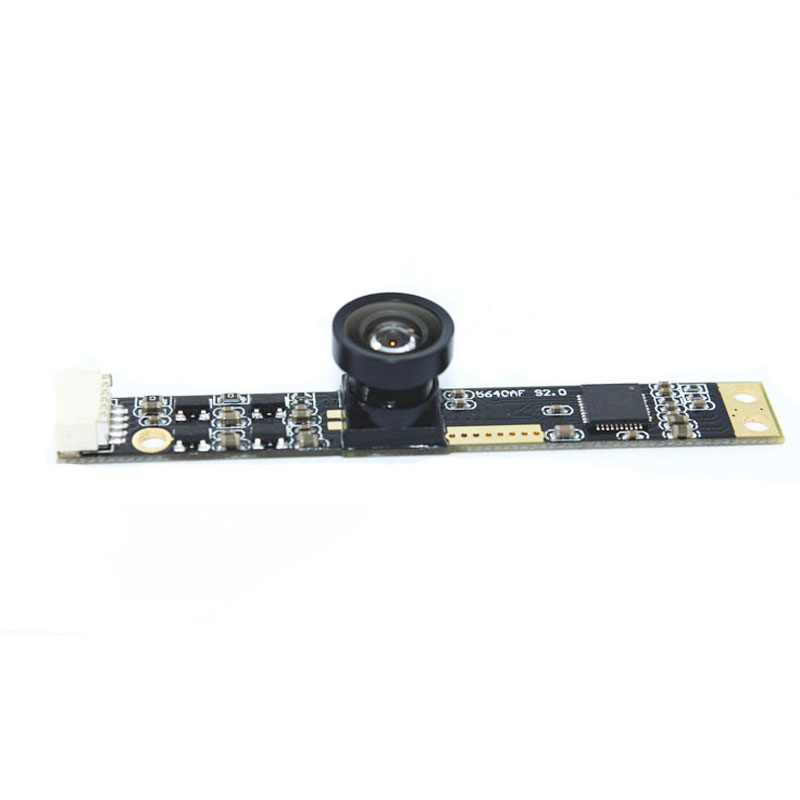

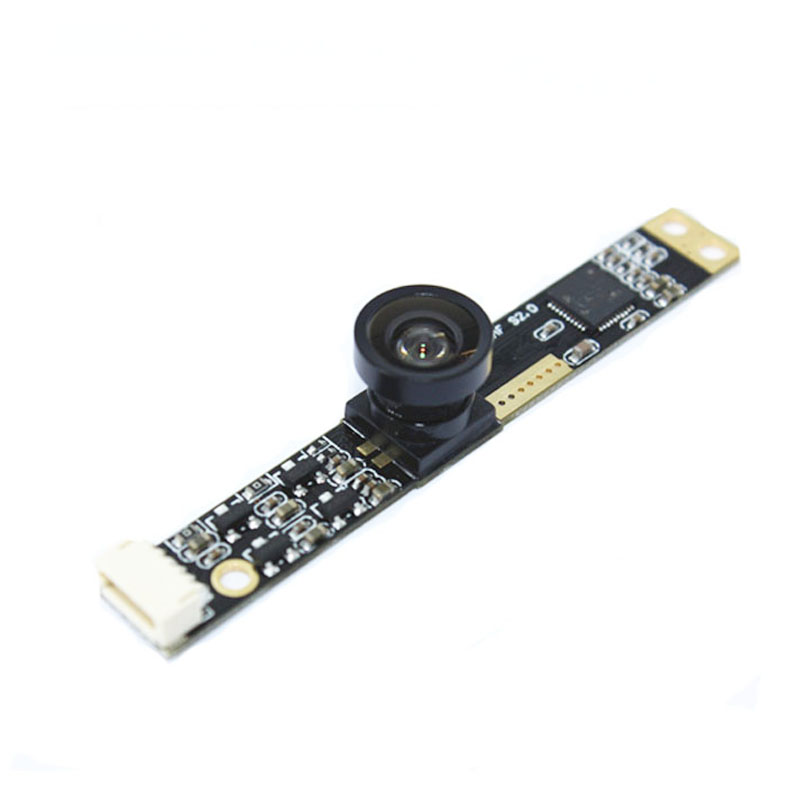

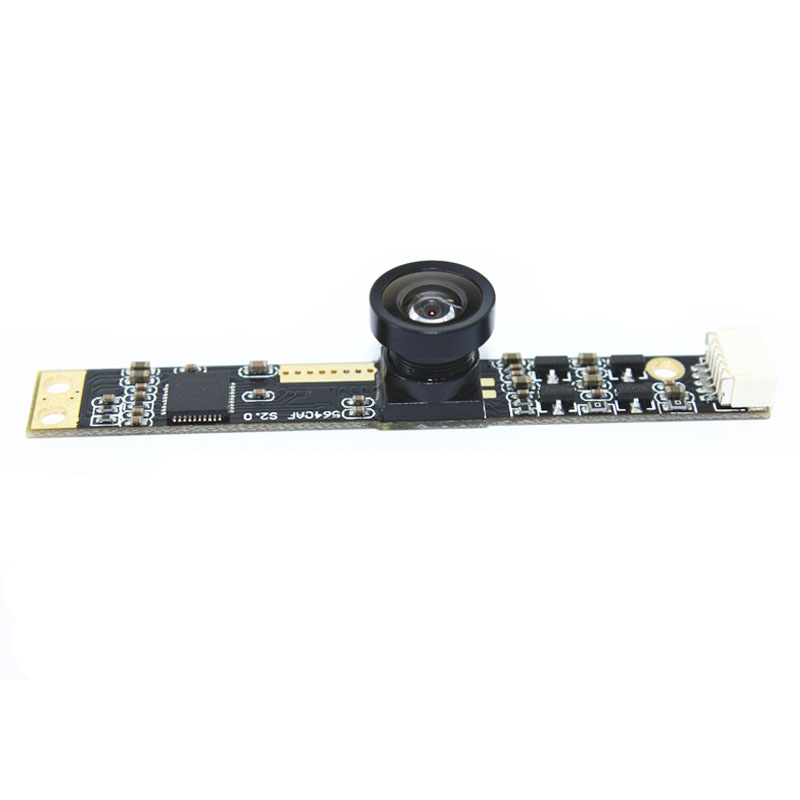

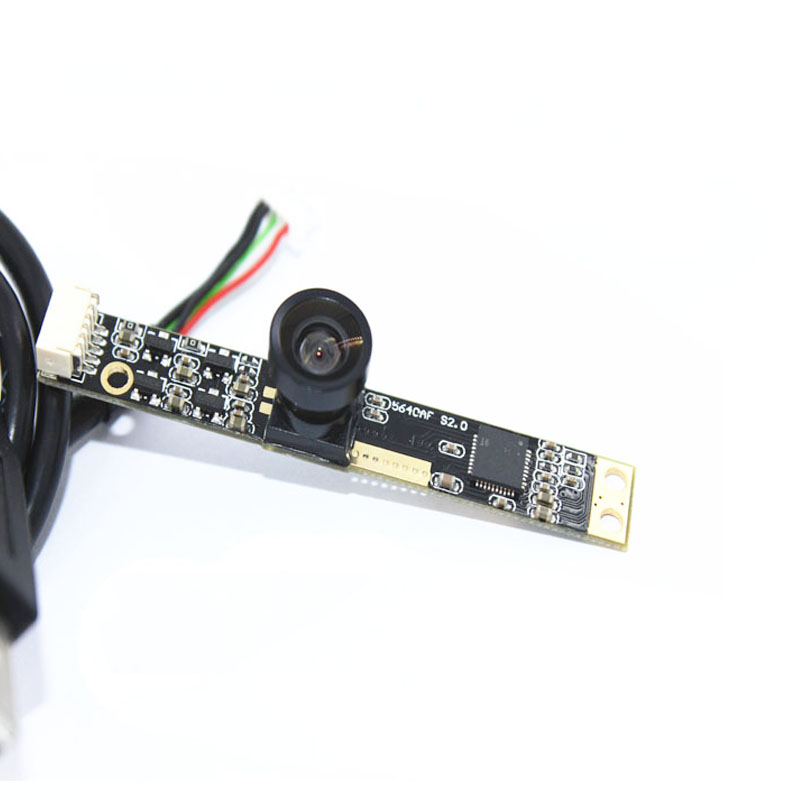

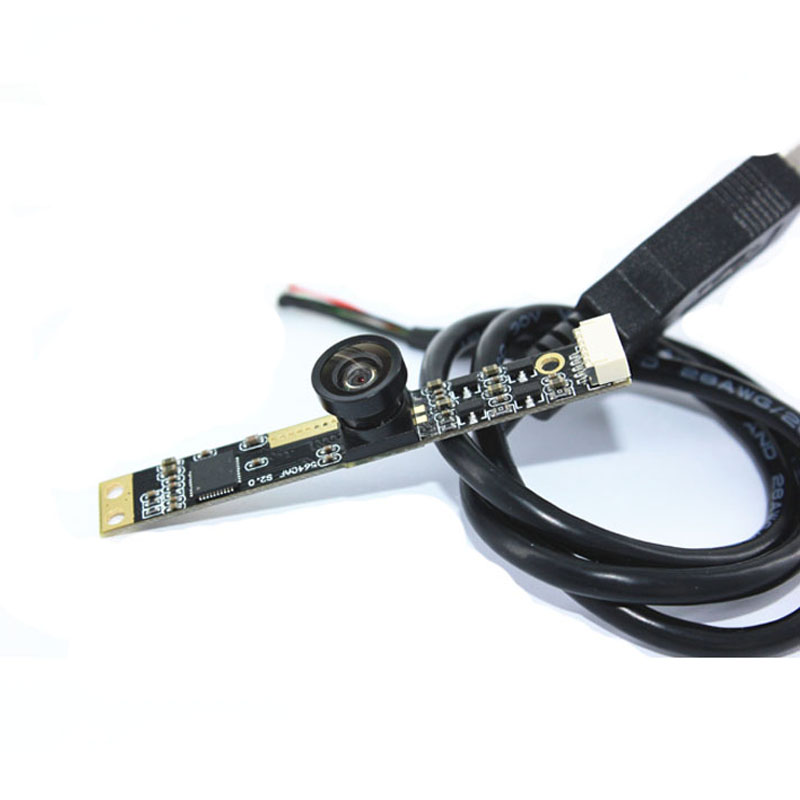

USB2.0 ov5640 sensor camera with 160 degree mini usb full hd resolution camera 4k Usb Raspberry Pi Camera Module

Product category:

USB Camera Board

SKU:

216876

Price:

$24.00

Description

Model No.	5640WA S2.0
Model Size	60mm × 8mm × 10.6mm
Temperature (Operation)	-20°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
Interface	USB 2.0
Power	USB bus power
Power consumption	1200 mW
Package	Anti-electrostatic tray
Operating system request	Windows 2000\Windows XP\Windows 7
Certifications	FCC and CE
Maximum resolution	2592*1944
Sensitivity	600mv /(lux-sec)
Pixel Size	1.4µm x1.4µm
Maximum Image Transfer Rate MJPEG	MJPEG 1024x768 30FPS / YUY2 1024x768 6FPS MJPEG 1280x720 30FPS / YUY2 1280x720 6FPS MJPEG 1280x960 30FPS / YUY2 1280x960 4FPS MJPEG 1600x1200 15FPS / YUY2 1600x1200 1FPS MJPEG 2048x1536 15FPS / YUY2 2048x1536 1FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 1FPS
S/N Ratio	36db
Dynamic Range	68db
Package	CSP,Bare Die
Lens Type
Lens Construction	3G2P+IR
F/No	2.8
EFL	1.66mm
BFL(Optical)	2.11mm
FOV	160
TV Distortion	<8.5%
Relative Illumination (Sensor)	70%
R Filter	650 ± 10nm
DSP Type	HBV5640
AGC/AEC/Whiter balance	Auto
Output Formats	USB suspend out
Fixed Pattern Noise	< 0.03% of V PEAK-TO-PEAK
Package	LQFN-40pin
