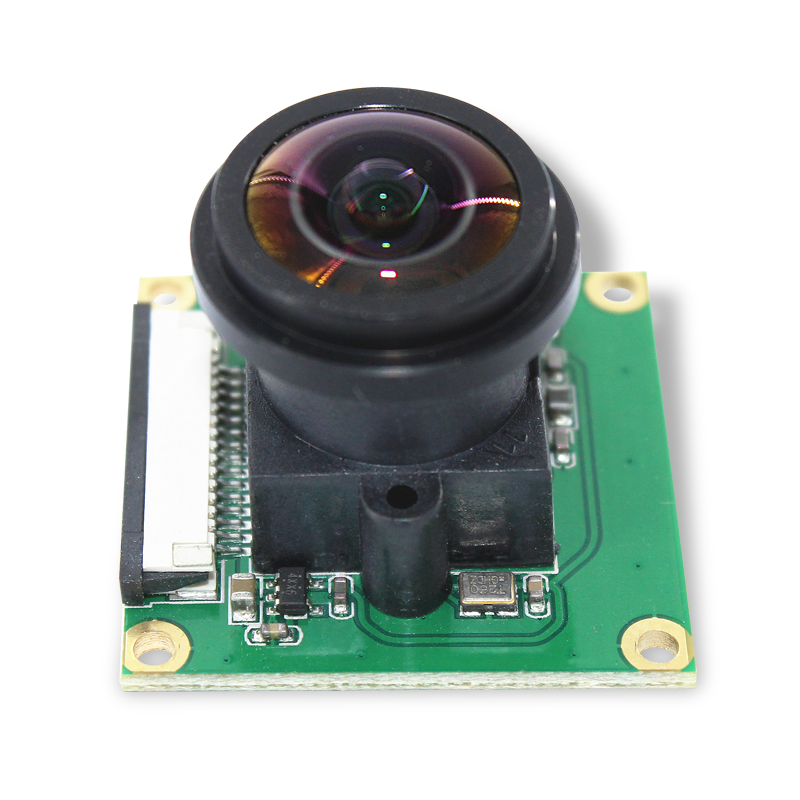

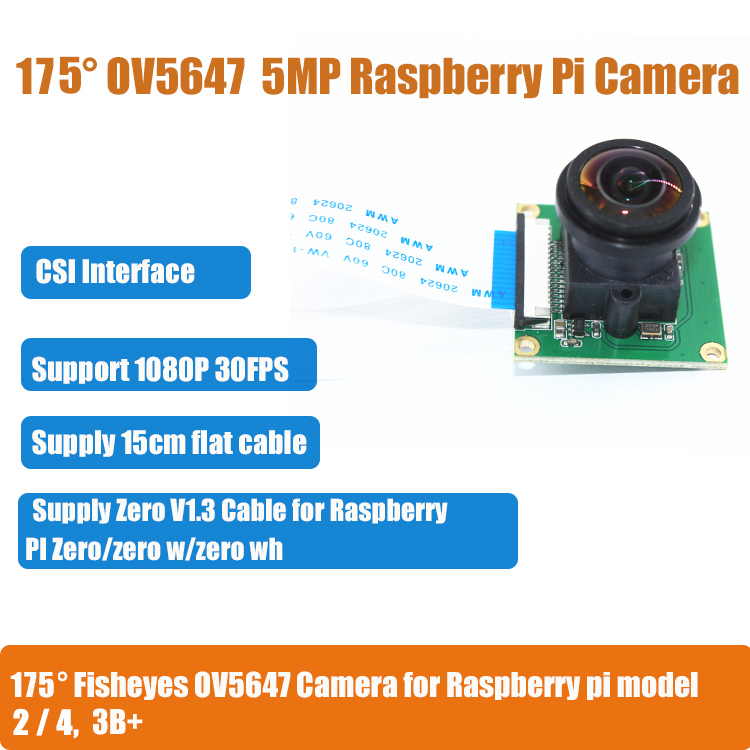

Raspberry Pi Camera Module OV5647 5MP Wide Angle Raspberry Pi 3/2 Camera Module

Product category:

Camera Board

SKU:

216687

Price:

$10.20

Quantity	Price
1 - 99	$10.20
100 - 299	$9.55
300 - Unlimited	$8.80

full product footer

Description

Product Specification

Module No.	HR3232-175 V11
Module Size	32mm × 32mm × 26mm
Temperature (Operation)	-20°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM to infinity
Resolution	800LW/PH (Center)
PCB printing ink	green
interface	15p-1.0 mip
Working power supply	3.3v（pin15）
Operating system	Raspberry Pi
Package	Anti-electrostatic tray
Certifications	FCC and CE
Sensor Type	OV5647 (1/4" )
Active Array Size	2592*1944
Sensitivity	600mV/Lux-sec
Pixel Size	1.4µm x1.4µm
Maximum Image Transfer Rate	15 fps for QSXGA;
Output formats	8/10bit RGB RAW output
S/N Ratio	34db
Dynamic Range	67db @8x gain
Package	CSP,Bare Die
Lens Type
EFL	3.6mm
DFOV	175°
IR Filter	no

Detail Images

♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens.

♦What operating system your cameras support?
Android, Windows and Linux System

♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.

♦Does the camera support OTG?
Most of our usb cameras support OTG function.

♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player

♦Can you supply the USB cable together with camera?
Yes, we supply 40cm/1M usb cable for sample testing. if you need longer usb cable, we can customize it for you. welcome to contact
us in advance.
