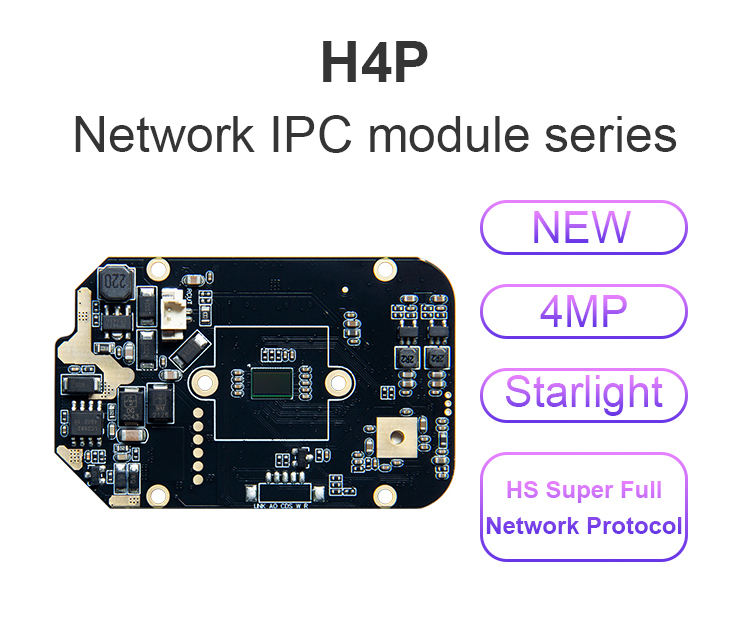

IP Camera 4MP Built-in POE Board HD Camera Module PCB Board Shenzhen Full Netcom Protocol Heat Resistant

Product category:

Camera Board

SKU:

200802

Price:

$7.50

Quantity	Price
1 - 999	$7.50
1000 - Unlimited	$7.00

Description

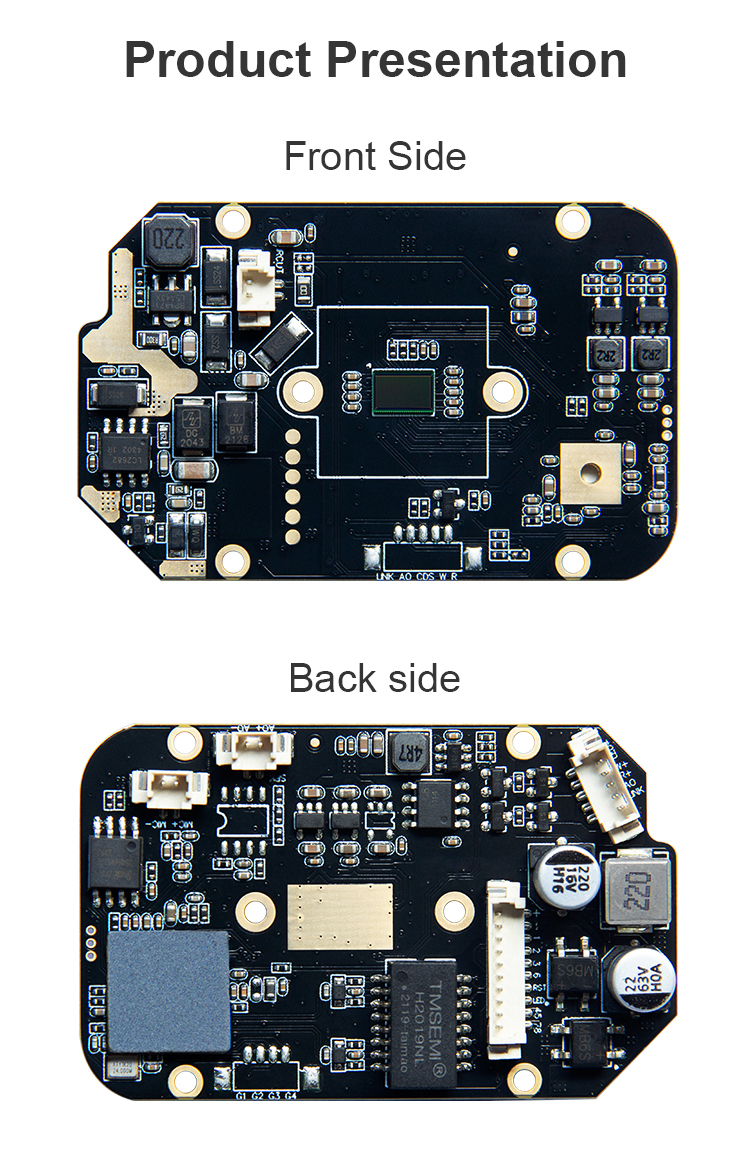

200802-IP-Camera-4mp-Built-in-POE-Board-HD-Camera-Module-PCB-Board-Heat-Resistant-3.jpg

200802-IP-Camera-4mp-Built-in-POE-Board-HD-Camera-Module-PCB-Board-Heat-Resistant-4.jpg

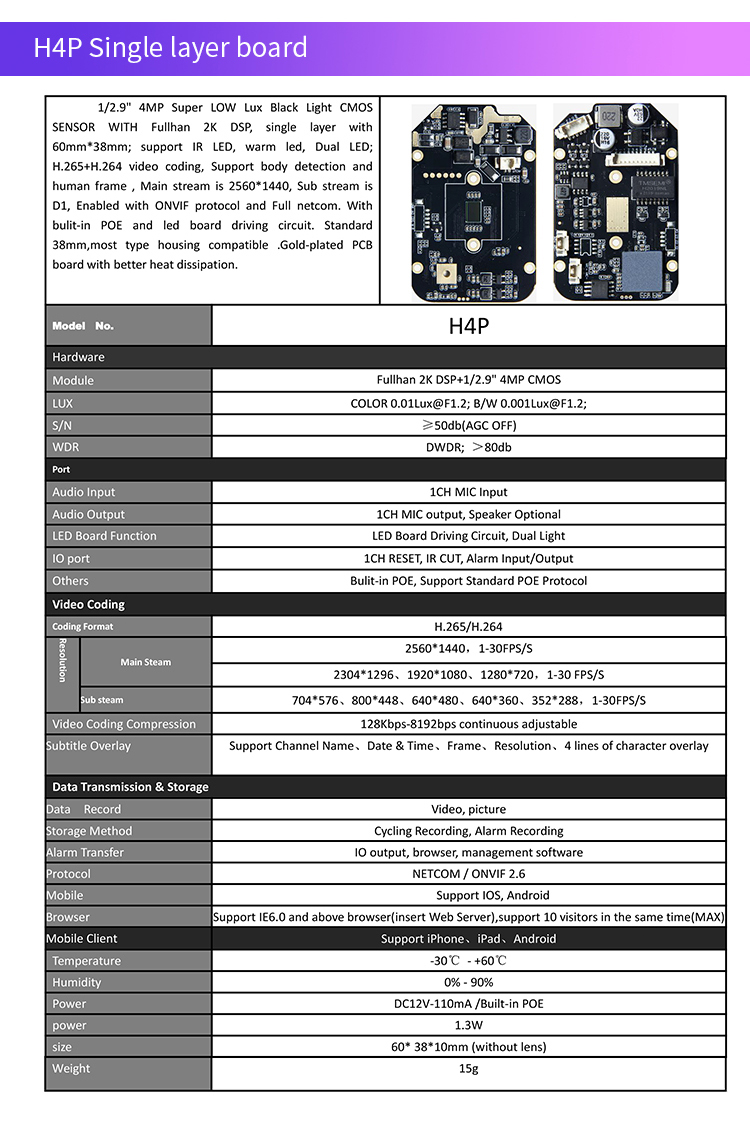

Model No.	H4P
Module	Fullhan 2K DSP+1/2.9" 4MP CMOS
LUX	COLOR 0.01Lux@F1.2; B/W 0.001Lux@F1.2;
S/N	≥50db(AGC OFF)
WDR	DWDR; ＞80db
Audio Input	1CH MIC Input
Audio Output	1CH MIC output, Speaker Optional

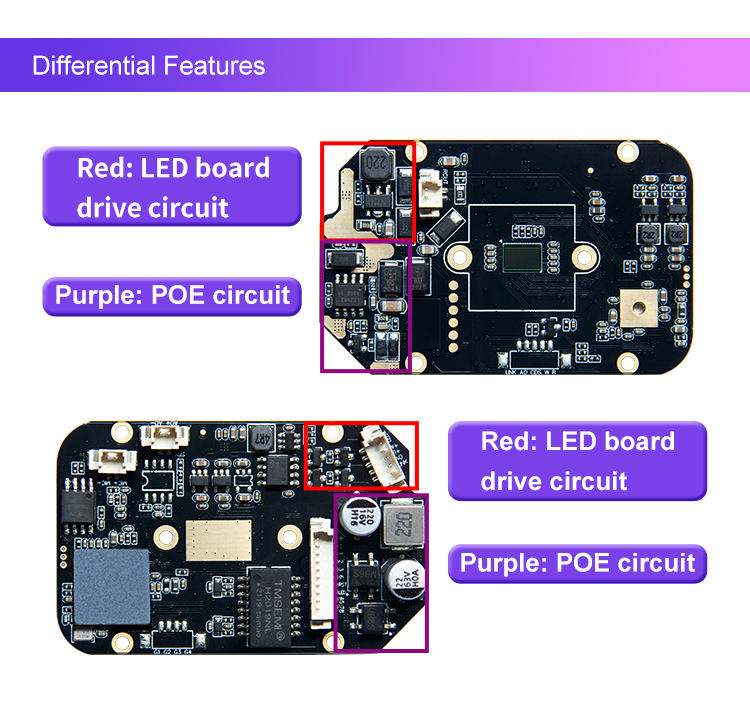

LED Board Function	LED Board Driving Circuit, Dual Light

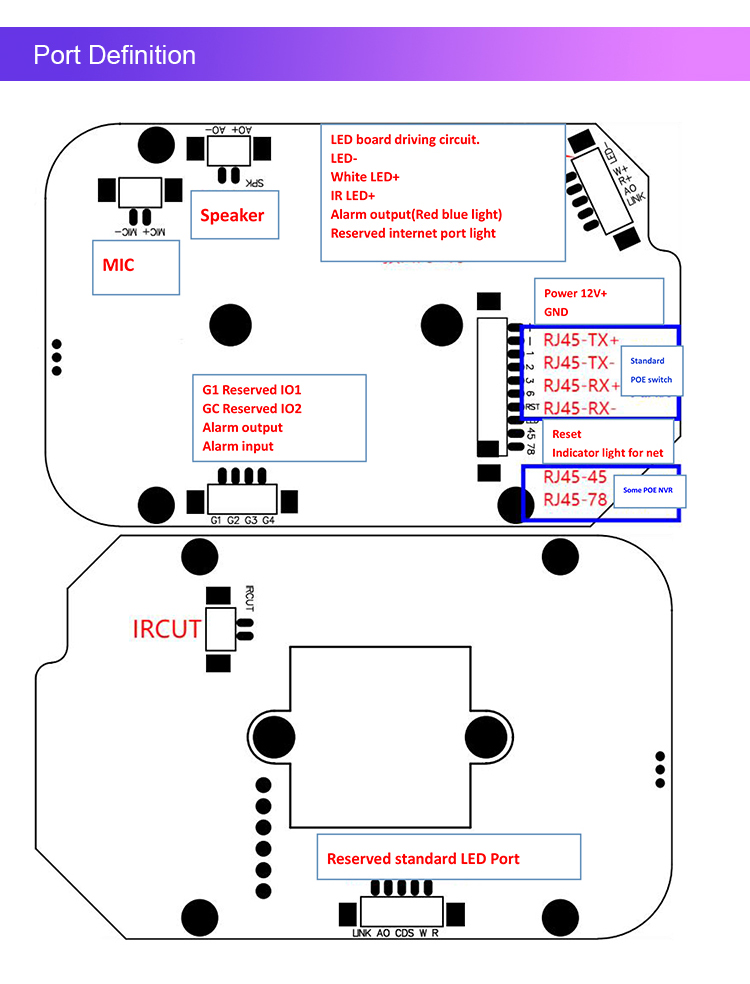

IO port	1CH RESET, IR CUT, Alarm Input/Output
Others	Bulit-in POE, Support Standard POE Protocol
Coding Format	H.265/H.264
Main Steam	25601440，1-30FPS/S 23041296、19201080、1280720，1-30 FPS/S
Sub steam	704576、800448、640480、640360、352*288，1-30FPS/S
Video Coding Compression	128Kbps-8192bps continuous adjustable
Subtitle Overlay	Support Channel Name、Date & Time、Frame、Resolution、4 lines of character overlay
Data Record	Video, picture
Storage Method	Cycling Recording, Alarm Recording
Alarm Transfer	IO output, browser, management software
Protocol	NETCOM / ONVIF 2.6
Mobile	Support IOS, Android
Browser	Support IE6.0 and above browser(insert Web Server),support 10 visitors in the same time(MAX)
Mobile Client	Support iPhone、iPad、Android
Temperature	-30℃ - +60℃
Humidity	0% - 90%
Power	DC12V-110mA /Built-in POE
power	1.3W
size	60* 38*10mm (without lens)
Weight	15g
