IMX577 12MP CMOS Sensor Mini USB HD Camera Module for Indoor Use

Product category:

USB Camera Board

SKU:

216772

Price:

$72.00

Description

Module No.	BM12M2408 V11

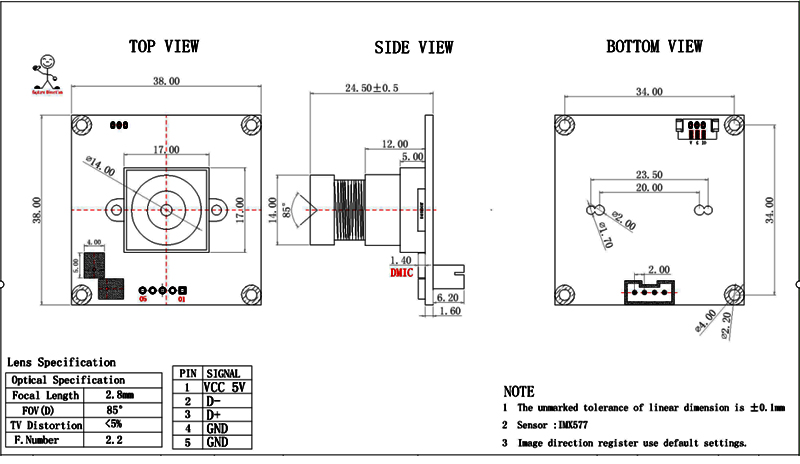

Module Size	38mm × 38mm × 24.50mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	950 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	IMX577 (1/2.3" )
Seneor Package	CSP,Bare Die
Maximum resolution	3840*3040
Sensitivity	50mV /（lux-sec）
Pixel Size	1.55µm x 1.55µm
Maximum Image Transfer Rate	MJPEG 1920x1080 120FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 1FPS MJPEG 3264x2160 30FPS / YUY2 3264x2160 1FPS MJPEG 3840x2880 20FPS / YUY2 3840x2880 1FPS MJPEG 3840x3040 20FPS / YUY2 3840x3040 1FPS
S/N Ratio	40db
Max Dynamic Range	83db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG

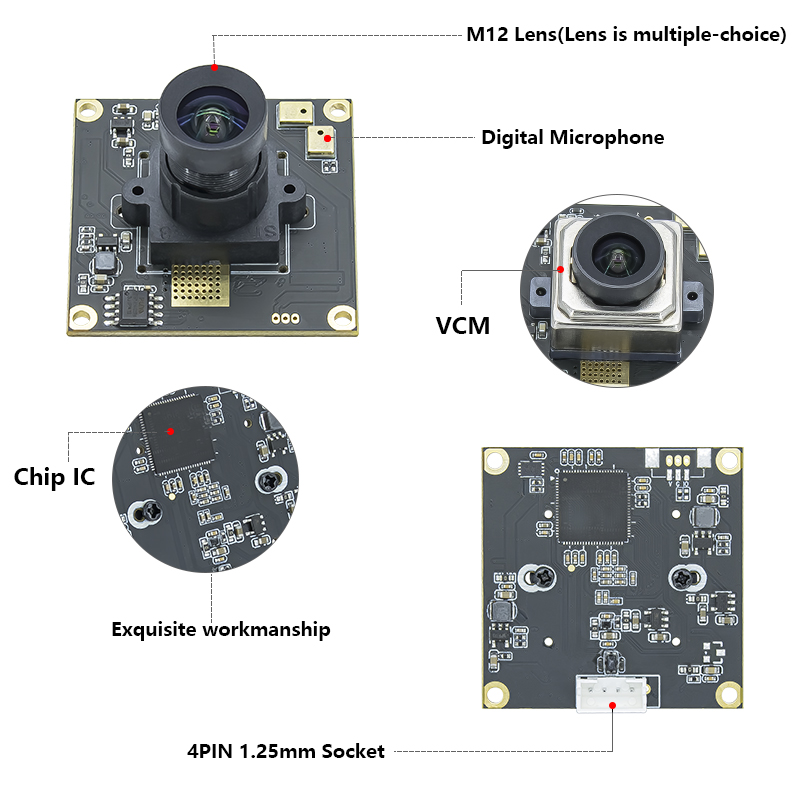

Microphone	Support
Lens Construction	6G
F/No	2.2
EFL	2.8 mm
FOV	85°
TV Distortion	<1.0%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

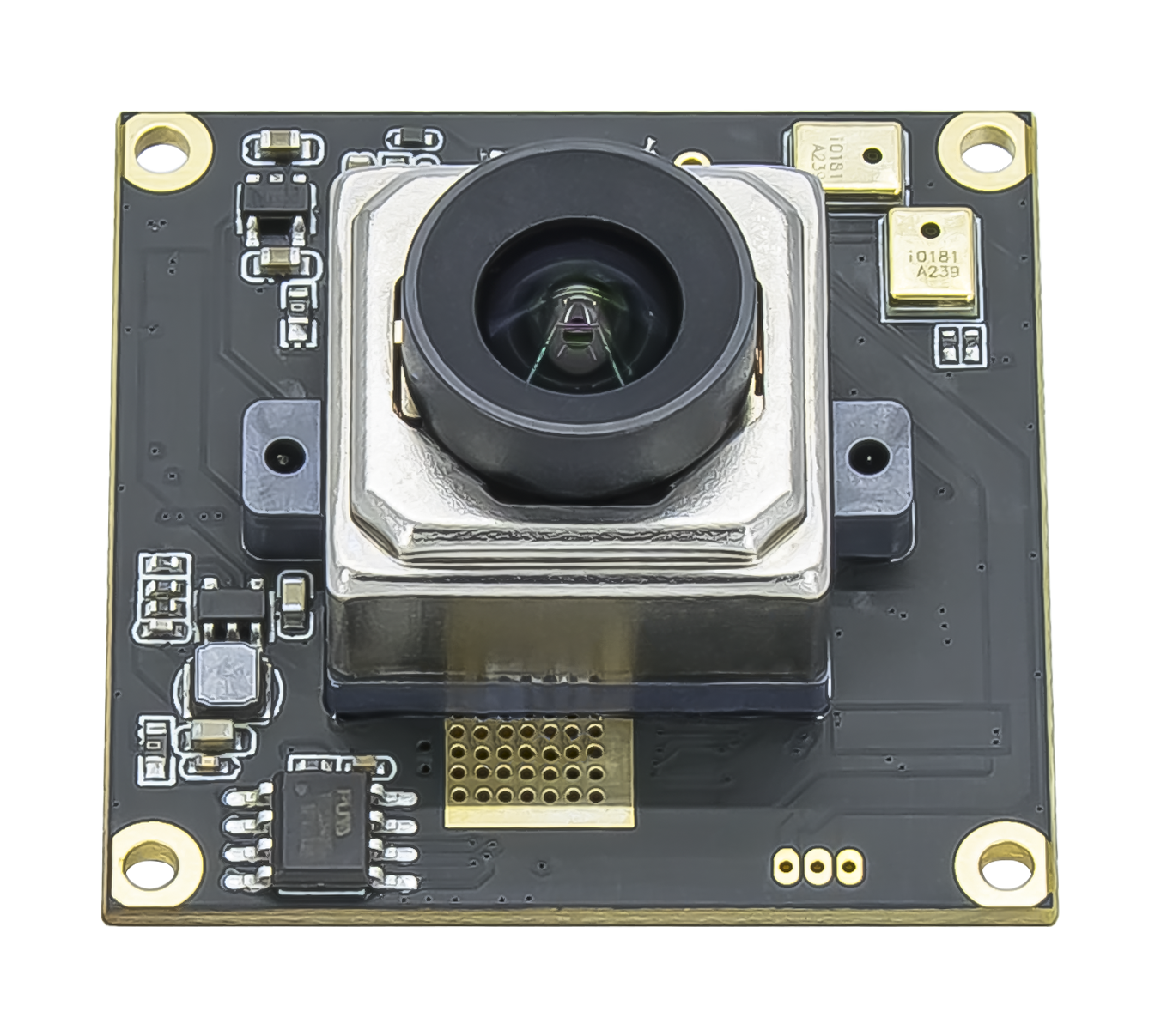

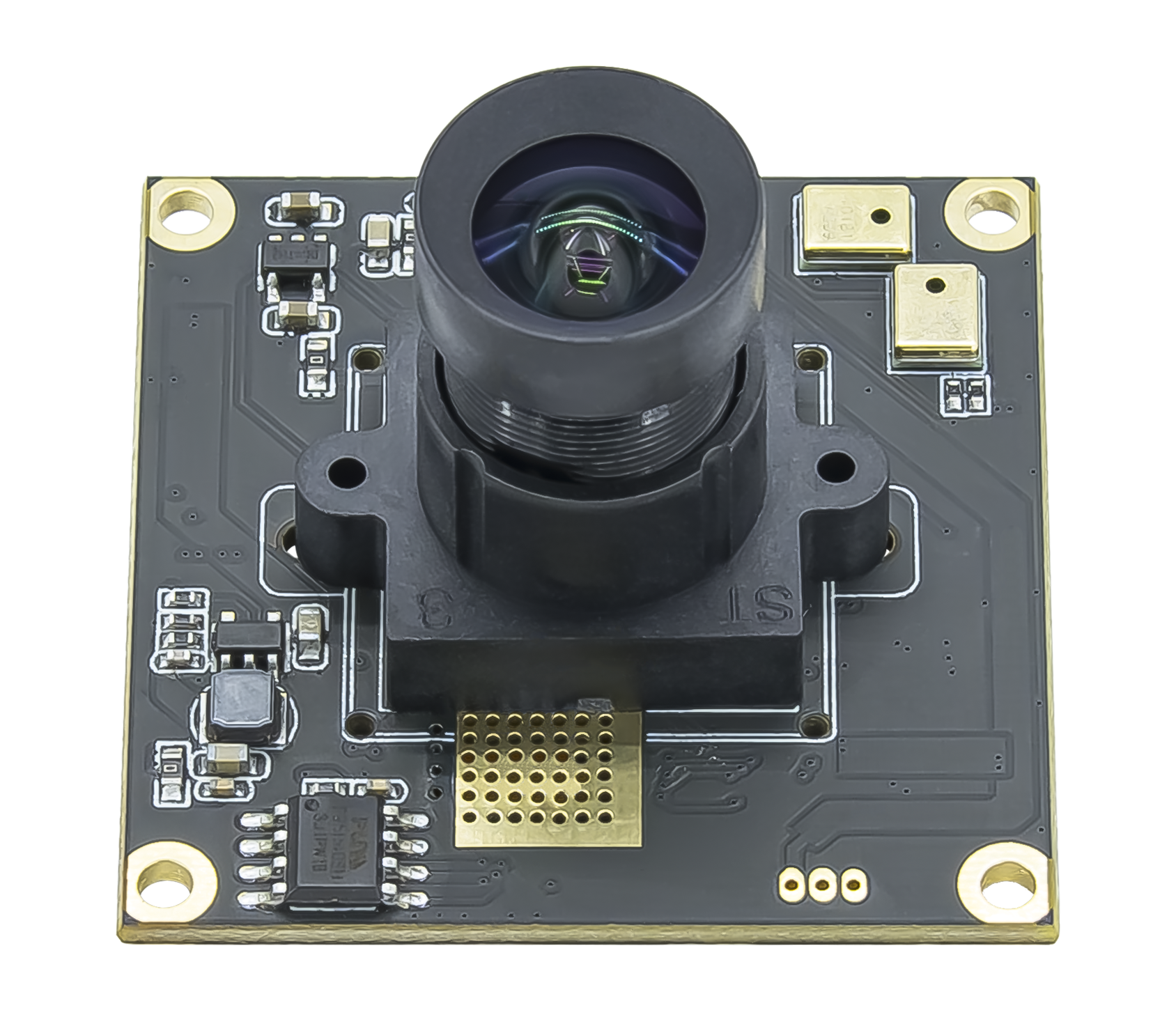

This IMX577 12mp camera module have two types: Fixed Focus and Auto Focus
