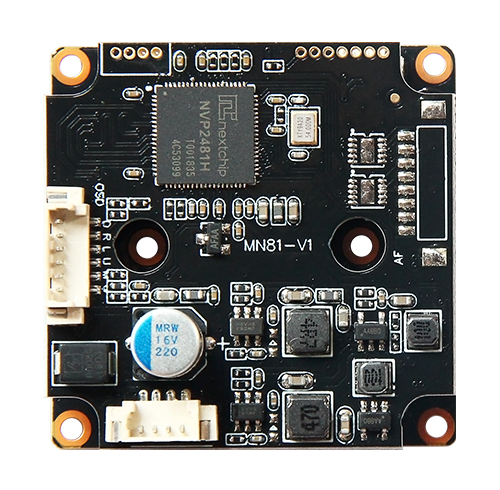

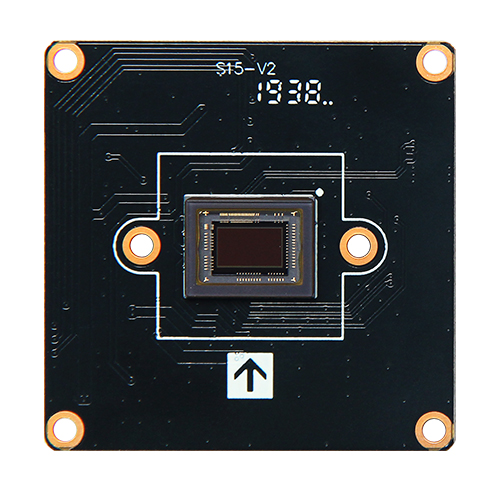

IMX415 1/2.8" CMOS 8MP AHD Camera PCB Security Camera Module NVP2481H High Quality Price Double Layer

Product category:

Camera Board

SKU:

200772

Price:

$13.30

Quantity	Price
1 - 999	$13.30
1000 - Unlimited	$12.80

Description

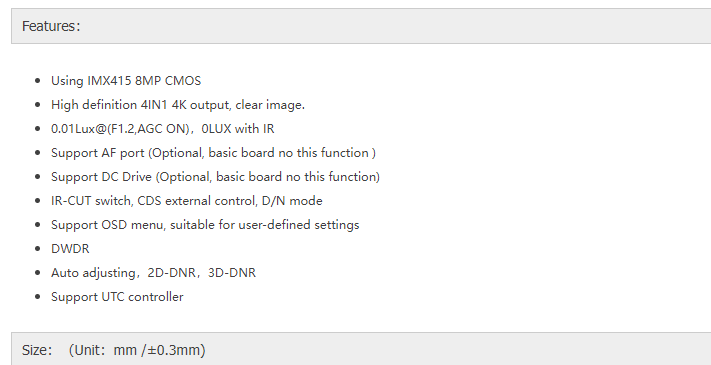

* Using IMX415 8MP CMOS * High definition 4IN1 4K output, clear image. * 0.01Lux@(F1.2,AGC ON)，0LUX with IR * Support AF port (Optional, basic board no this function ) * Support DC Drive (Optional, basic board no this function) * IR-CUT switch, CDS external control, D/N mode * Support OSD menu, suitable for user-defined settings * DWDR * Auto adjusting，2D-DNR，3D-DNR * Support UTC controller

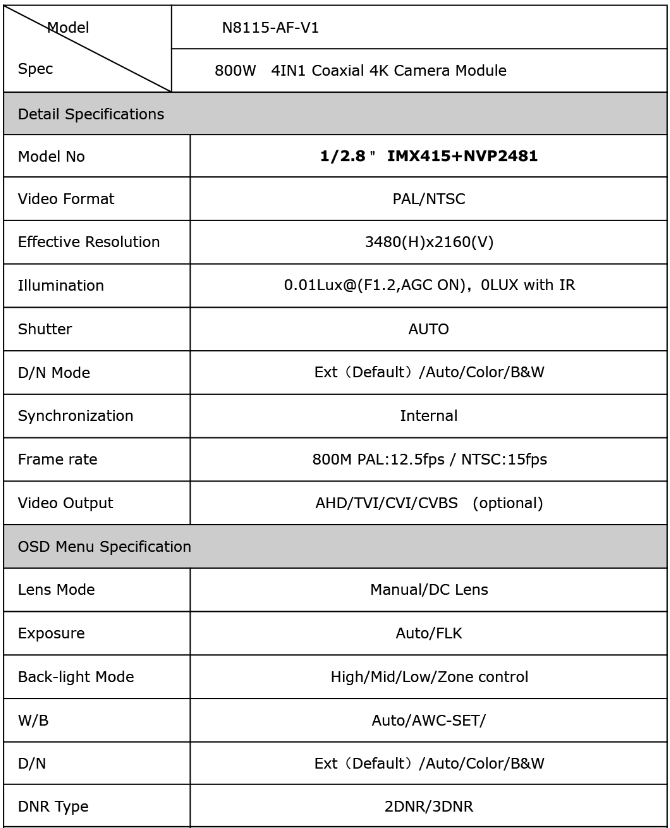

Model No.	1/2.8'' IMX415+NVP2481
Video Format	PAL/NTSC
Effective Resolution	3480(H)*2160(V)
Illumination	0.01Lux@(F1.2,AGC ON),0Lux with IR
Shutter	Auto
D/N Mode	Ext(Default)/Auto/Color/B&W
Synchronization	Internal
Frame Rate	800M PAL: 12.5fps/ NTSC: 15fps

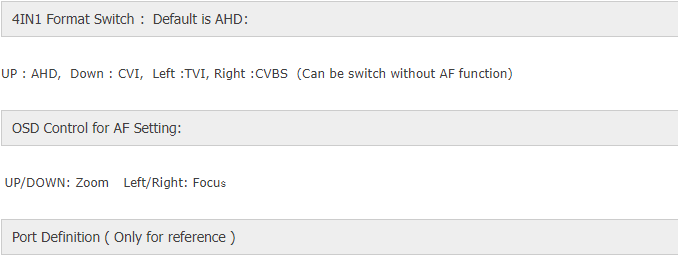

Video Output	AHD/TVI/CVI/CVBS(optional)
Lenses Mode	Manual/DC Lenses
Exposure	Auto/FLK
Black Light Mode	High/Mid/Low/Zone control
W/B	Auto/AWC-SET

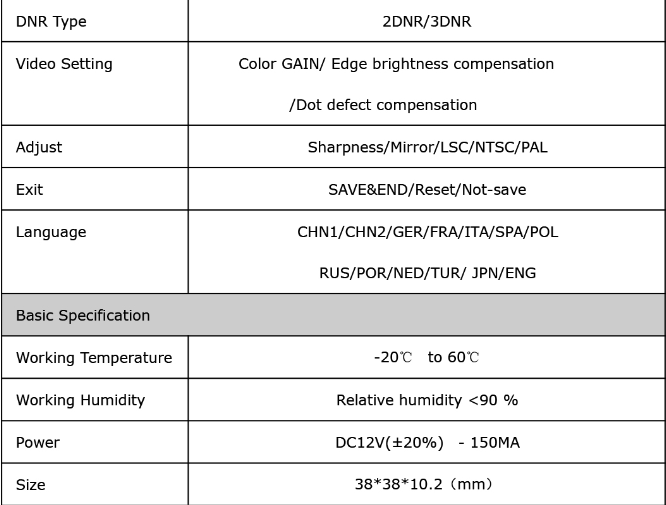

DNR Type	2DNR/3DNR
Video Setting	Color GAIN/Edge brightness compensation/Dot defect compensation
Adjust	Sharpness/Mirror/LSC/NTSC/PAL
Exit	SAVED&END/RESET/NOT SAVE
Language	CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR/JPN/ENG
Working Temperature	-20℃ to 60℃
Working Humidity	Relative humidity < 90%
Power	DC12V(±20%)-150mA

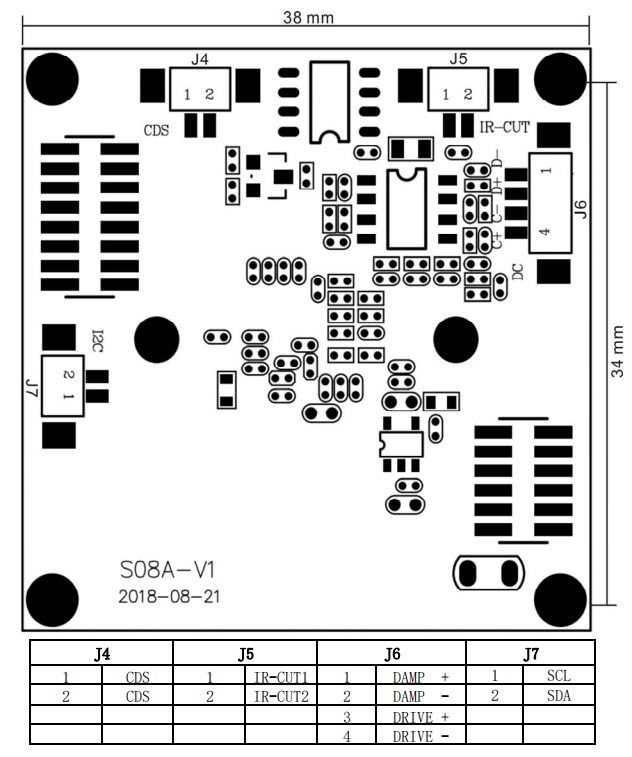

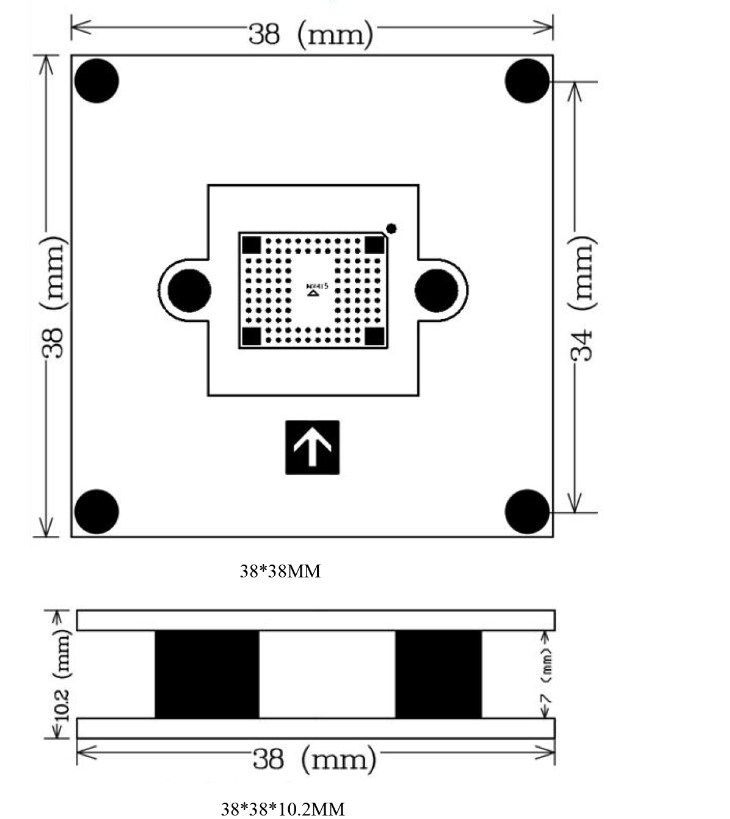

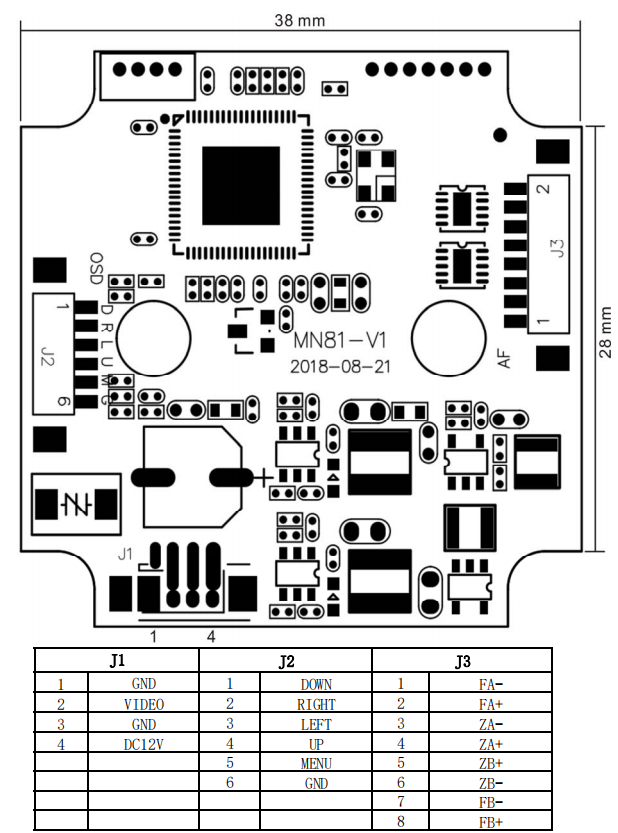

Size	383510.2(mm)
