Fpc Flexible 2592X1944-Mjpeg 5Mp OV5693 Uvc Cmos Usb Camera Module

Product category:

USB Camera Board

SKU:

217022

Price:

$26.40

Quantity	Price
1 - 99	$26.40
100 - 499	$23.00
500 - Unlimited	$20.90

full product footer

Description

Product Description

Product name	5 MP 2K soft and hard board docking flexible structure, device embedded built-in camera module
Module No.	BM5M2118 V11

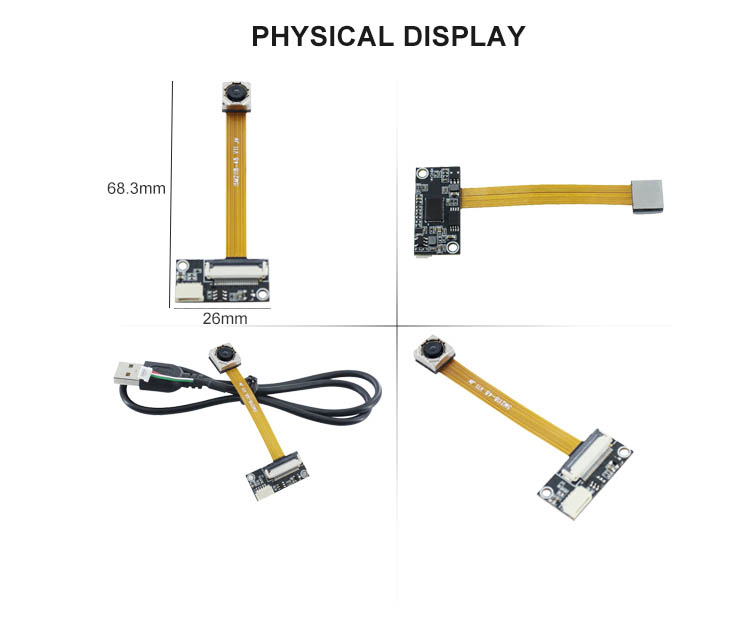

Module Size	68.3mm × 26mm × 4.80mm±0.2MM
Features	1. Flexible and flexible structure of soft and hard board, small volume 2. Fixed focus can be selected 3. The length of the FPC part can be customized 4. Several specifications of the lens are optional 5. 1466-upgrade model, focusing accuracy and better effect 6. 30 frames in 2592x1944-mjpeg format
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Auto
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	500 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV5693 (1/4" )
Seneor Package	PLCC,Bare Die
Maximum resolution	2592*1944
Sensitivity	780mV /(lux-sec)
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS
		S/N Ratio	36db
		Max Dynamic Range	71.6db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	NO
		Lens Construction	5P
		F/No	2.2
EFL	2.6 mm
FOV	110°
TV Distortion	<1.0%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

Effect Picture
