fixed focus CMOS GC0308 USB camera module Personnel statistics function

Product category:

USB Camera Board

SKU:

216689

Price:

$12.00

Quantity	Price
1 - 499	$12.00
500 - 999	$10.35
1000 - Unlimited	$8.80

full product footer

Description

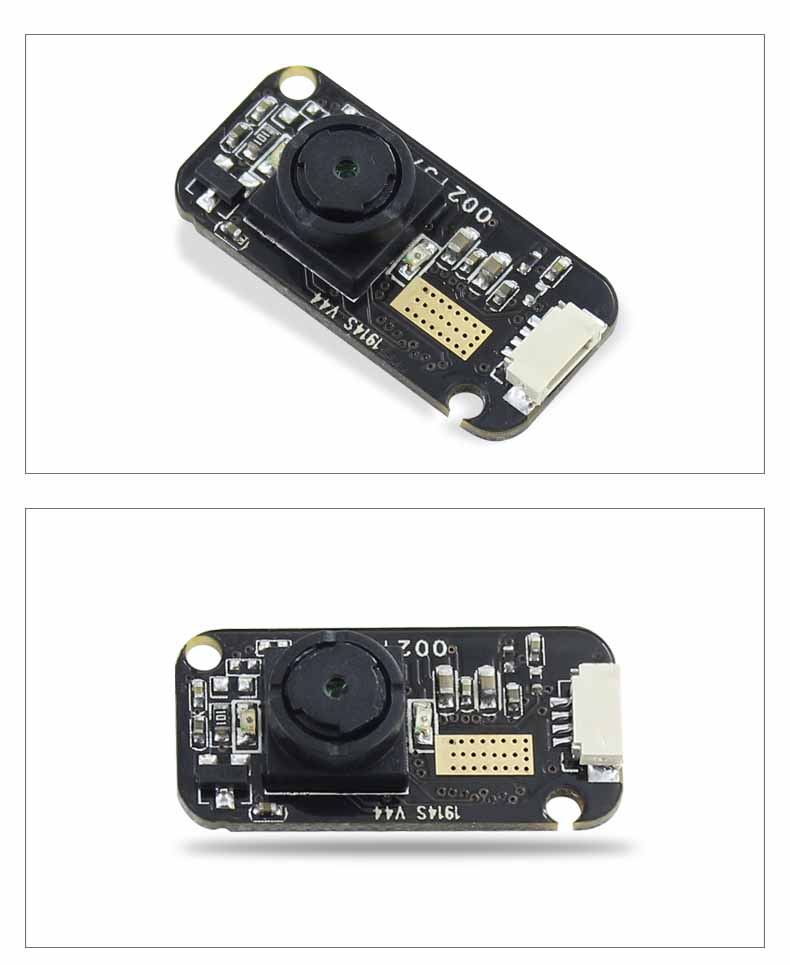

fixed focus USB2.0 GC0308 camera module with 640*480 30fps

Model No.	BM1914S V44

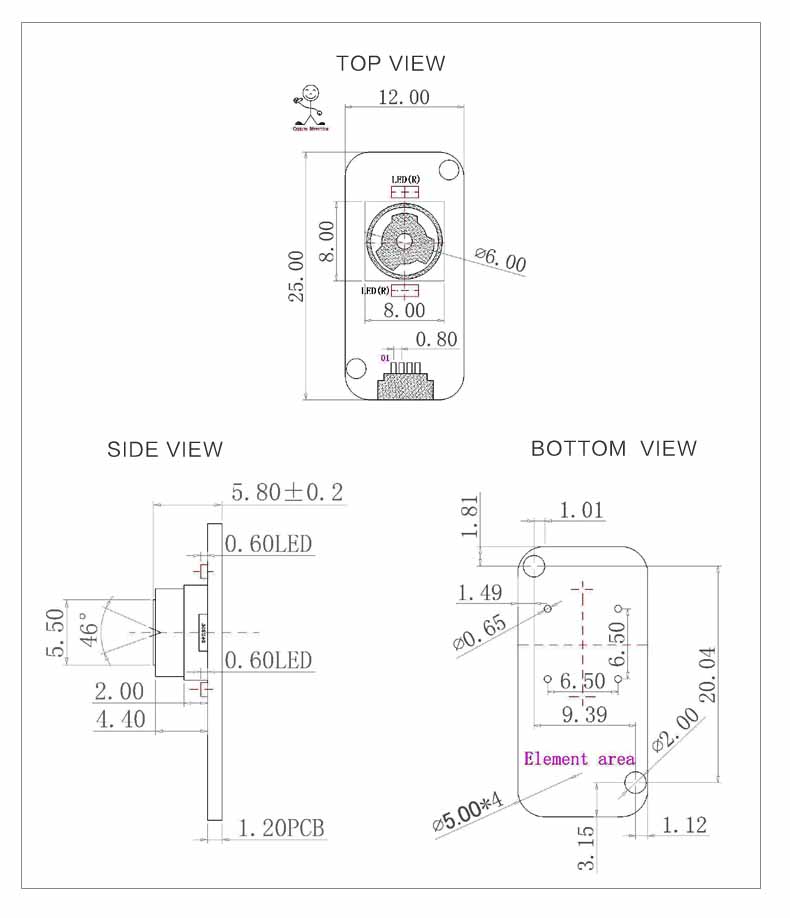

Model Size	25mm × 12mm × 6mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power supply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	600 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	GC0308 (1/6.5" )
Seneor Package	CSP,Bare Die
Maximum resolution	640*480
Sensitivity	2.5V /(lux-sec)
Pixel Size	3.4μm x 3.4μm
Maximum Image Transfer Rate	MJPEG 160x120 30FPS / YUY2 160x120 30FPS MJPEG 320x240 128FPS / YUY2 320x240 128FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS
S/N Ratio	42dB
Max Dynamic Range	58dB
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4P
F/No	2.8
EFL	3,4m
FOV	50
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	NO IR
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
USB cable	40CM 1M 2M 3M
1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding

♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.

♦Does the camera support OTG?
Most of our usb cameras support OTG function.

♦Which software your usb camera module support?

Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer,

ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player

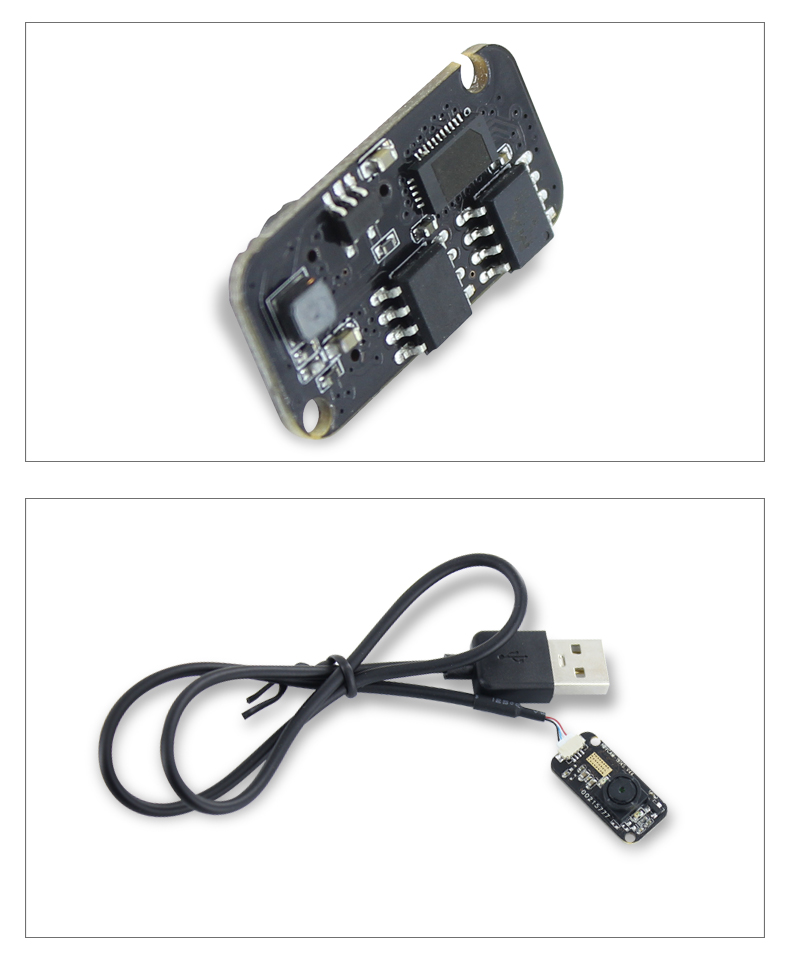

♦Can you supply the USB cable together with camera?

Yes, we supply 40cm/1M usb cable for sample testing. if you need longer usb cable, we can customize it for you. welcome to contact us in advance.
