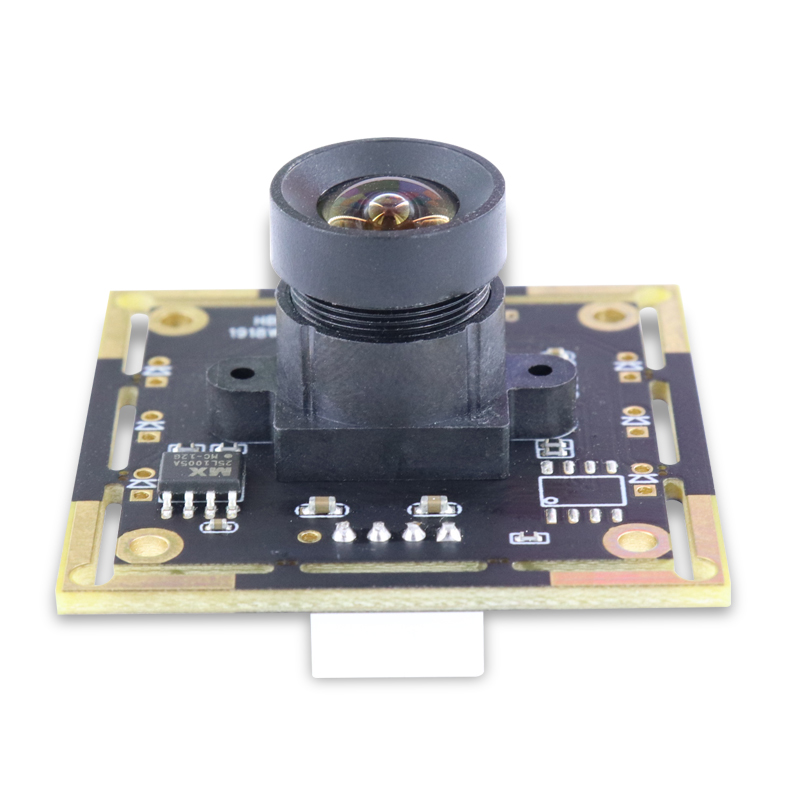

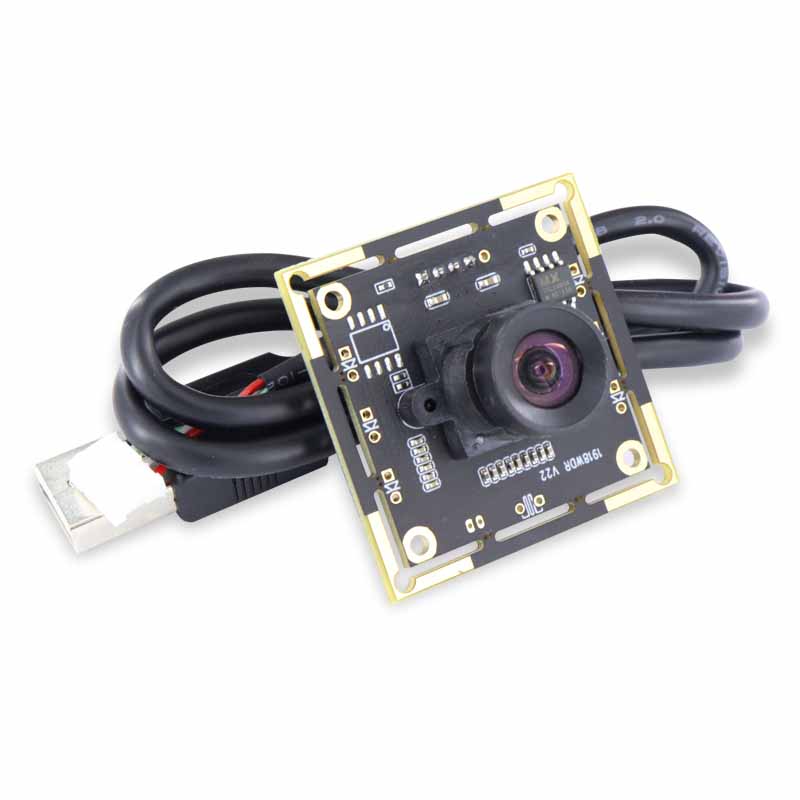

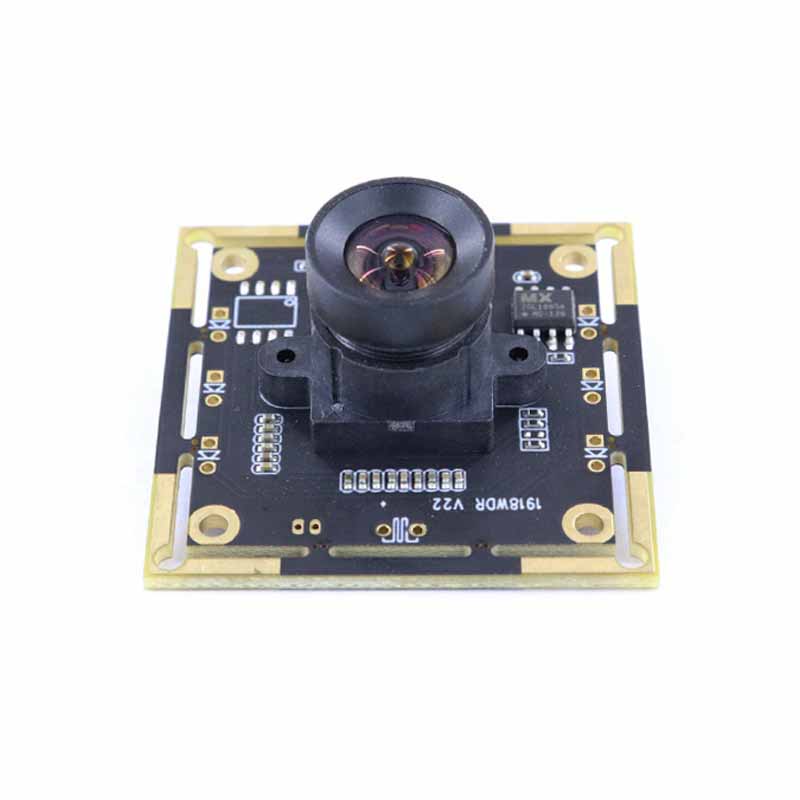

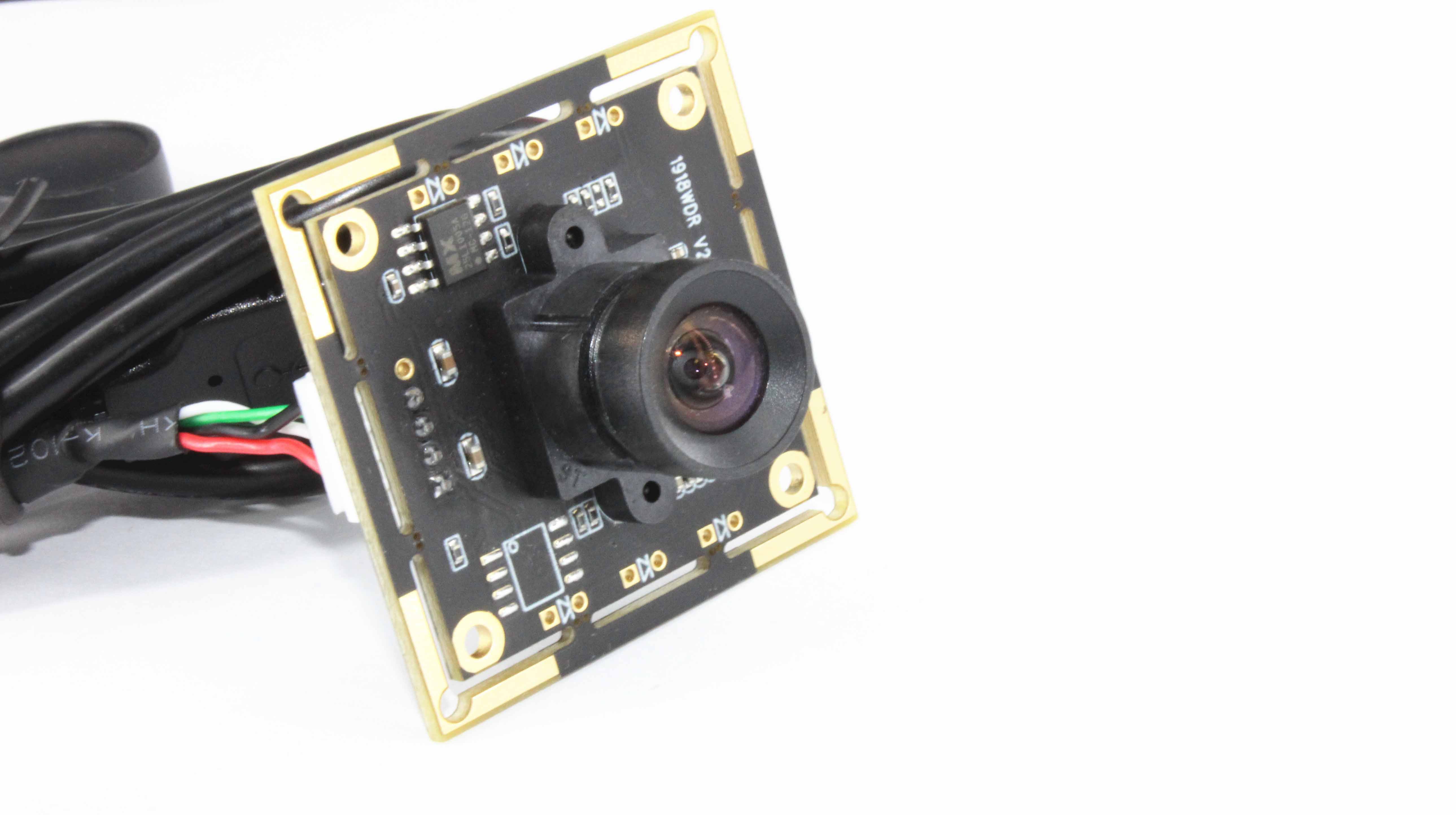

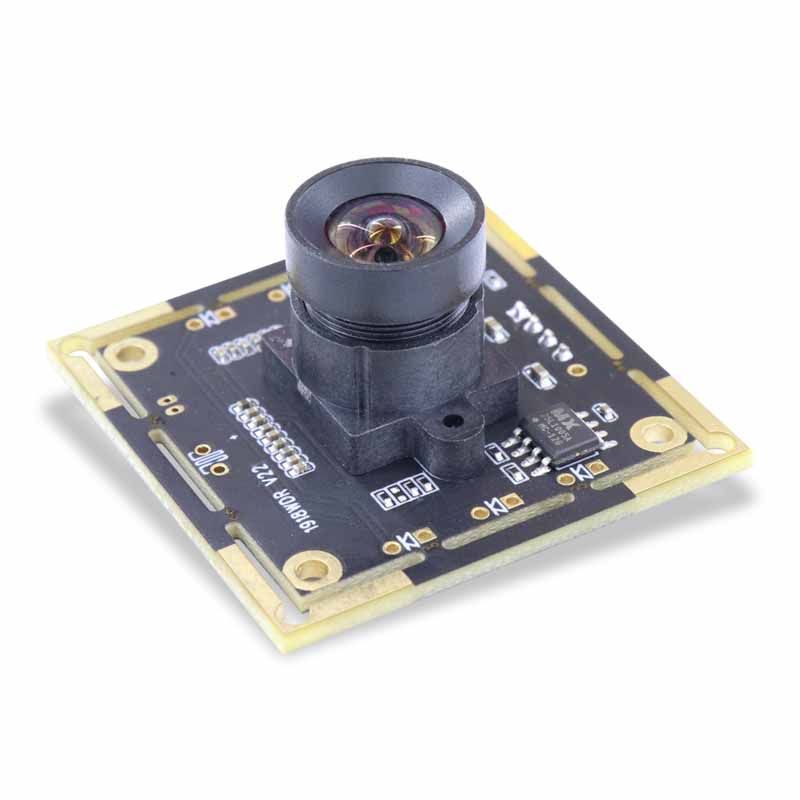

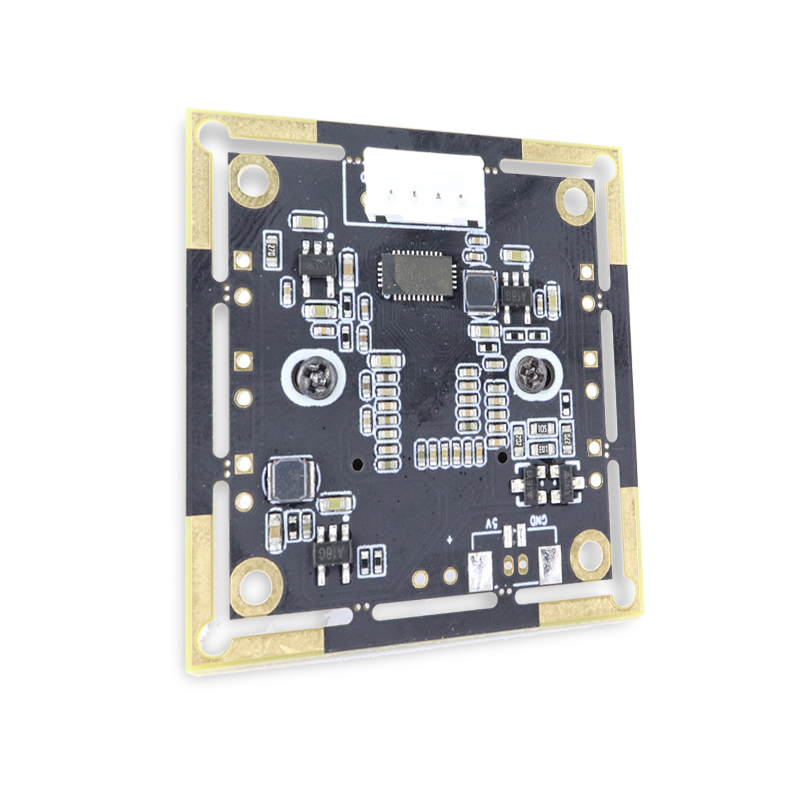

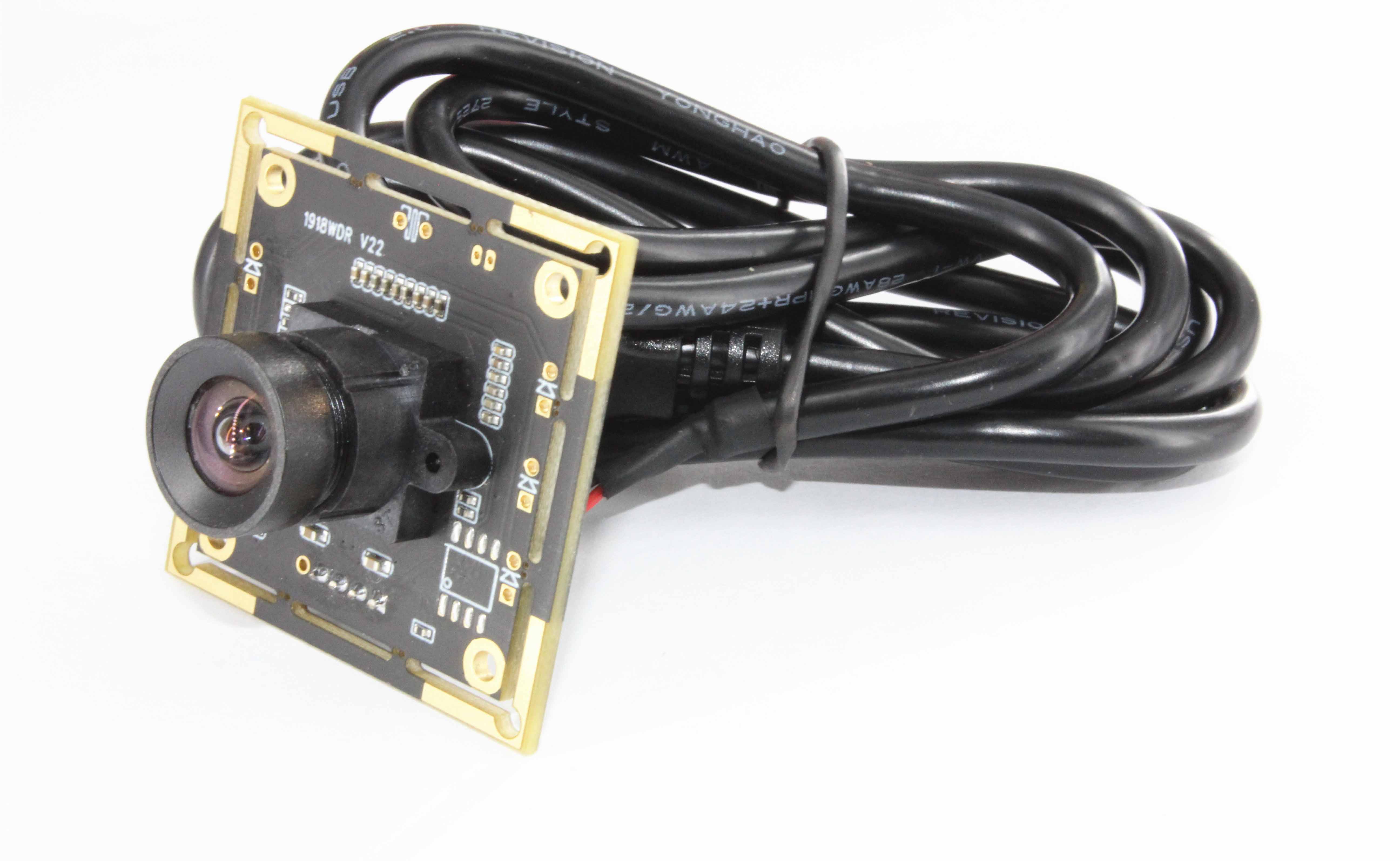

Customized 2MP Wide Dynamic USB Camera Module Support Backlight Shooting

Product category:

USB Camera Board

SKU:

216683

Price:

$32.40

Description

Product Name	Wide Dynamic USB Camera Module
Module No	BM1918WDR V22

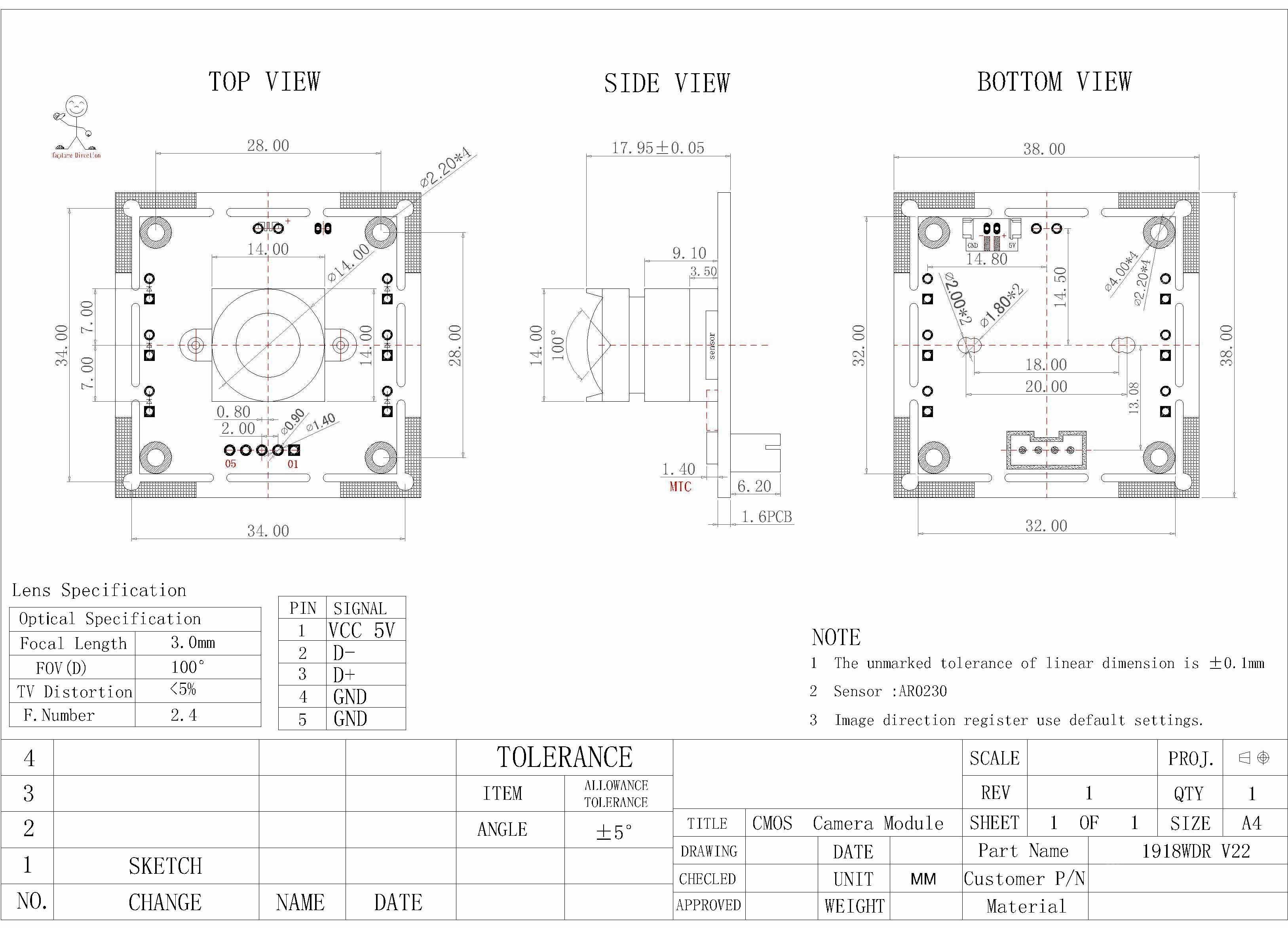

Module Size	38mm × 38mm × 17.95mm±0.5MM
Temperature (Operation)	-20°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	940mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	AR0230 (1/2.7" )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	4.0V /（lux-sec)
Pixel Size	3.0µm x 3.0µm
Maximum Image Transfer Rate	MJPEG 800x600 30FPS / YUY2 800x600 20FPS MJPEG 960x720 30FPS / YUY2 960x720 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x960 30FPS / YUY2 1280x960 5FPS MJPEG 1280x1024 30FPS / YUY2 1280x1024 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
S/N Ratio	41 db
Max Dynamic Range	105 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	2G2P
F/No	2.4
EFL	3.0 mm
FOV	100°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
