8MP UVC HD IMX317 CMOS Mini 3840*2160 30fps USB2.0 4K Camera module for Face Recognition

Product category:

USB Camera Board

SKU:

217038

Price:

$68.40

Description

Module No.	BM4K1928 V11
Module Size	38mm × 38mm × 24.4mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	800LW/PH (Center)
PCB printing ink	black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	940mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	IMX317 (1/2.5" )
Seneor Package	CSP,Bare Die
Maximum resolution	3840*2160
Sensitivity	760mv /（lux-sec）
Pixel Size	1.62µm x 1.62µm
S/N Ratio	44 db
Max Dynamic Range	82 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	4G
F/No	2.2
EFL	2.1mm
FOV	85°
TV Distortion	<1%
Maximum Image Transfer Rate	MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 30FPS / YUY2 2048x1536 3FPS MJPEG 2688x1512 30FPS / YUY2 2688x1512 2FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS MJPEG 3840x2160 30FPS / YUY23840x2160 1FPS

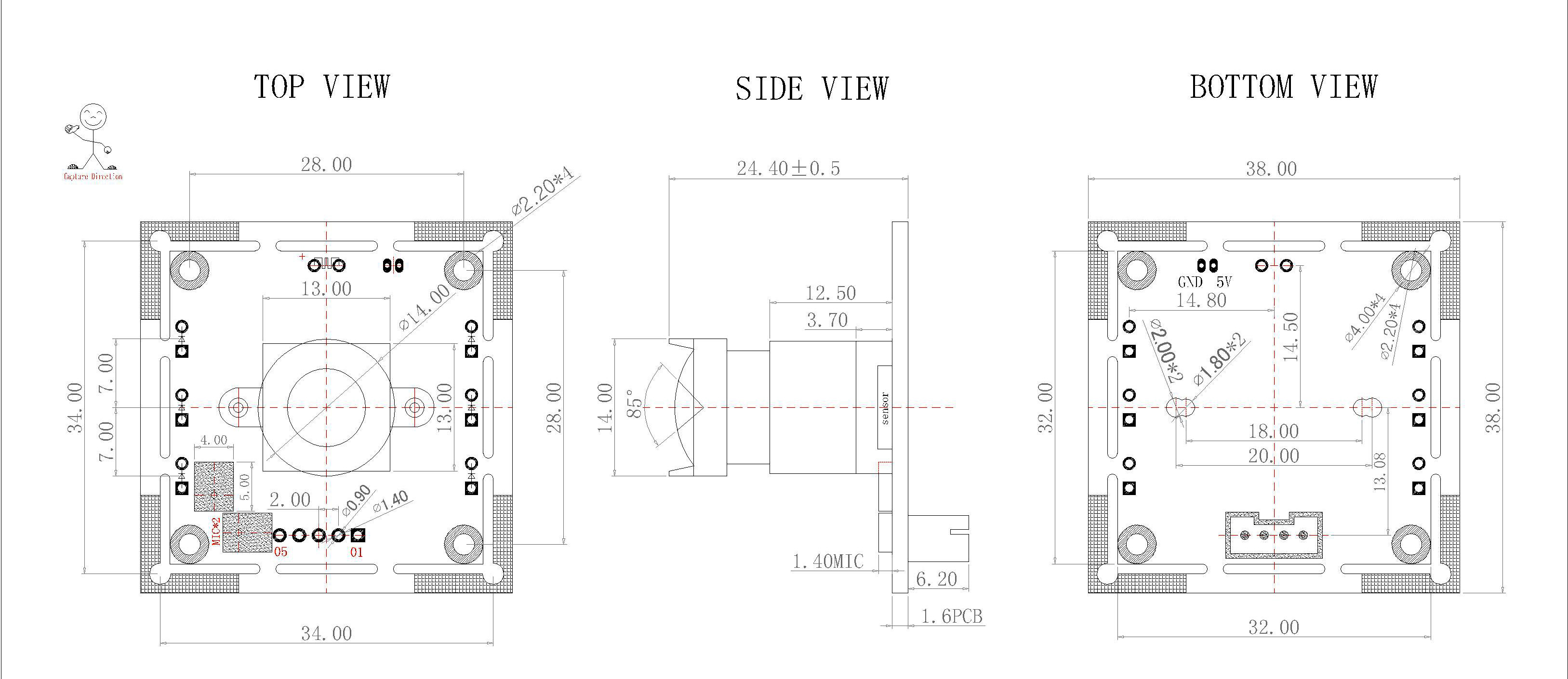

product drawing
