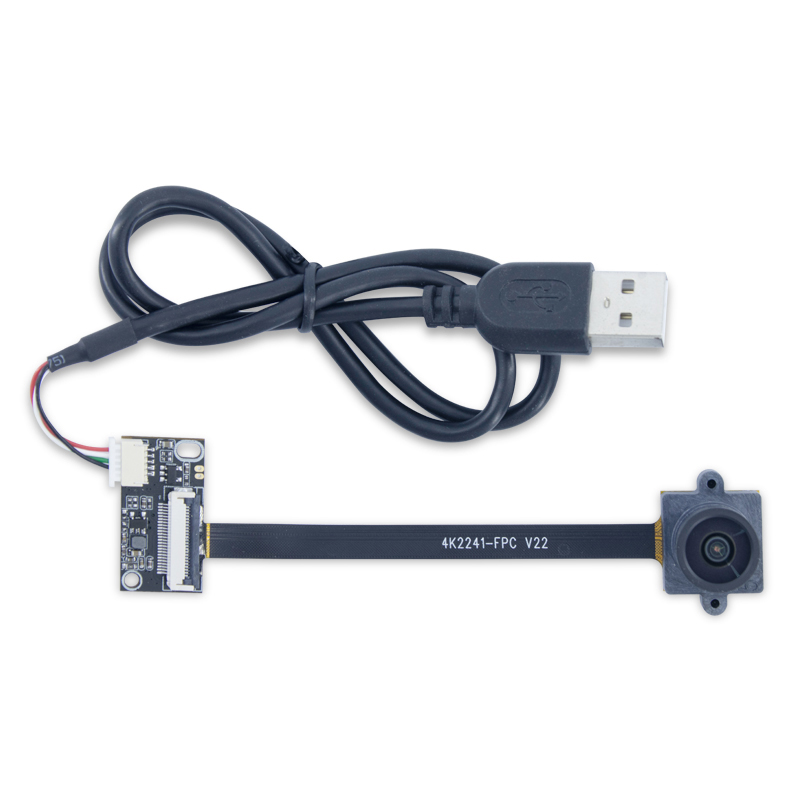

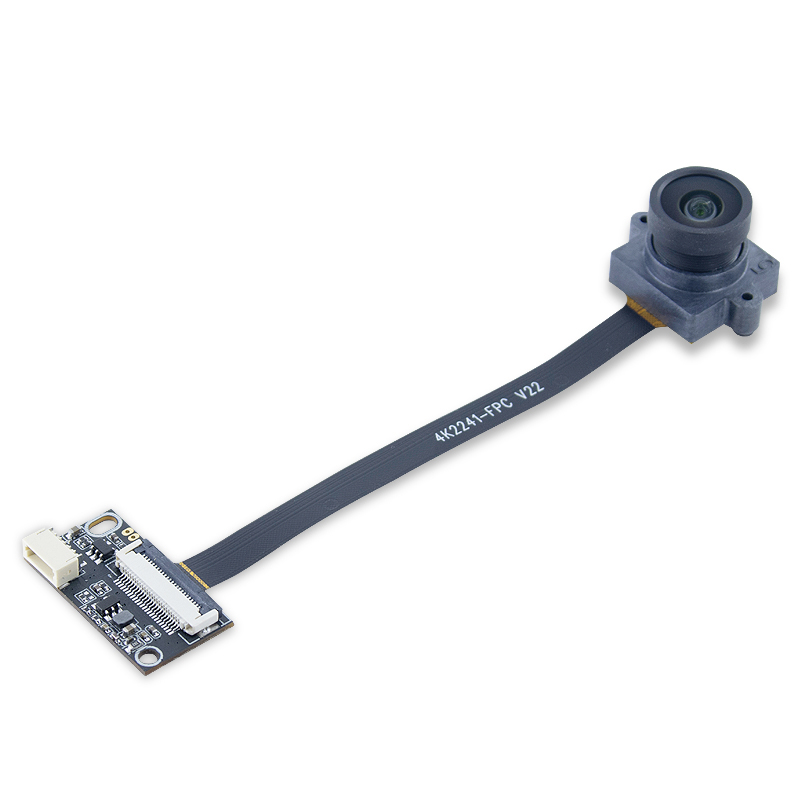

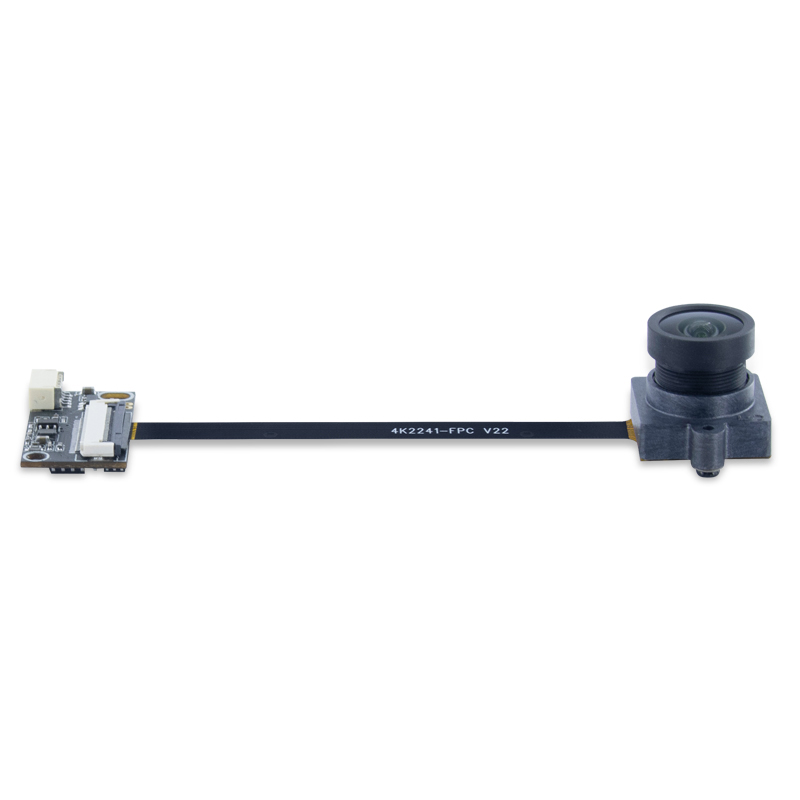

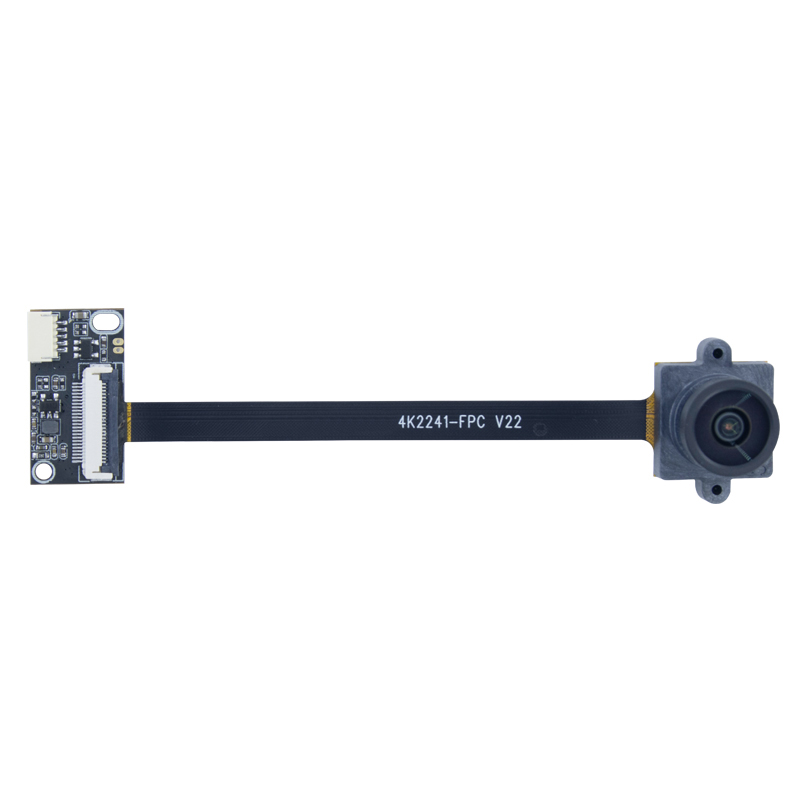

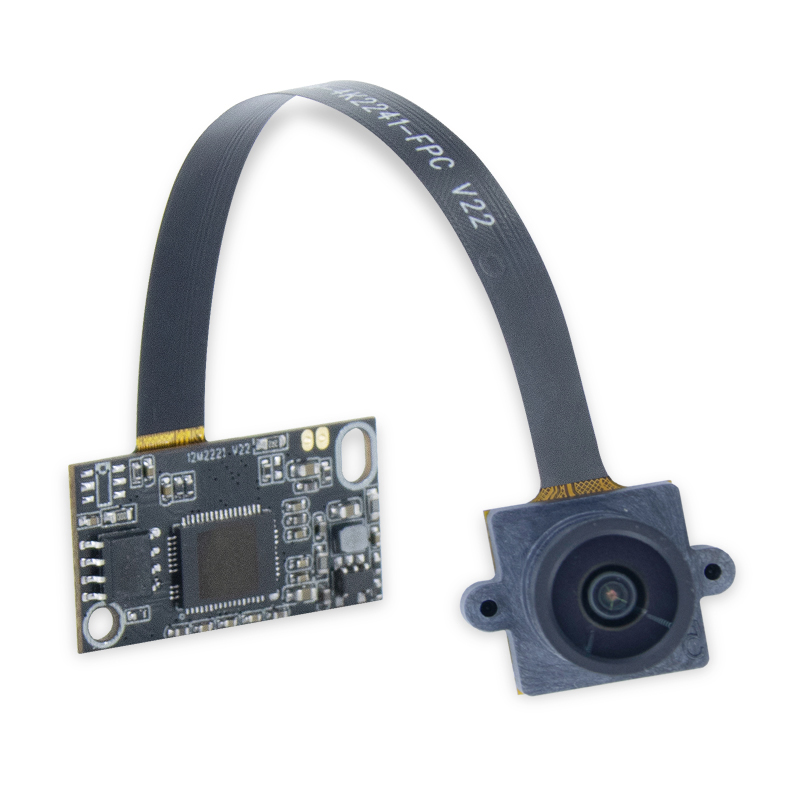

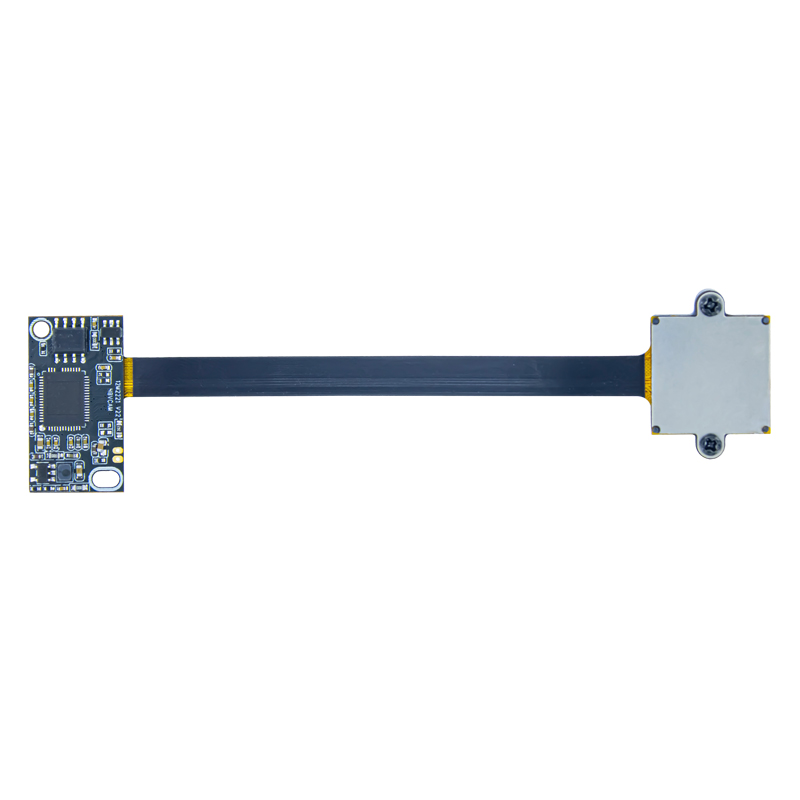

8.29MP 4K Smart Terminal Device Embedded Camera Module

Product category:

USB Camera Board

SKU:

216758

Price:

$42.00

Description

Product Name	8.29MP 4K Embedded Camera Module
Module No	BM4K2241 V22-125
Module Size	109.70mm × 26.00mm × 16.40mm±0.5MM
Features	1. Flexible structure and small volume of split soft and hard boards 2. The FPC part can be customized in length and shape 3. The same effect and performance as 4K2246, and the installation hole position is compatible with the 1466 product structure 4. Split version without microphone
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1330 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	IMX415 (1/2.8" )
Seneor Package	PLCC,Bare Die
Maximum resolution	3840*2160
Sensitivity	2000mV /（lux-sec）
Pixel Size	1.0µm x 1.0µm
Maximum Image Transfer Rate	MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 3FPS MJPEG 2048x1536 30FPS / YUY2 2048x1536 3FPS MJPEG 2880x2160 30FPS / YUY2 2880x2160 1FPS MJPEG 3840x2160 30FPS / YUY2 3840x2160 1FPS
S/N Ratio	46db
Max Dynamic Range	72db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	5G
F/No	2.2
EFL	1.9 mm
FOV	125°
TV Distortion	<8%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
