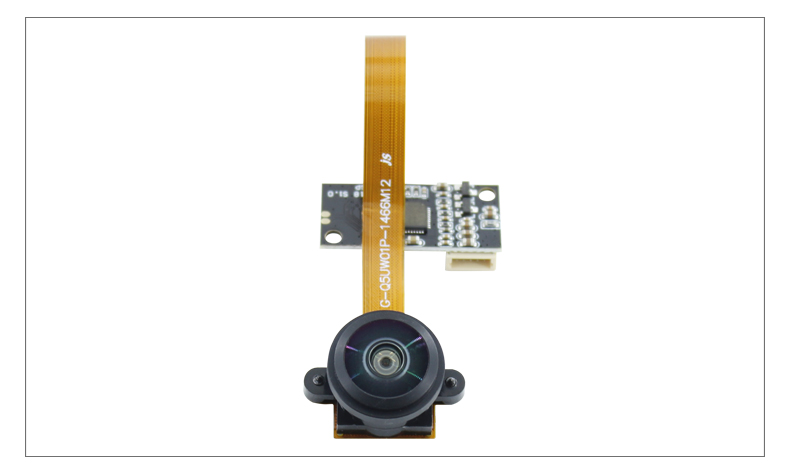

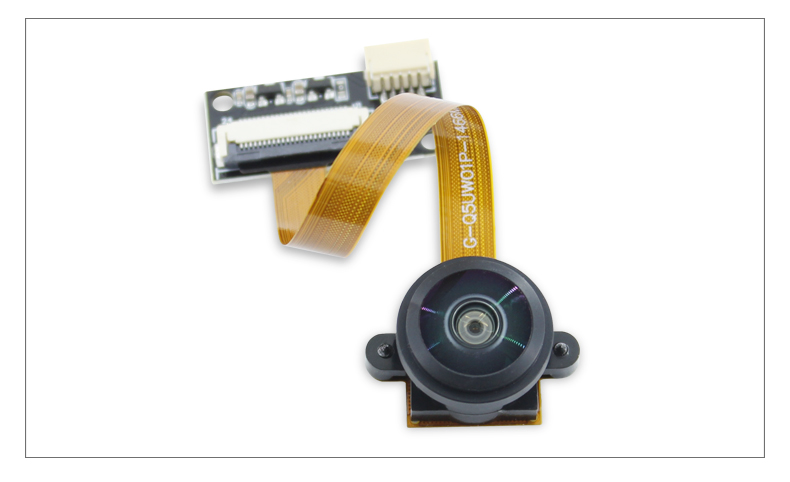

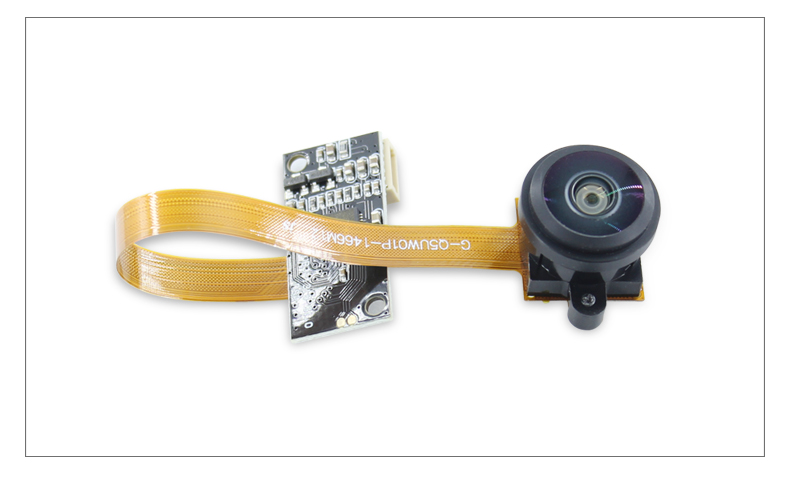

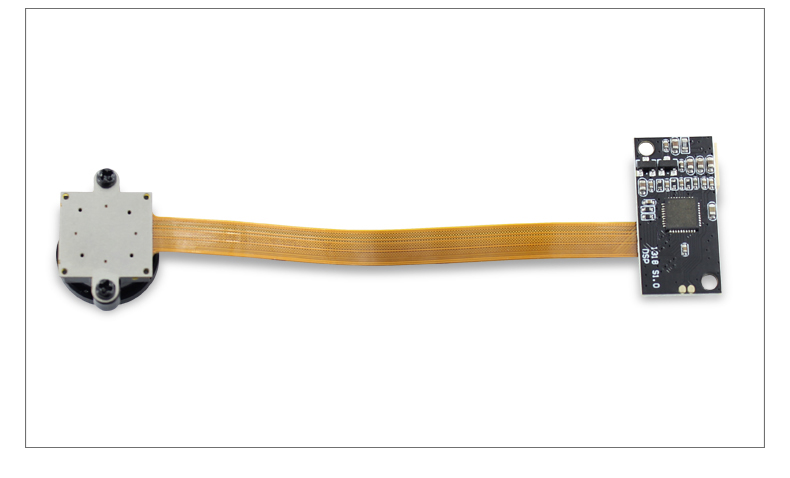

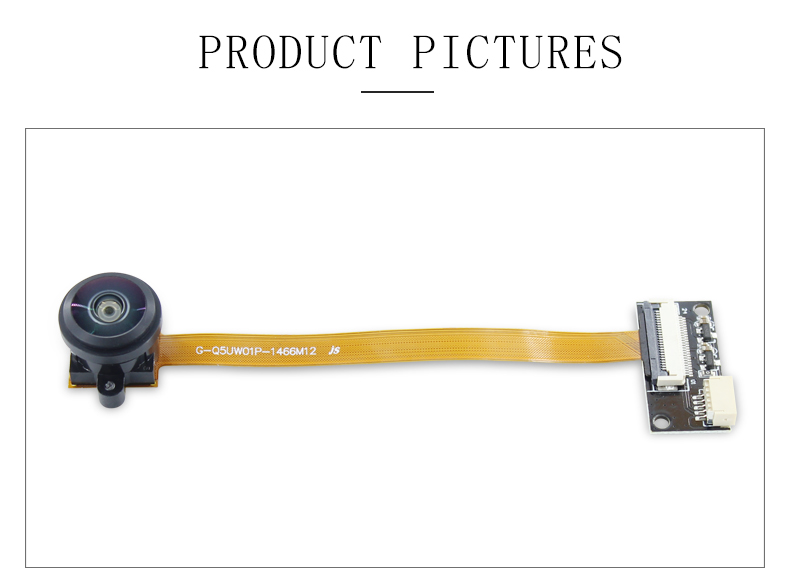

5MP Panoramic wide angle FOV 200 degree OV5640 FPC camera module

Product category:

USB Camera Board

SKU:

217053

Price:

$21.60

Description

Model No.	BM1466WA S1.0
Model Size	68.2mm × 26mm × 6mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	800LW/PH (Center)
Interface	USB 2.0
Power	USB bus power
Maximum Power consumption	940 mW
Package	Anti-electrostatic tray
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Certifications	FCC and CE
Active Array Size	2592*1944
Sensor	OV5640 (1/4" )
Sensitivity	600mv /(lux-sec)
Pixel Size	1.4µm x1.4µm
Maximum Image Transfer Rate	MJPEG 1024x768 30FPS / YUY2 160x120 30FPS MJPEG 1280x720 40FPS / YUY2 320x240 30FPS MJPEG 1600x1200 30FPS / YUY2 640x480 30FPS MJPEG 1920x1080 15FPS / YUY2 800x600 30FPS MJPEG 2048x1536 15FPS / YUY2 1024x768 15FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 3FPS
S/N Ratio	36db
Dynamic Range	68db
Package	CSP,Bare Die
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Type
FOV	200 °
TV Distortion	<-1%
Relative Illumination (Sensor)	70%
R Filter	650 ± 10nm
DSP Type	5640
AGC/AEC/Whiter balance	Auto
Output Formats	USB suspend out
Fixed Pattern Noise	< 0.03% of V PEAK-TO-PEAK
Package	LQFN-40pin
