5 Megapixel 2K Software Hardware Board Docking Small Structure Embedded Camera Module Connected To Mobile Otg

Product category:

USB Camera Board

SKU:

217021

Price:

$26.40

Description

Product Description

Product Name	5MP 2K camera module
Module No.	BM5M20273 V22

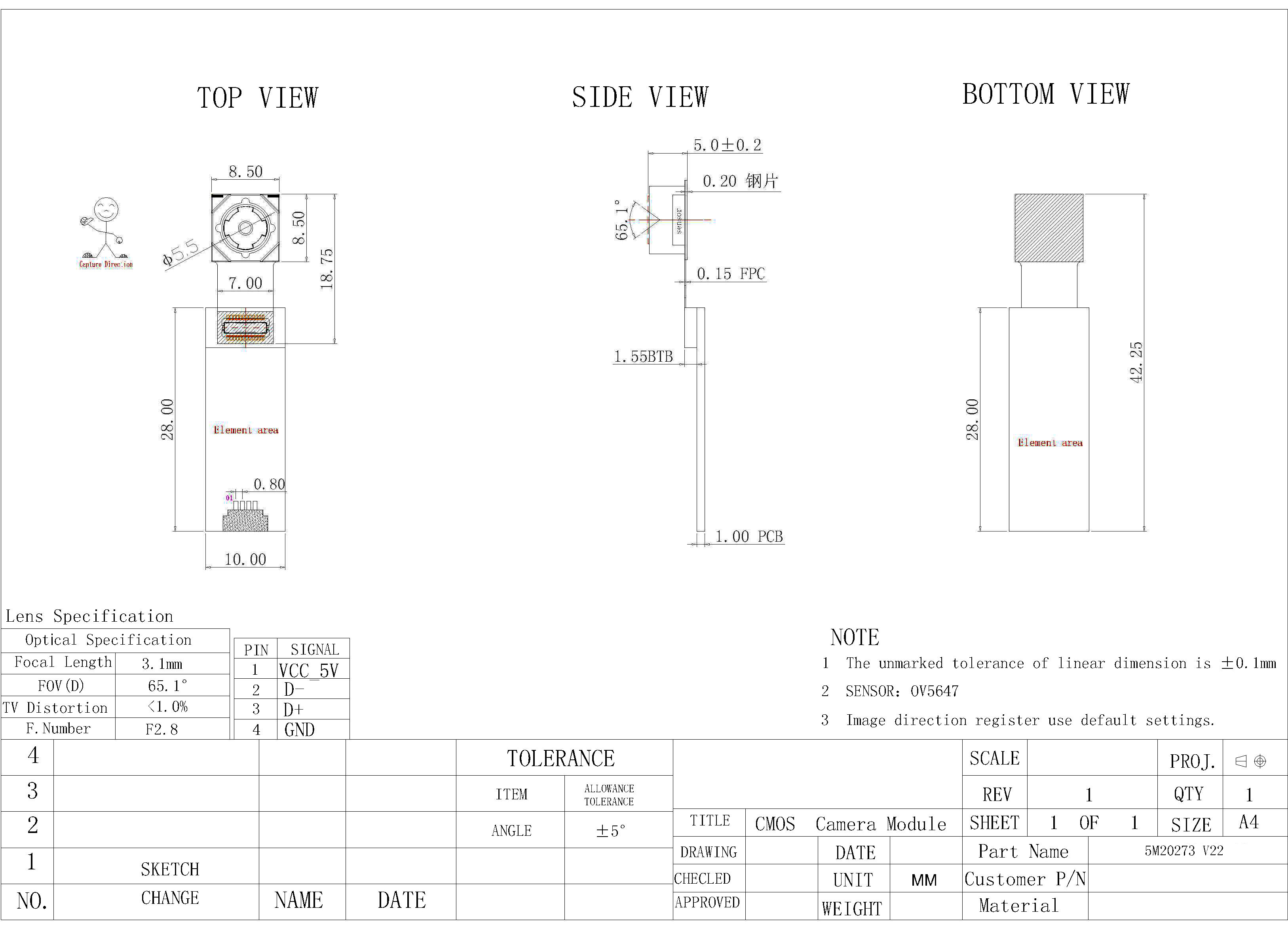

Module Size	42.25mm × 10mm × 5.0mm±0.2MM
Features	1. Small and flexible structure 2. The head can be customized in structure, size, etc. 3. The main application can be connected to the mobile phone OTG for use
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Auto
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1000 mW
Operating system request	Win XP/win 7,8 ,10/ vista /android 4.0/ mac /Linux with uvc
Sensor	OV5647 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	2592*1944
Sensitivity	600mV /(lux-sec)
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 2FPS
		S/N Ratio	34 db
		Max Dynamic Range	67 db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	NO
		Lens Construction	4P+IR
		F/No	2.8
EFL	3.1mm
FOV	65.1°
TV Distortion	<1.0%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti- electrostatic tray
Certifications	FCC/CE/ROSH

Detailed Images
