4M Pixel HD Dual Lens 3D Synchronous OV4689 Sensor Full HD CMOS Camera Module

Product category:

USB Camera Board

SKU:

217122

Price:

$45.60

Description

Module No.	1820-2 S1.0

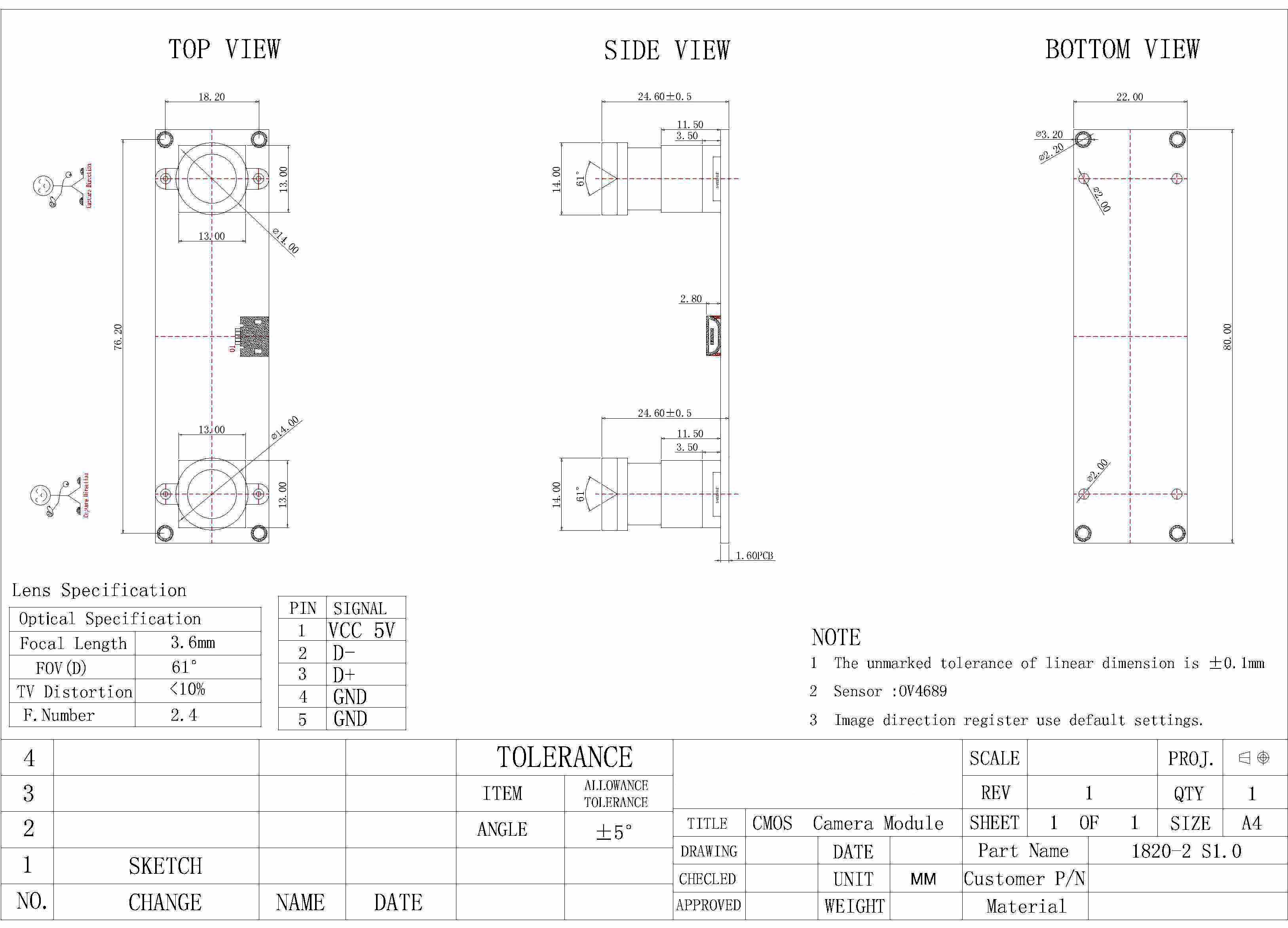

Module Size	80mm × 22mm × 24.6mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1100 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV4689 (1/3" )
Seneor Package	CSP,Bare Die
Maximum resolution	2688*1520
Sensitivity	1900mV /（lux-sec）
Pixel Size	2µm x 2µm
Maximum Image Transfer Rate	MJPEG 1920x960 30FPS / YUY2 1520x1520 5FPS MJPEG 1520x1520 30FPS / YUY2 2688x1520 1FPS MJPEG 2144x1072 30FPS / MJPEG 2432x1216 30FPS / MJPEG 2688x1520 30FPS / MJPEG 3040x1520 30FPS /
Output Formats	YUY2/MJPEG
Relative Illumination (Sensor)	70%
Certifications	FCC/CE/ROSH
