4k 8mp security camera IMX317 sensor Maximum Resolution3840*2160 30fps camera module

4k 8mp security camera IMX317 sensor Maximum Resolution3840*2160 30fps camera module

Product category:

USB Camera Board

SKU:

217045

Price:

$68.40

Quantity	Price
1 - 499	$68.40
500 - 999	$60.95
1000 - Unlimited	$55.00

full product footer

Description

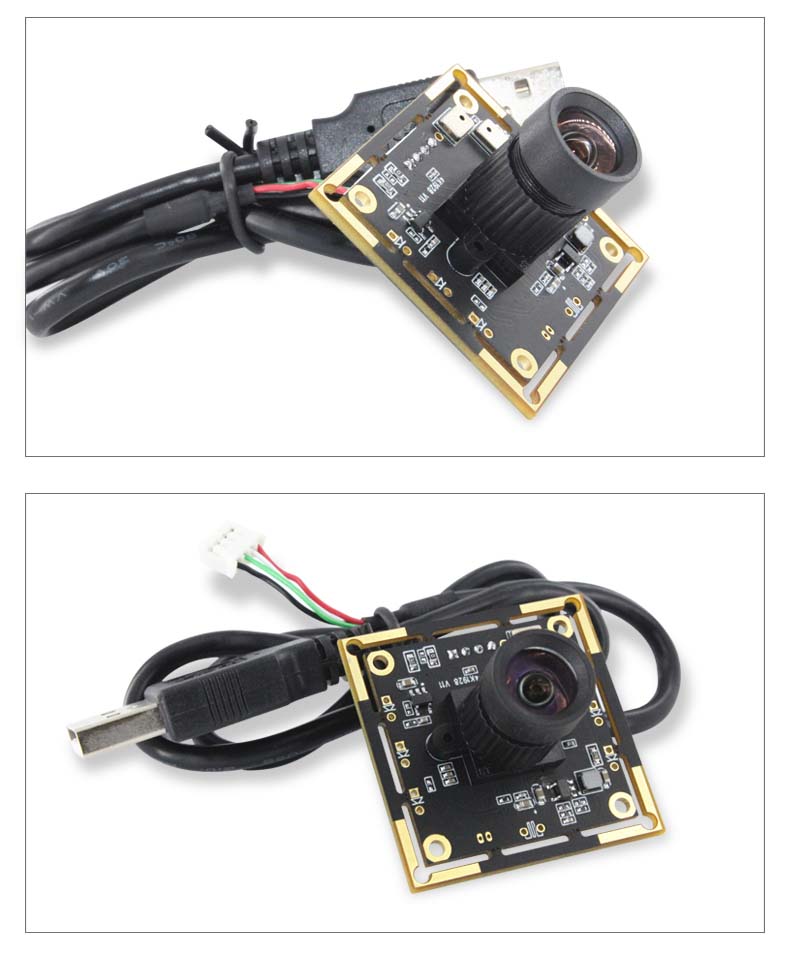

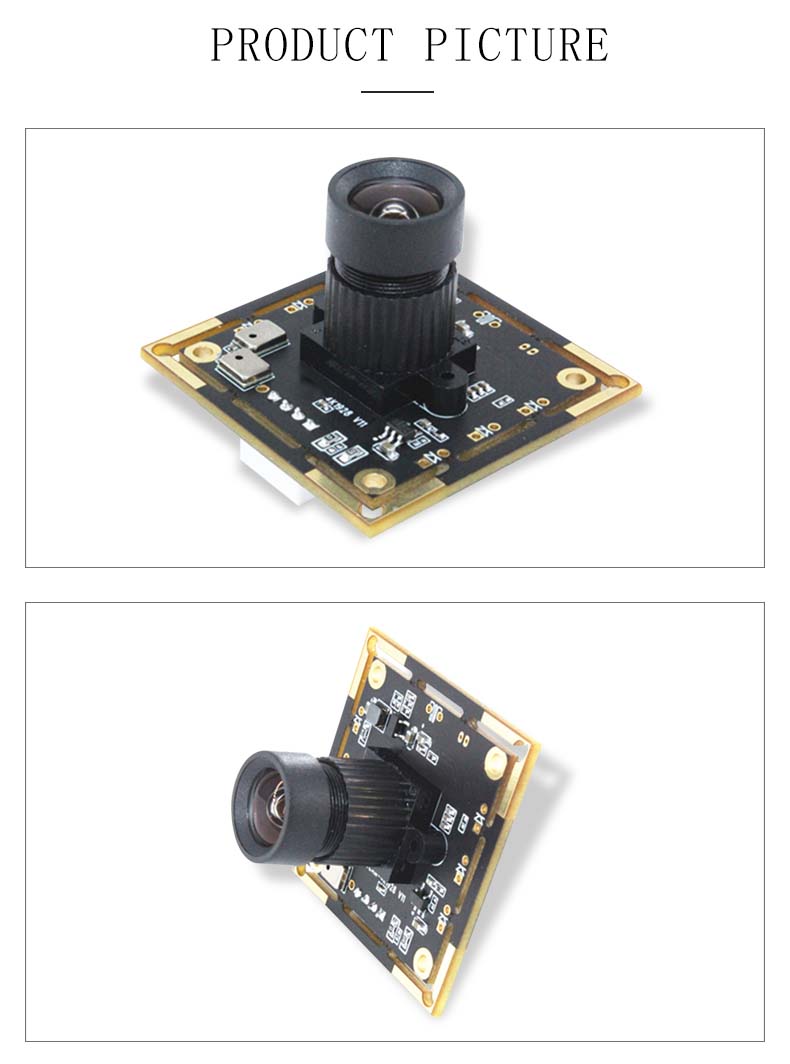

4K 8mp IMX317 sensor Maximum Resolution3840*2160 30fps camera module

Model No.	BM4K1928 V11

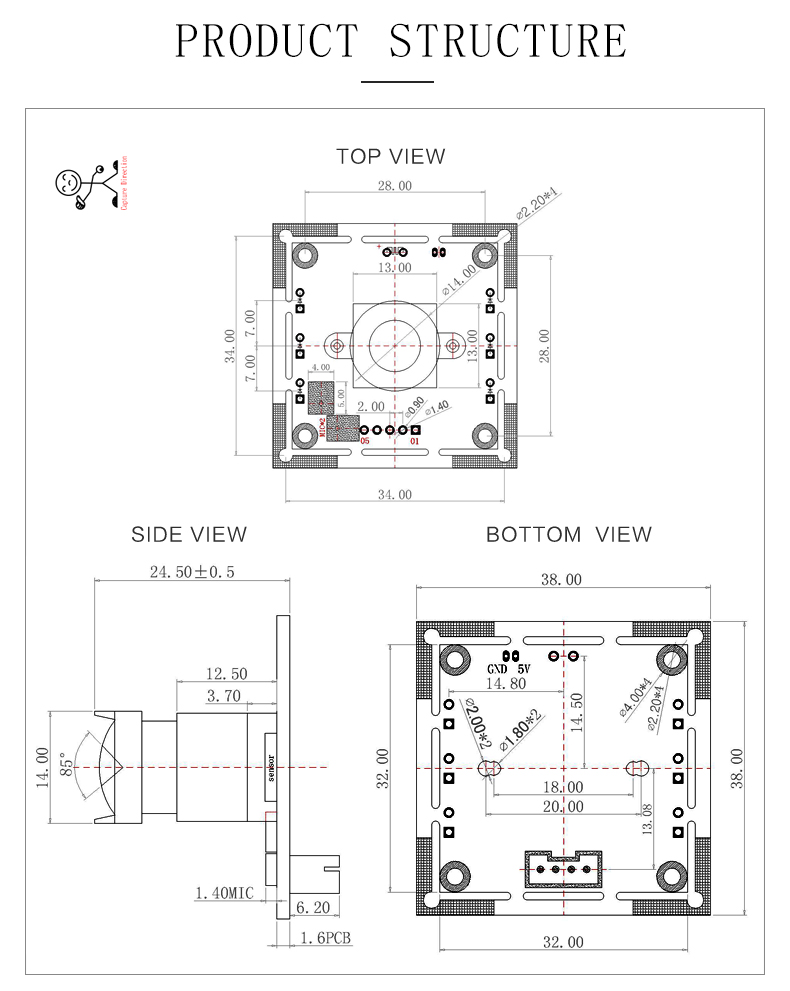

Model Size	38mm × 38mm × 24.5mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	800LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power supply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	940 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc
Sensor	IMX317 (1/2.5" )
Seneor Package	CSP,Bare Die
Maximum resolution	3840*2160
Sensitivity	760mv /(lux-sec)
Pixel Size	1.62μm x 1.62μm
Maximum Image Transfer Rate	MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 30FPS / YUY2 2048x1536 3FPS MJPEG 2688x1512 30FPS / YUY2 2688x1512 2FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS MJPEG 3840x2160 30FPS / YUY2 3840x2160 1FPS
S/N Ratio	44db
Max Dynamic Range	82db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	2G2P
F/No	2.4
EFL	4.2 mm
FOV	85
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
USB cable	50CM 1M 2M 3M
1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding

♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.

♦Does the camera support OTG?
Most of our usb cameras support OTG function.

♦Which software your usb camera module support?

Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer,

ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player

♦Can you supply the USB cable together with camera?

Yes, we supply 40cm/1M usb cable for sample testing. if you need longer usb cable, we can customize it for you. welcome to contact us in advance.
