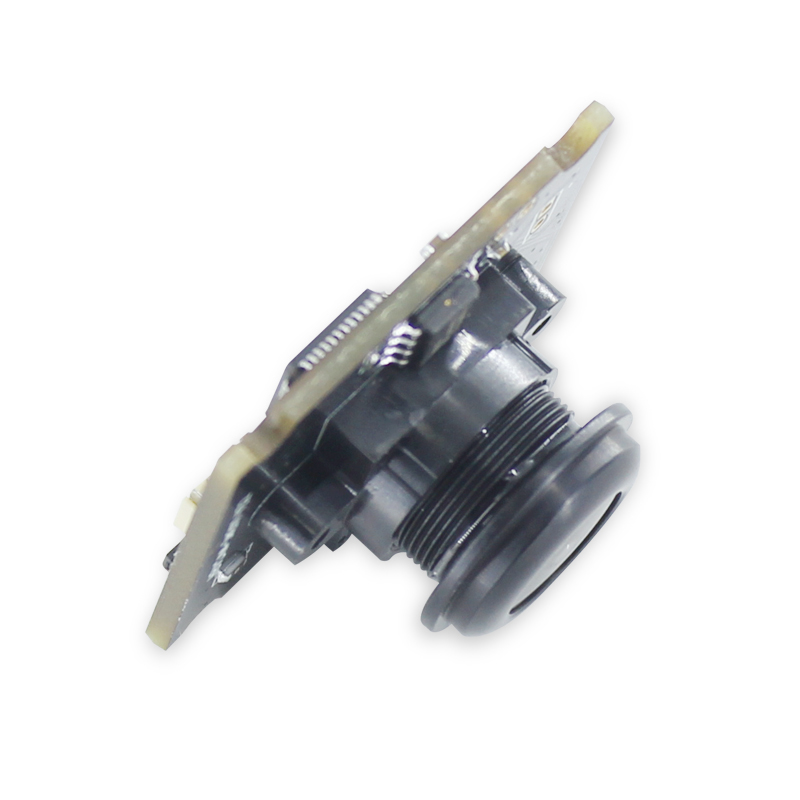

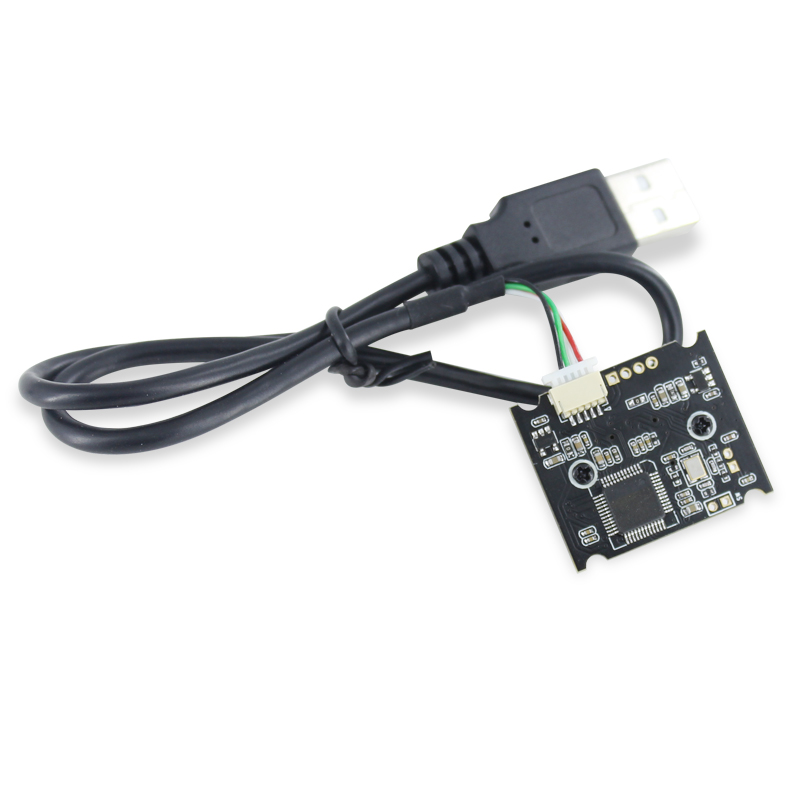

3MP computer camera module UVC protocol can be secondary development

Product category:

USB Camera Board

SKU:

216680

Price:

$8.40

Description

Product Name	3MP USB Camera Module

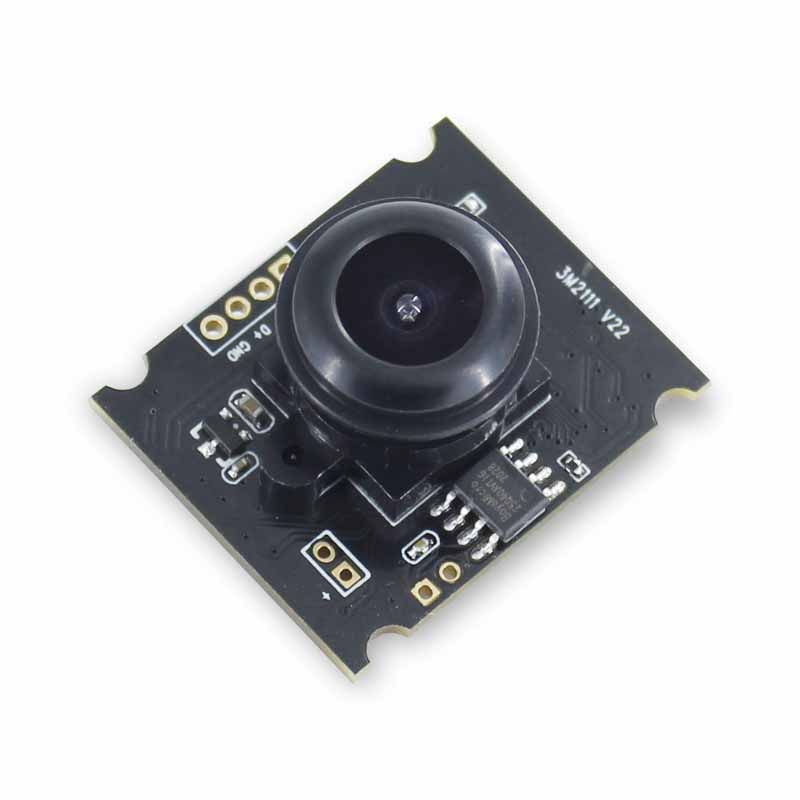

Module No	BM3M2111 V22-110

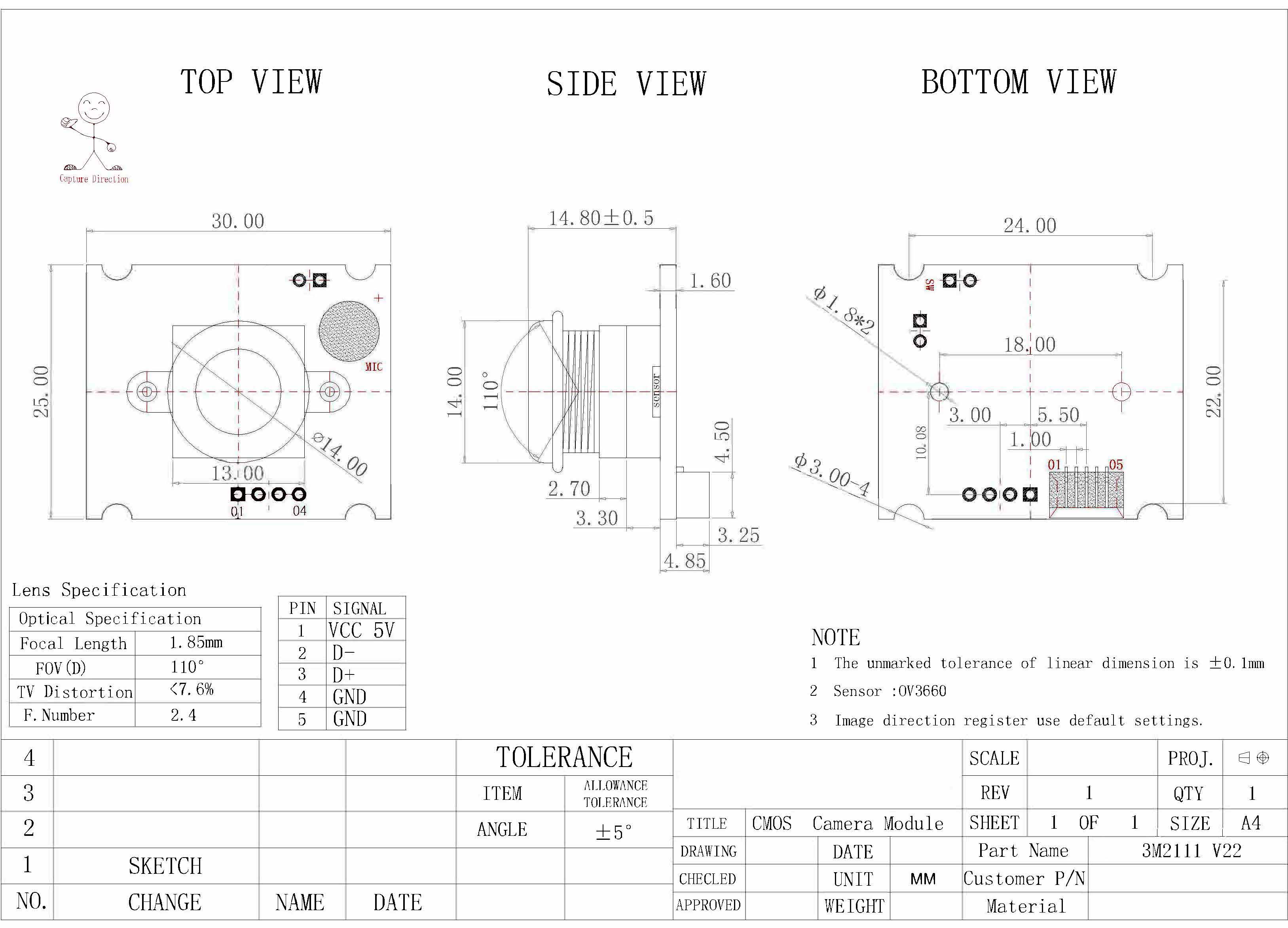

Module Size	30mm × 25mm × 14.8mm±0.5MM
Features	1. The conventional standard 30X25mm structure has high universality 2. Can be used for PC camera 3. High cost-effectiveness 4. Disadvantage: Cannot add lights
Temperature (Operation)	-20°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	640mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV3660 (1/5" )
Seneor Package	CSP,Bare Die
Maximum resolution	2048*1536
Sensitivity	670mV /（lux-sec）
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x288 30FPS MJPEG 640x480 20FPS / YUY2 640x480 8FPS MJPEG 1280x720 20FPS / YUY2 1280X720 8FPS MJPEG 1920x1080 20FPS / YUY2 1920X1080 5FPS MJPEG 2048x1536 15FPS / YUY2 2048x1536 5FPS
S/N Ratio	34 db
Max Dynamic Range	70 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4E+IR
F/No	2.4
EFL	1.85 mm
FOV	110°
TV Distortion	<7.6%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROHS
