3MP auto focus OV3640 sensor CMOS usb mini wifi camera module Camera Module

Product category:

USB Camera Board

SKU:

216835

Price:

$9.00

Description

Product Description

Product Name	3 MP PC, scanning equipment embedded built-in camera module
Module No.	BM3M20278 V11

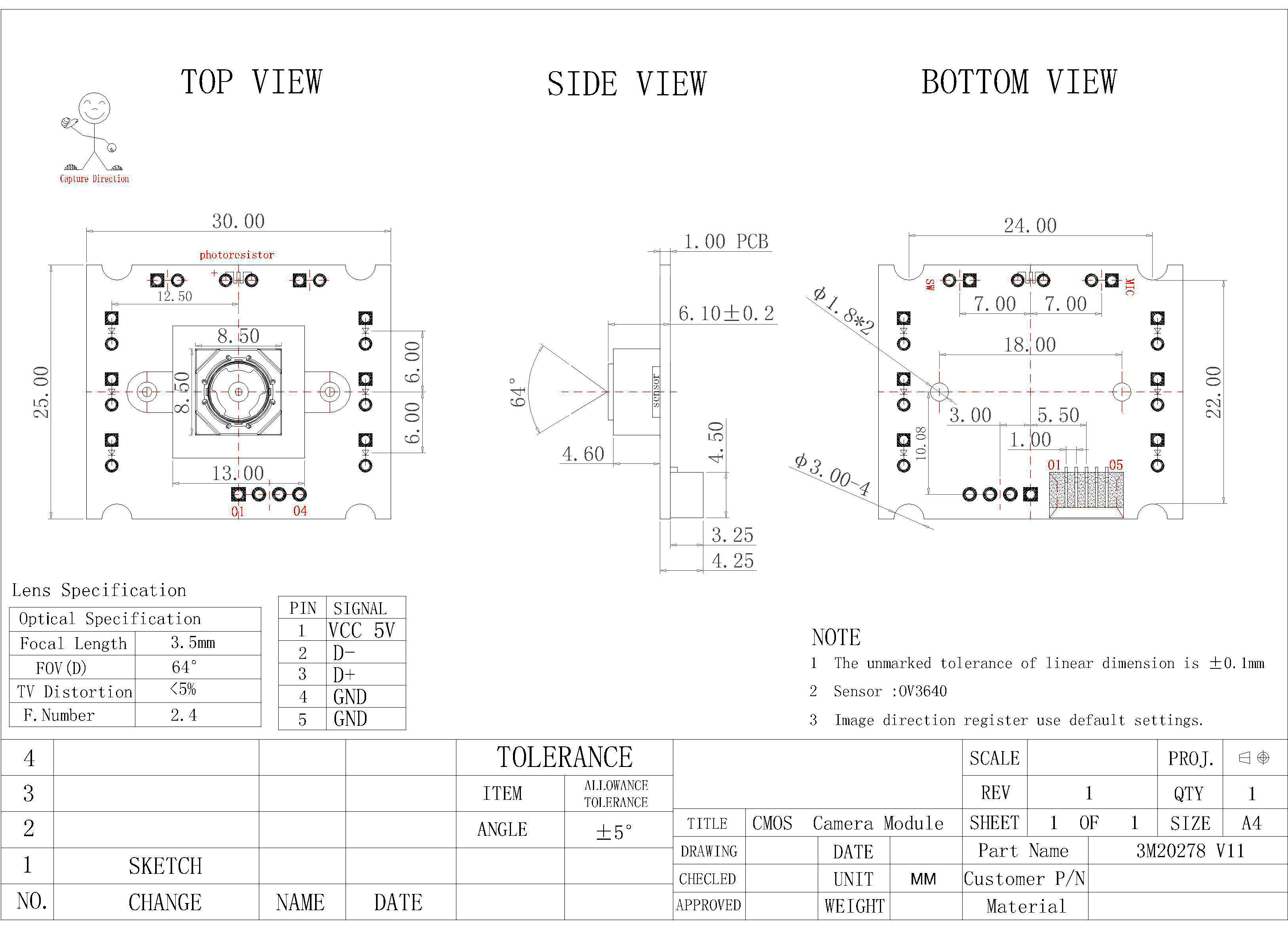

Module Size	30mm × 25mm × 6.1mm±0.2MM
Features	1. Conventional standard 30X25mm, great structural versatility 2. 6 plug-in lights can be added for welding (infrared white light), photosensitive control 3. Mainly used for scanning static photos and taking pictures 4. High cost performance 5. AF auto focus
Temperature (Operation)	-20°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Auto
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black

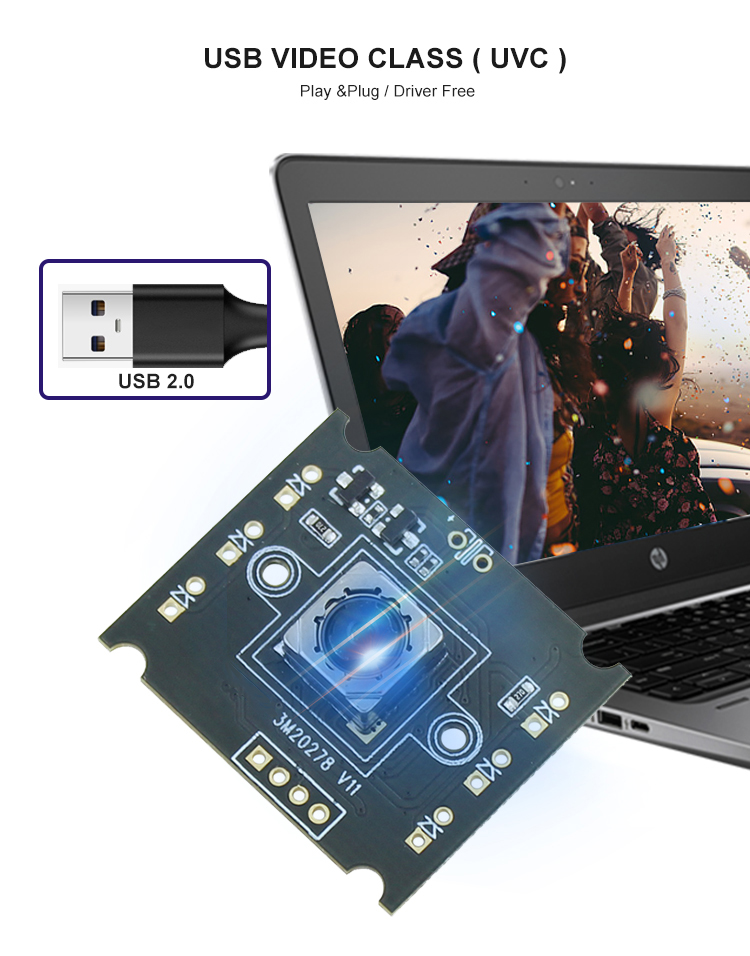

interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	750mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV3640 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	2048*1536
Sensitivity	670mV /(lux-sec)
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 320x240 15FPS / YUY2 320x240 17FPS MJPEG 352x288 15FPS / YUY2 352x288 17FPS MJPEG 640x480 15FPS / YUY2 640x480 17FPS MJPEG 1280x1204 5FPS / YUY2 1280X1204 3FPS MJPEG 1600x1200 5FPS / YUY2 1600X1200 3FPS MJPEG 2048x1536 5FPS / YUY2 2048x1536 3FPS
		S/N Ratio	34 db
		Max Dynamic Range	70 db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	NO
		Lens Construction	4P
		F/No	2.4
EFL	3.5 mm
FOV	64°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

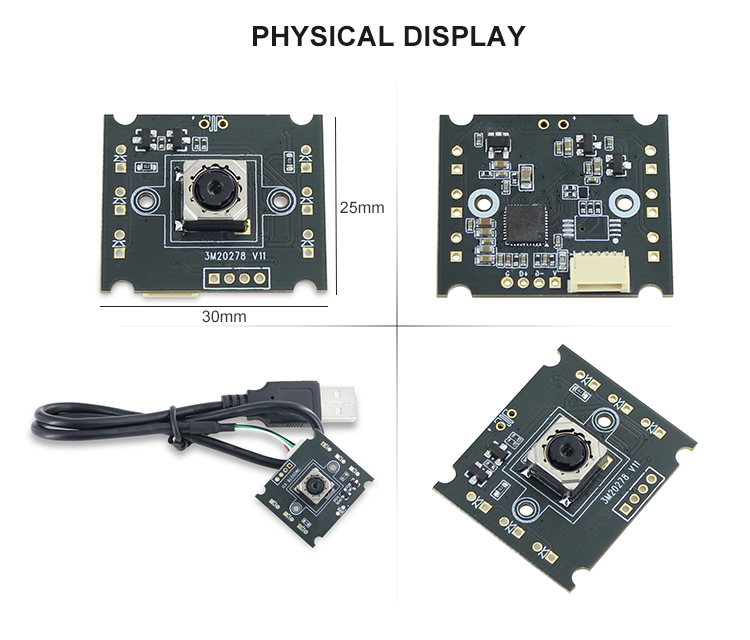

Detailed Images
