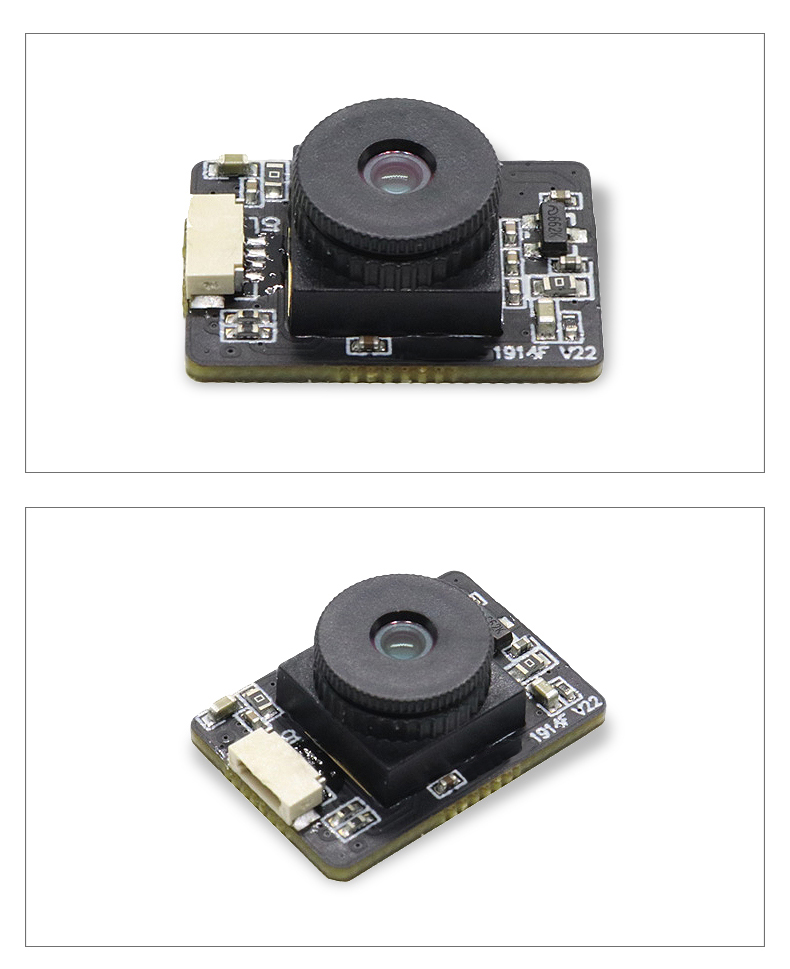

2MP HD mini Wide Dynamic HM2131(1/2.7") sensor CMOS Camera Module without distortion

Product category:

USB Camera Board

SKU:

217143

Price:

$33.60

Description

2MP HD mini Wide Dynamic HM2131(1/2.7") sensor CMOS Camera Module without distortion.

Model No.	BM1914F V22
Model Size	20mm × 14mm × 7.7mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power supply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	400 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc
Sensor	HM2131 (1/2.7" )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	4600mv /(lux-sec)
Pixel Size	3μm x 3μm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 20FPS MJPEG 848x480 30FPS / YUY2 848x480 20FPS MJPEG 1024x768 30FPS / YUY2 1024x768 10FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
S/N Ratio	38.9B
Max Dynamic Range	62B
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	6P
F/No	2.0
EFL	4.262 mm
FOV	77°
TV Distortion	<1.5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

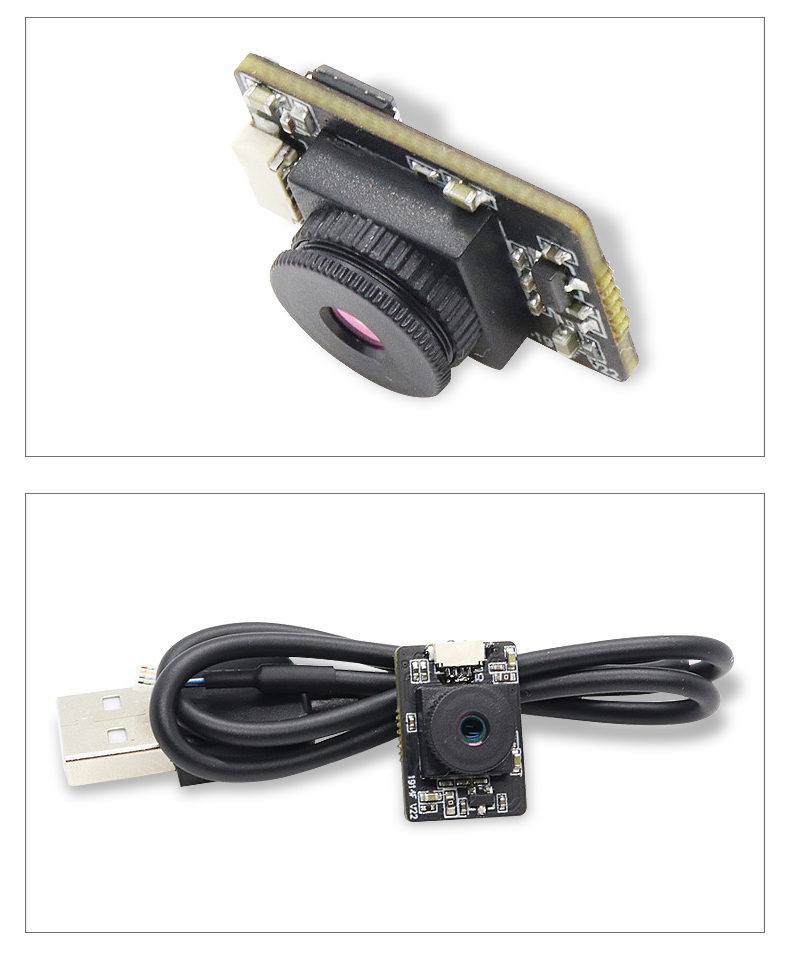

USB cable	50CM 1M 2M 3M
1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding
