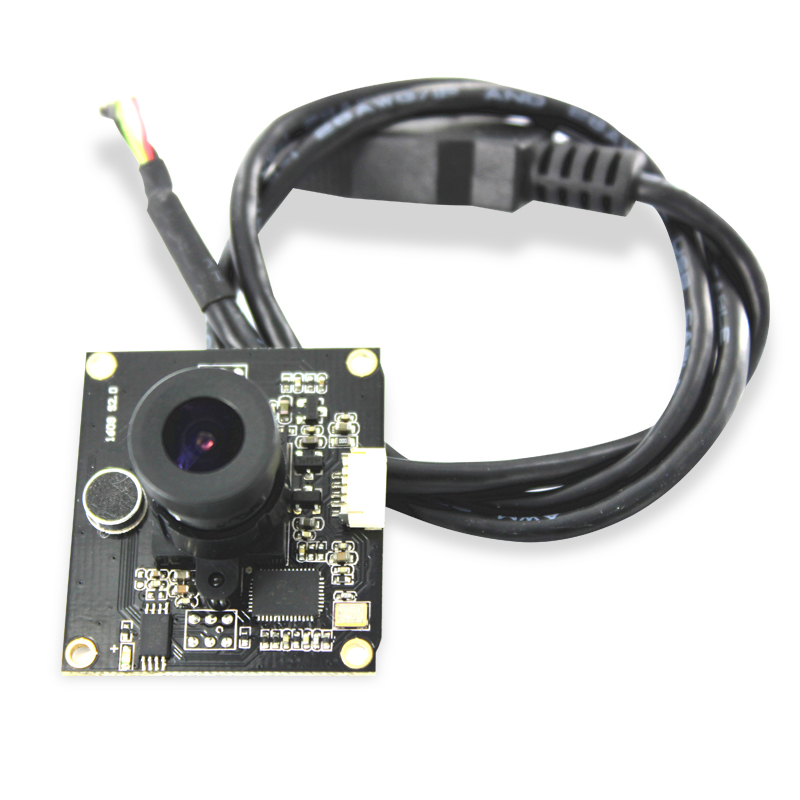

2Mp Camera OV2643 Sensor Module Usb2.0 Camera Module Support Microphone For Atm Machine Laptop

Product category:

USB Camera Board

SKU:

217005

Price:

$15.60

Description

Product Description

Module No.	1609 S2.0

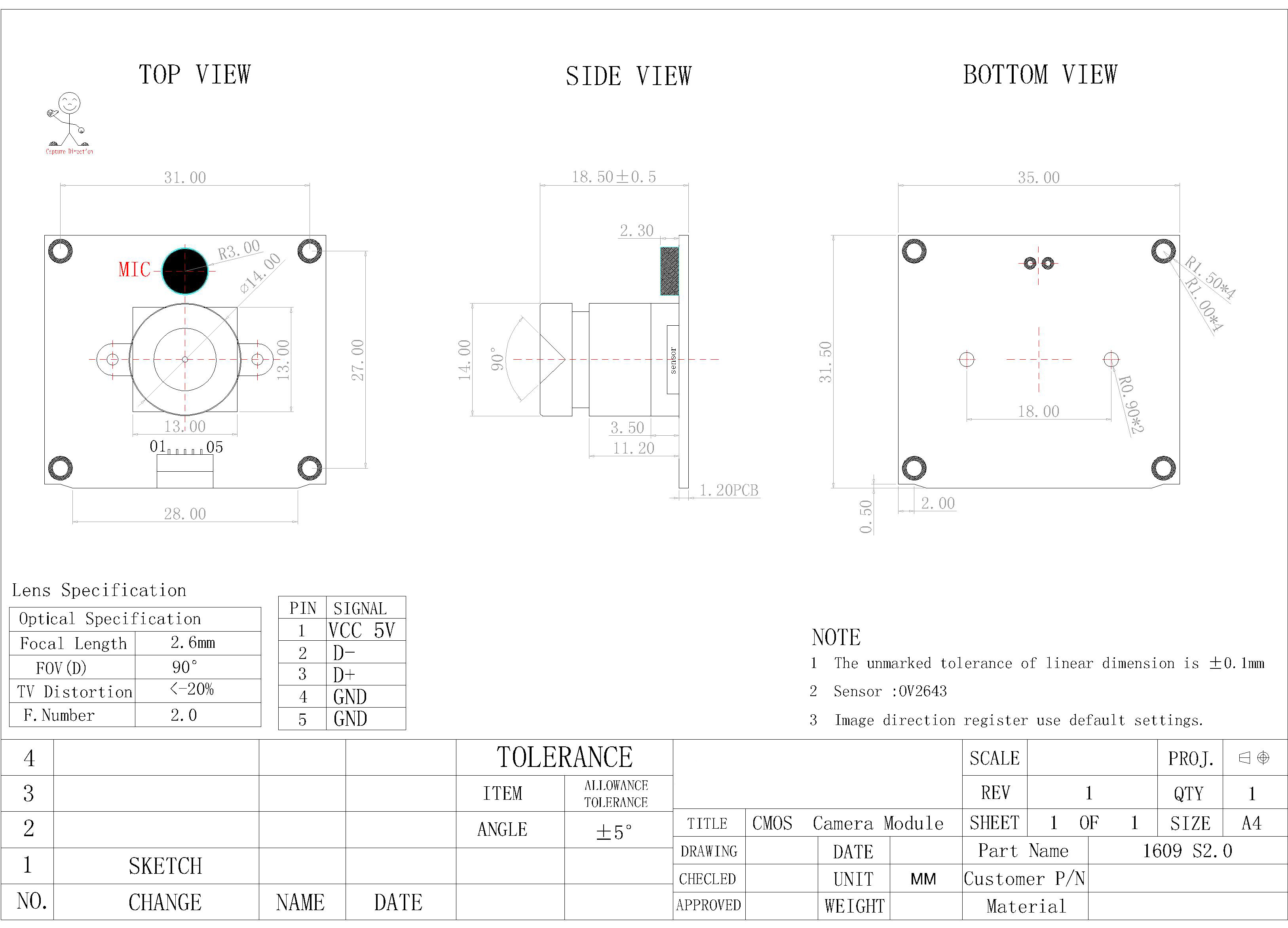

Module Size	35mm × 31.5mm × 18.5mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	400 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV2643 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	1600*1200
Sensitivity	1250mV /(lux-sec)
Pixel Size	2.2µm x 2.2µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS
	MJPEG 352x288 30FPS / YUY2 640x480 30FPS
	MJPEG 640x480 30FPS / YUY2 800x600 15FPS
	MJPEG 800x600 30FPS / YUY2 1280x720 8FPS
	MJPEG 1280x720 30FPC / YUY2 1280x1024 8FPS
	MJPEG 1280x1024 30FPC / YUY2 1600x1200 4FPS
S/N Ratio	39 db
Max Dynamic Range	66 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4G+IR
F/No	2
EFL	2.6 mm
FOV	90°
TV Distortion	<-50%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
