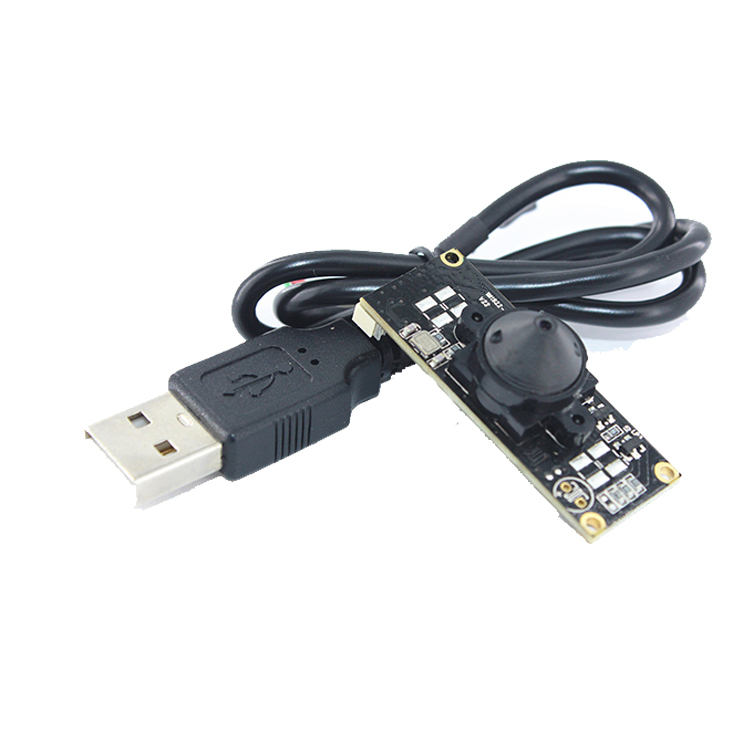

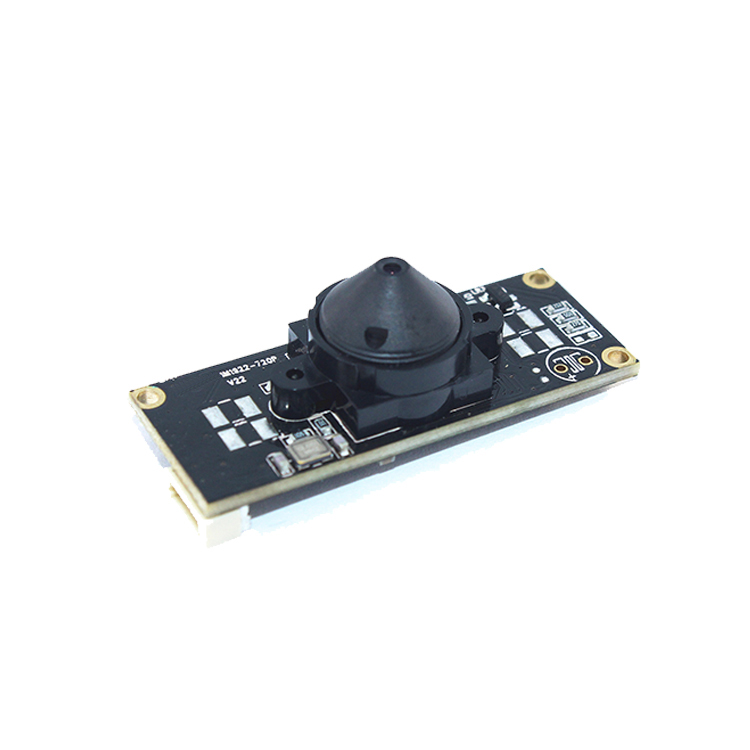

1MP High Definition cmos camera module with pinhole lens for doorbell mini device

Product category:

USB Camera Board

SKU:

217002

Price:

$13.20

Description

Product Description

Module No.	BM1M1922-720P V22
Module Size	42mm × 16mm × 13.1mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1000 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9712 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	1280*800
Sensitivity	3300mV /(lux-sec)
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 160x120 30FPS / YUY2 160x120 30FPS MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x288 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS
S/N Ratio	39 db
Max Dynamic Range	69 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4P
F/No	2.4
EFL	3.5 mm
FOV	56°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
