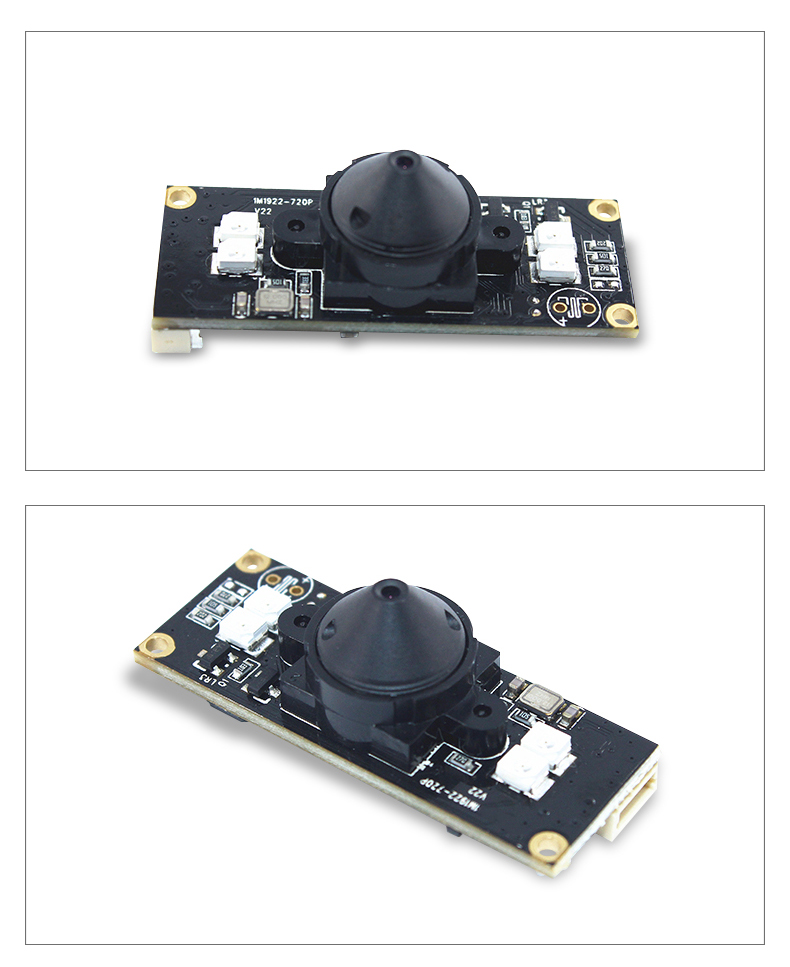

1MP 720p cmos OV9712 sensor mini hd usb camera lens module with LED light

Product category:

USB Camera Board

SKU:

217147

Price:

$15.60

Description

1MP 720p cmos OV9712 sensor mini hd usb camera lens module with LED light

Model No.	BM1M1922-720P V22

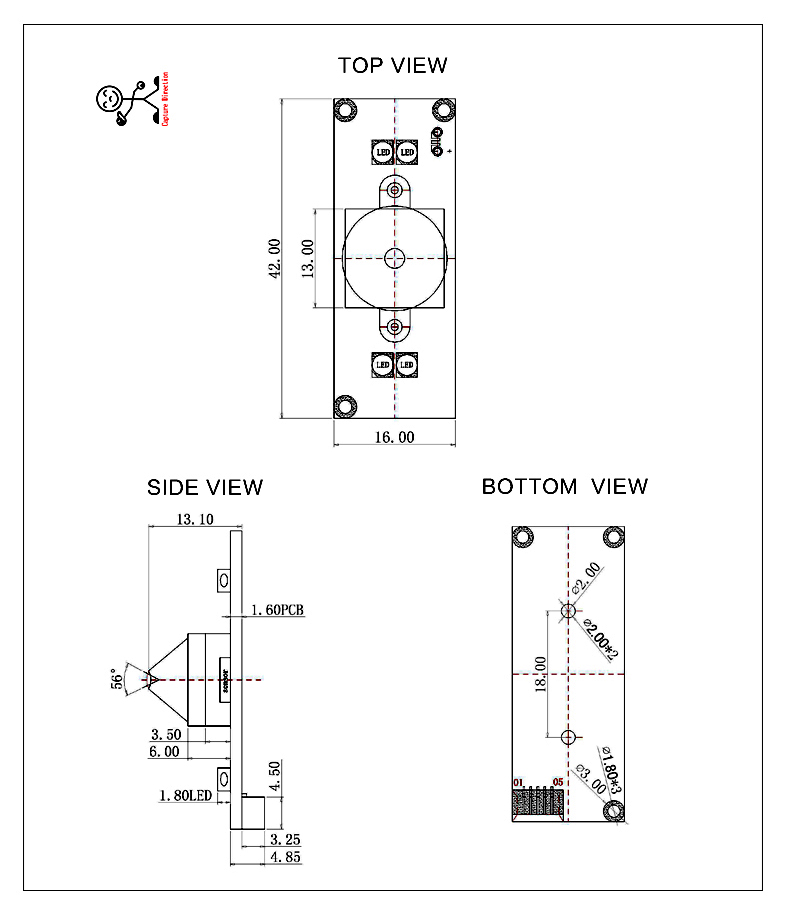

Model Size	42mm × 16mm × 13.1mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power supply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1000mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9712 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	1280*800
Sensitivity	3300mV /(lux-sec)
Pixel Size	3μm x 3μm
Maximum Image Transfer Rate	MJPEG 160x120 30FPS / YUY2 160x120 30FPS MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x288 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS
S/N Ratio	39B
Max Dynamic Range	69
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4P
F/No	2.4
EFL	3.5mm
FOV	56°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

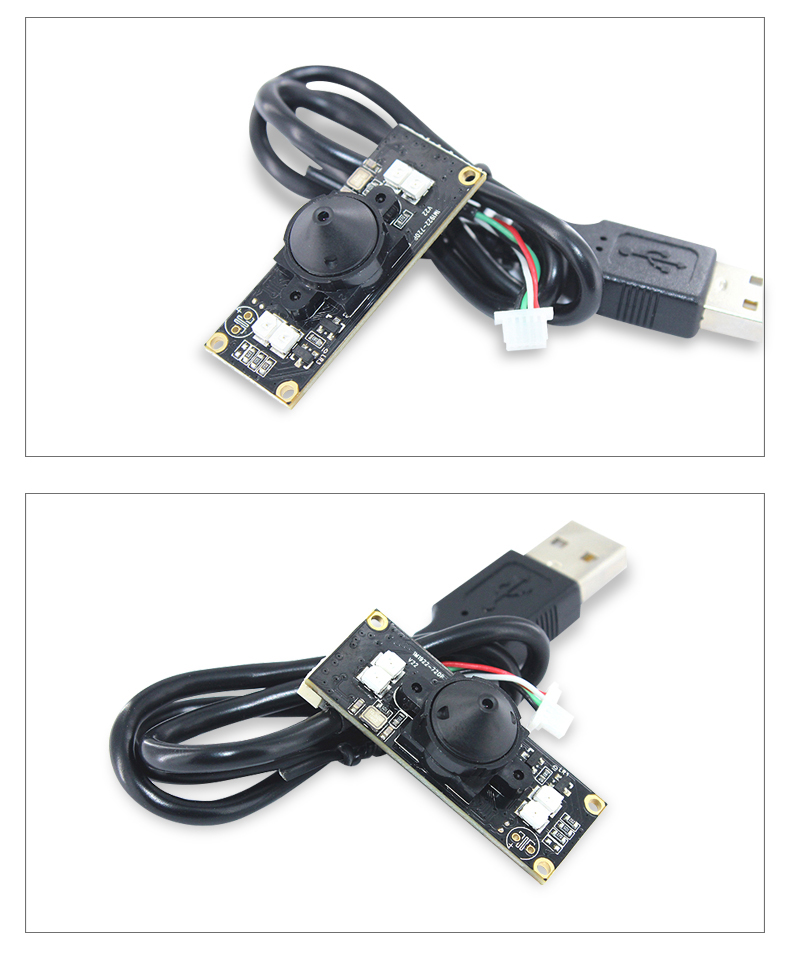

USB cable	50CM 1M 2M 3M
1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding
