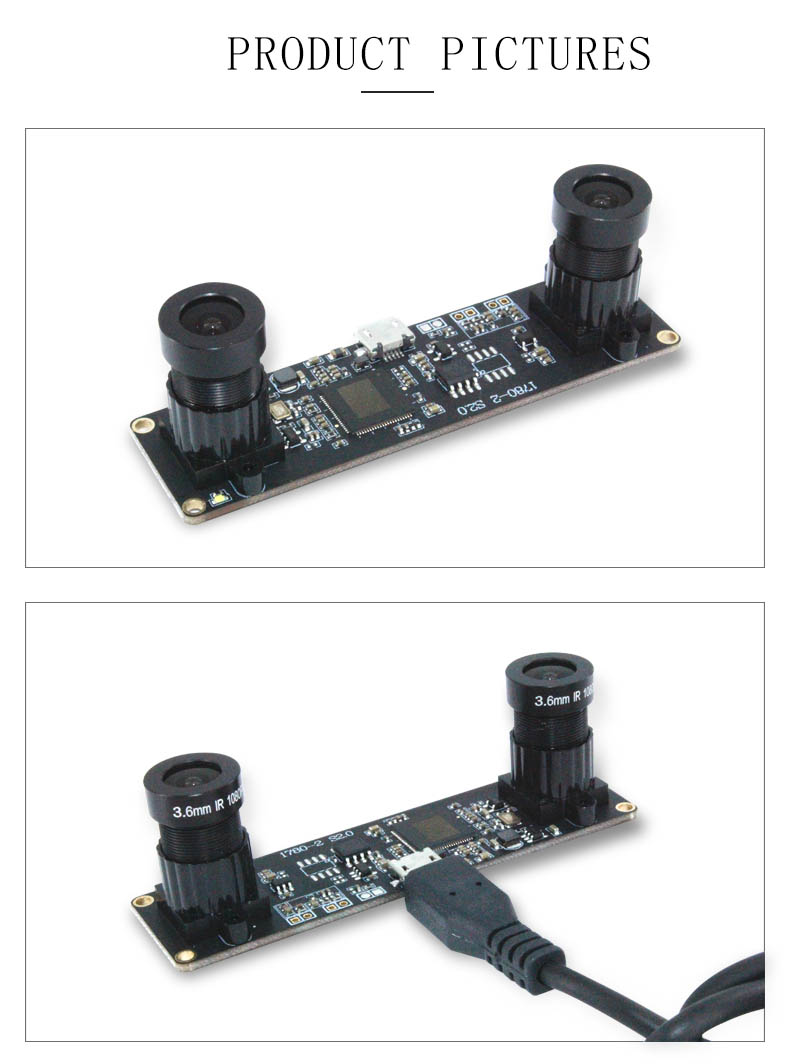

1M Pixel CMOS Sensor OV9732 HD Dual Lens 3D Synchronous Face Recognition Camera Module

Product category:

USB Camera Board

SKU:

216938

Price:

$38.40

Description

Product Descripiton

Model No.	BM1780-2 S1.0

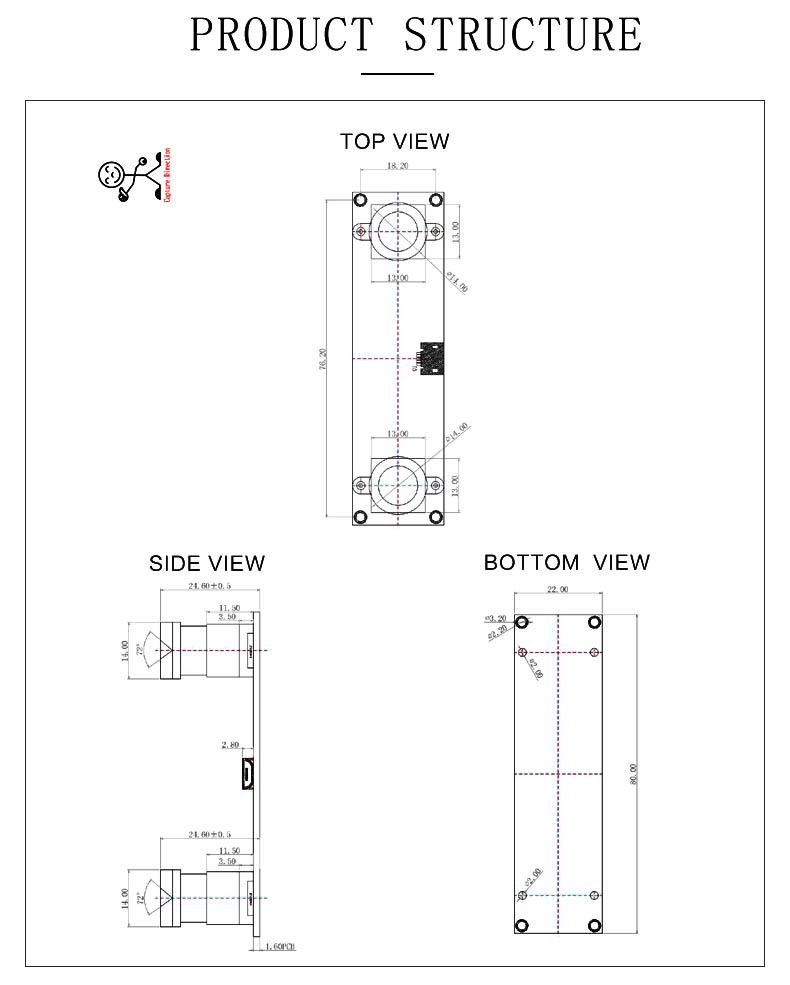

Model Size	80MM(L)22MM(W)25MM(H)
Resolution	1280*720
Optical Format	1/4 inch
S/N Ratio	TBD
Pixel Size	3um*3um
Image Area	3888um*2208um
Array Size	1284*724
Object distance	30cm-infinity (adjustable)
Interface	MINI USB2.0
DFOV	72degree (for single camera)
HFOV	54degree(for single camera)
VFOV	34degree(for single camera)
Operating system	Free driver for Windows 2000\ Windows XP\Windows 7 / Linux and Android system with Standard UVC Protocol
Video Format	MJPG
Format output and FPS	2560720(default)25fps 320240 30fps 640240 30fps 640480 30fps 1280480 30fps 1280720 30fps
Video Format	YUY2
Format output and FPS	640240(default)30fps 320240 30fps 640480 30fps 1280480 15fps 1280*720 7.5fps
Dual Image /Resolution	640240 , 1280480 ,2560*720
Automatic white balance	√
Exposure	√
Focus	Fixed Focus (the lens is adjustable)
USB cable	70CM cable for default
1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding
