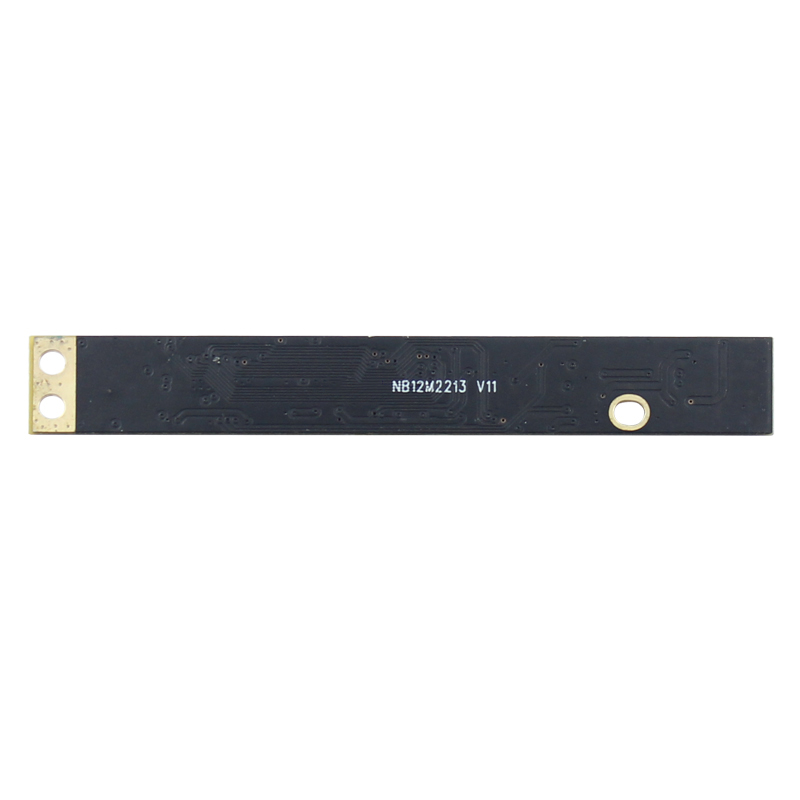

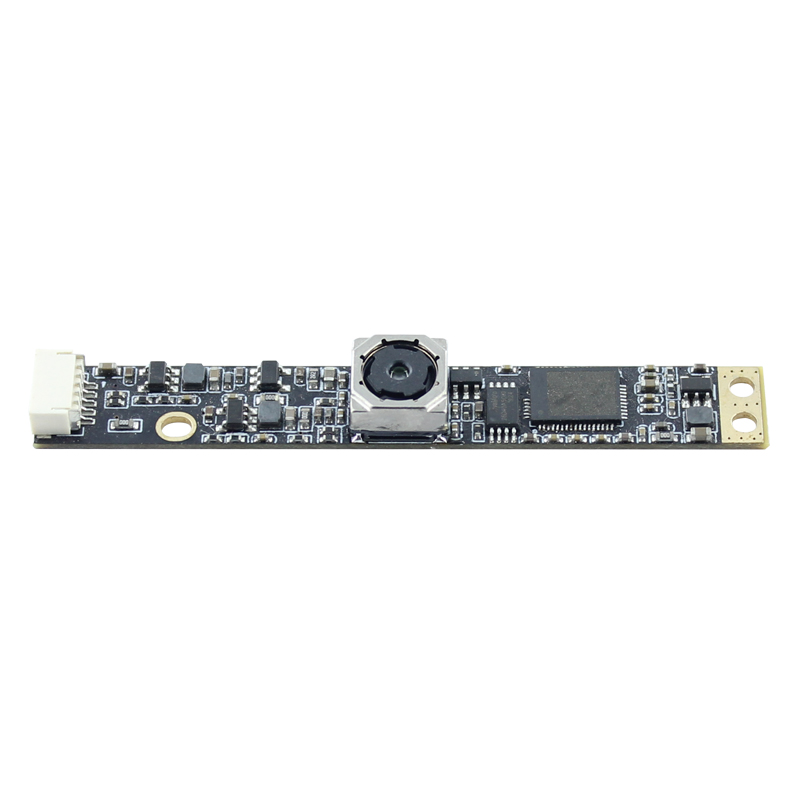

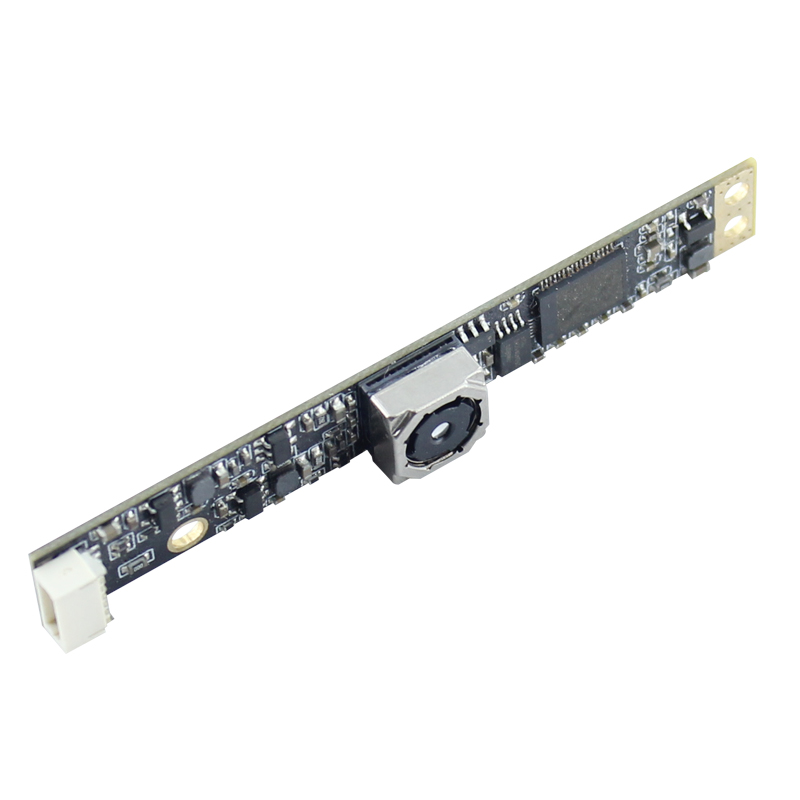

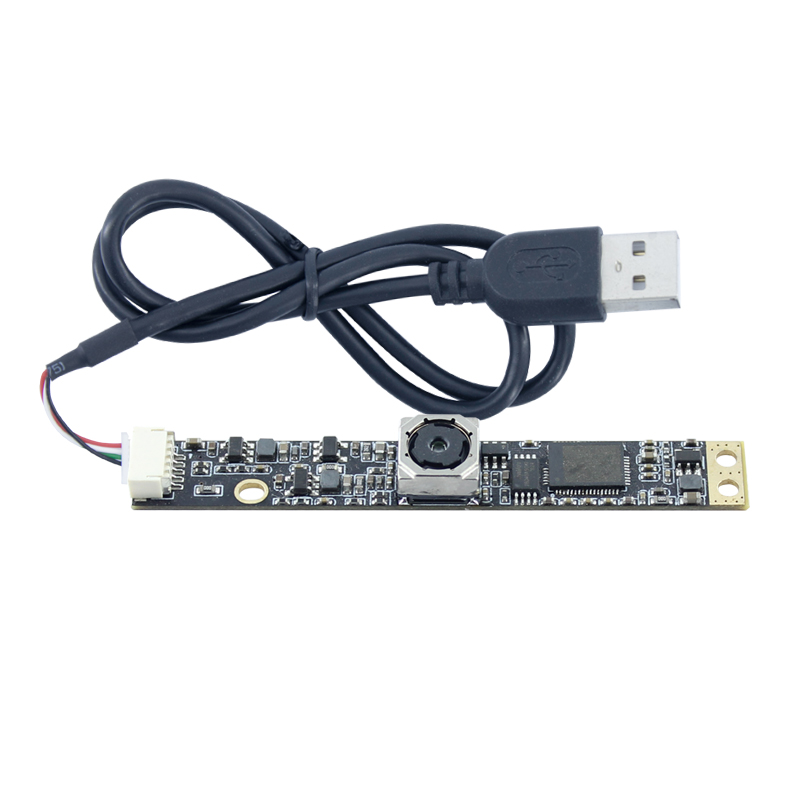

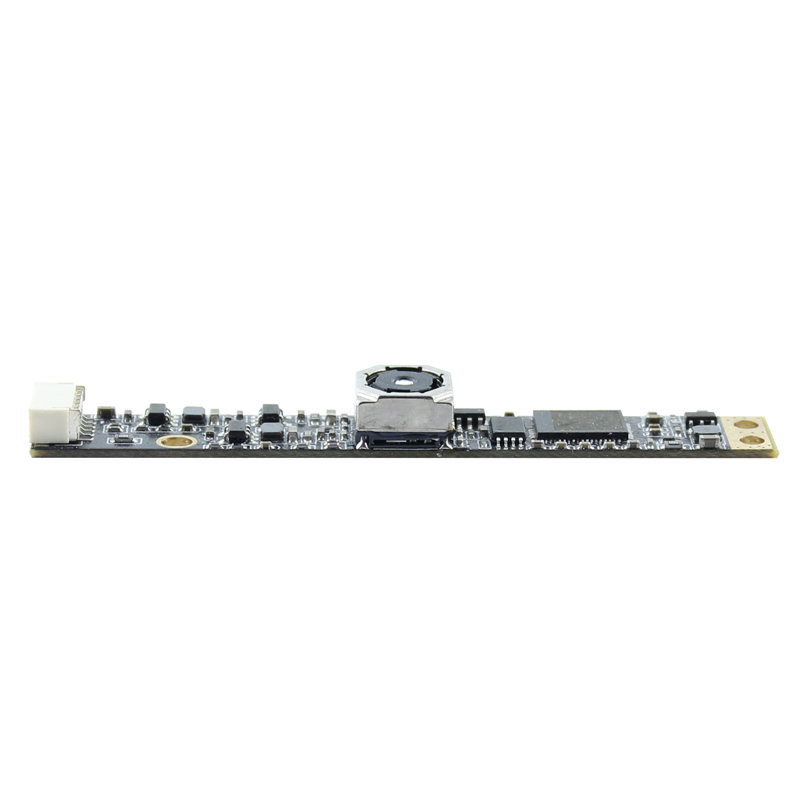

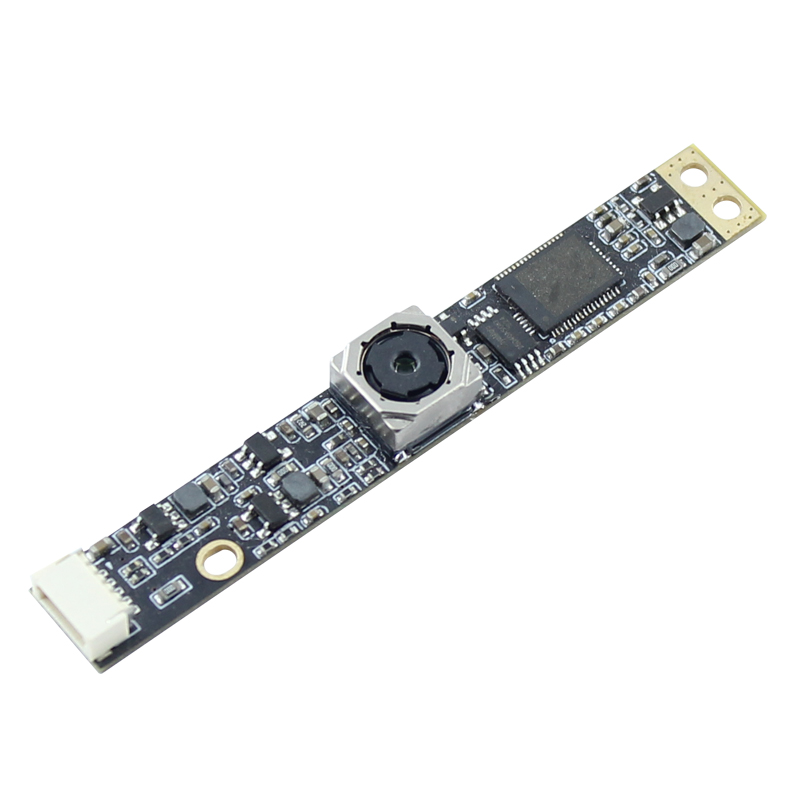

12MP 4K USB Camera Module Built-in Camera Module for Large Screen Class Advertising Machine

Product category:

USB Camera Board

SKU:

216743

Price:

$32.40

Description

Product Name	12MP 4K Industrial Camera Module
Module No	BMNB12M2213 V11-78
Module Size	65mm × 9mm × 6.15mm±0.2MM
Features	1. Standard advertising machine integrated machine structure and hole position (same as hole positions 1825 and 1915) 2. Optional fixed focus and several types of lenses (temporarily with a focus of 78 degrees) 3. Default 4K resolution 3840x2160 mjpeg 30 frames 4. Targeting customer groups for devices such as large 4k screens
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Auto
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	800 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	IMX258 (1/3.06" )
Seneor Package	CSP,Bare Die
Maximum resolution	3840*3104
Sensitivity	50mV /（lux-sec）
Pixel Size	1.12µm x 1.12µm
Maximum Image Transfer Rate	MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 1FPS MJPEG 3264x2448 30FPS / YUY2 3264x2448 1FPS MJPEG 3840x2160 30FPS / YUY2 3840x2160 1FPS MJPEG 3840x3104 15FPS / YUY2 3840x3104 1FPS
S/N Ratio	40db
Max Dynamic Range	83db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	6P
F/No	2.0
EFL	3.57 mm
FOV	78°
TV Distortion	<1.5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
