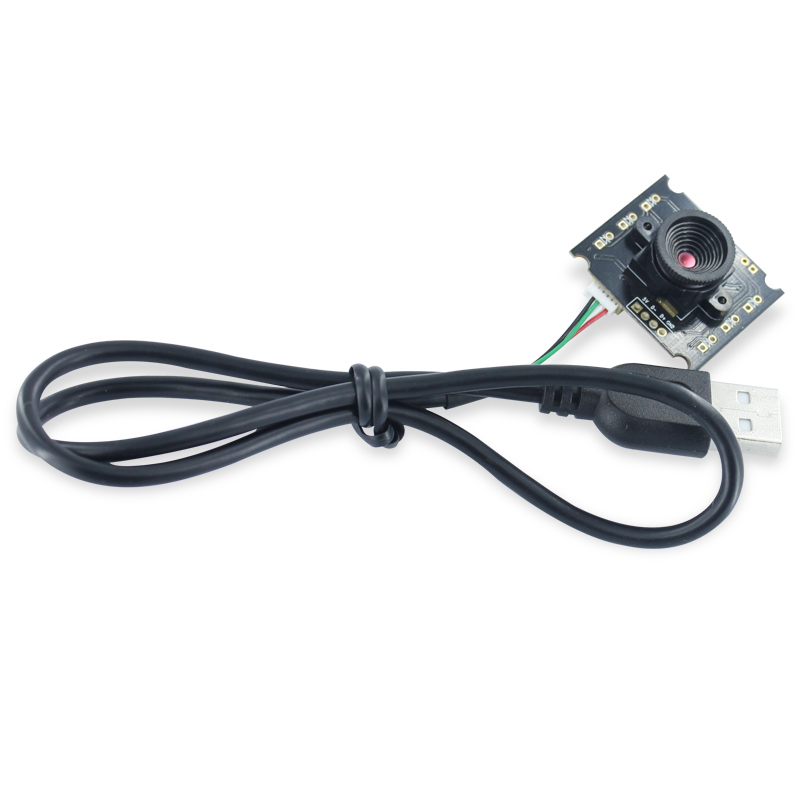

0.3MP USB OTG connection port Camera Module for Smart Terminal Devices

Product category:

USB Camera Board

SKU:

216586

Price:

$9.60

Description

Product Name	0.3MP 50Degree Aberration-free lens Camera Module
Module No	BMV2101 V11-50

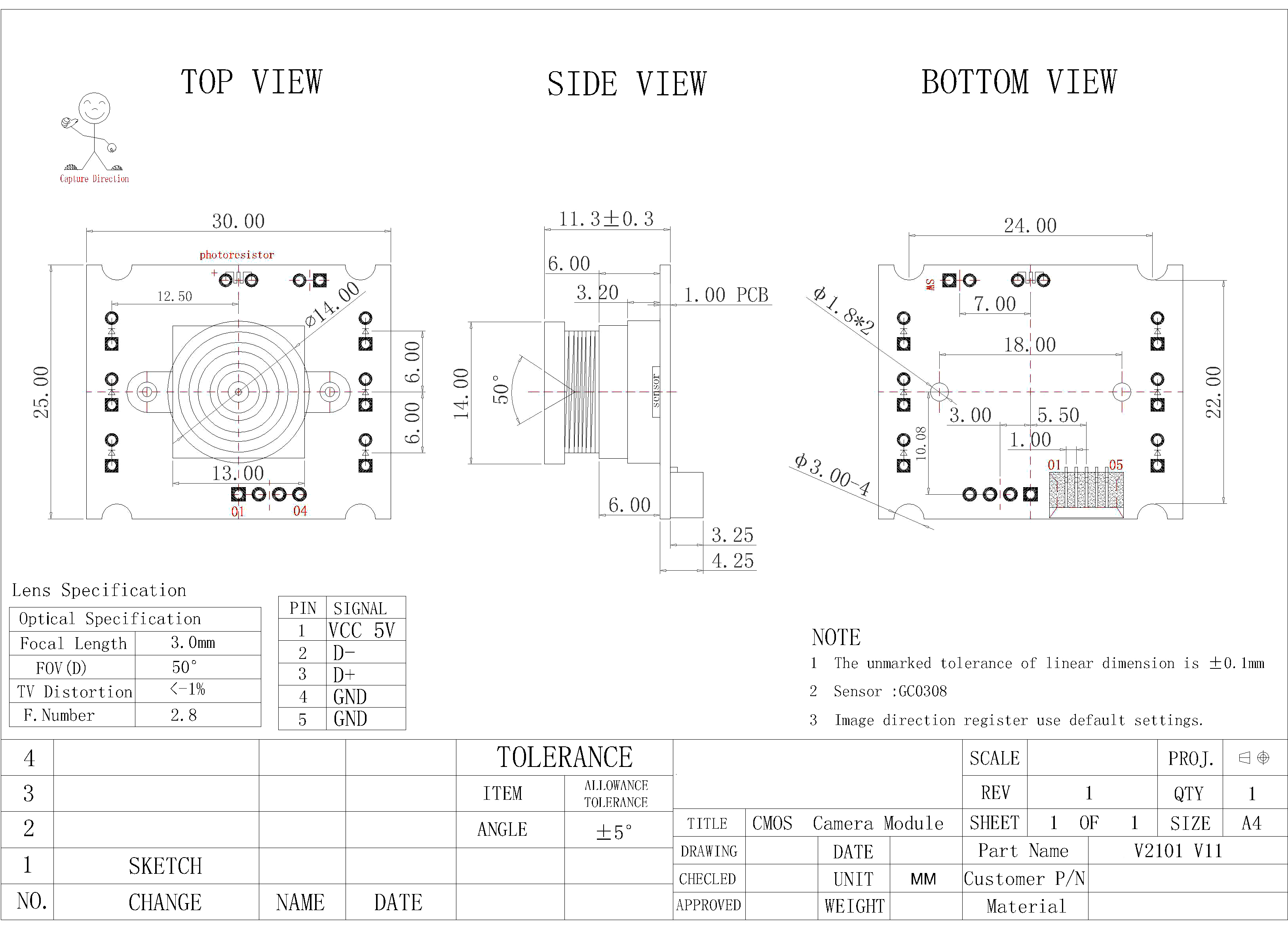

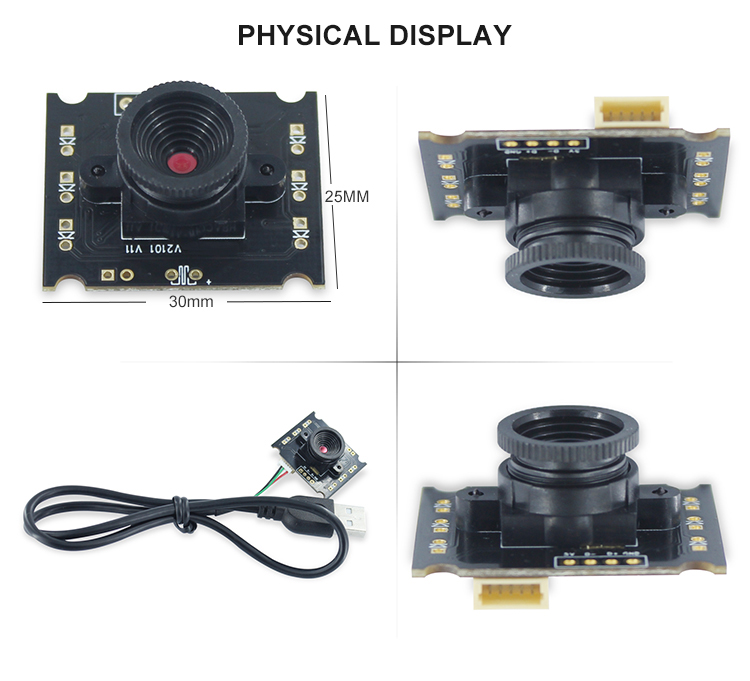

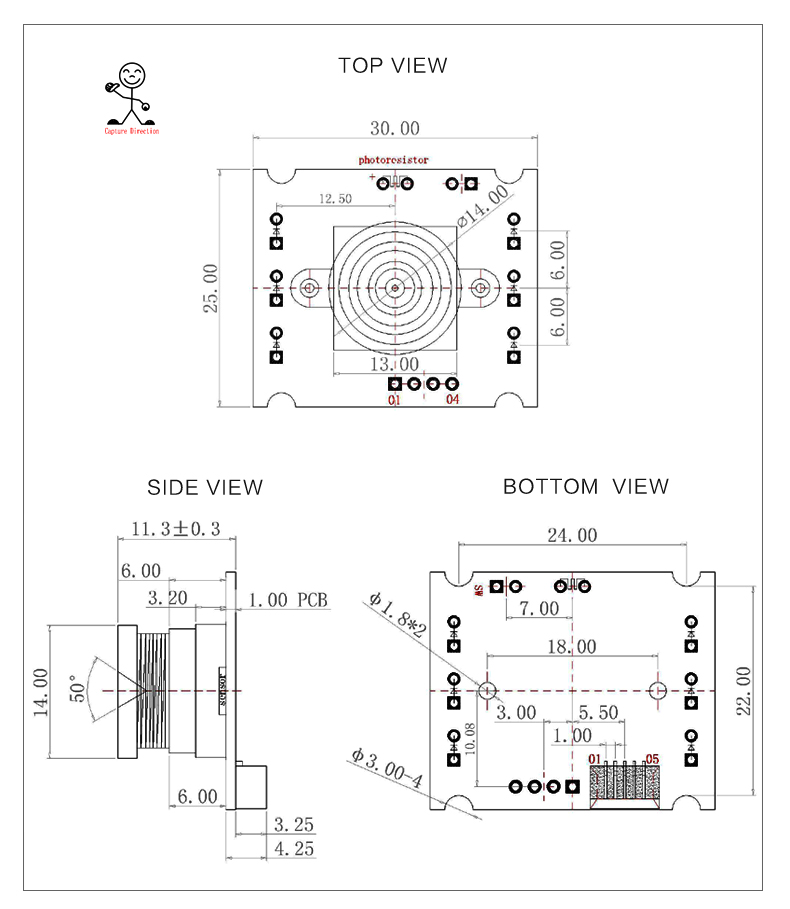

Module Size	30mm × 25mm × 11.3mm±0.3MM
Features	1. Conventional standard 30X25mm structure has great versatility 2. You can add and weld 6 plug-in lights (can be infrared and white light). The on/off image can also be controlled by light sensitivity. 3. Optional lens available 4. High cost performance
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROHS)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	400mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	GC0308 (1/6.5" )
Seneor Package	CSP,Bare Die
Maximum resolution	640*480
Sensitivity	2.5v /（lux-sec）
Pixel Size	3.4µm x 3.4µm
Maximum Image Transfer Rate	YUY2 160x120 30FPS YUY2 176x144 30FPS YUY2 320x240 30FPS YUY2 352x288 30FPS YUY2 640x480 30FPS
S/N Ratio	42 db
Max Dynamic Range	58 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	3P+IR
F/No	2.8
EFL	3.0mm
FOV	50°
TV Distortion	<-1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROHS
