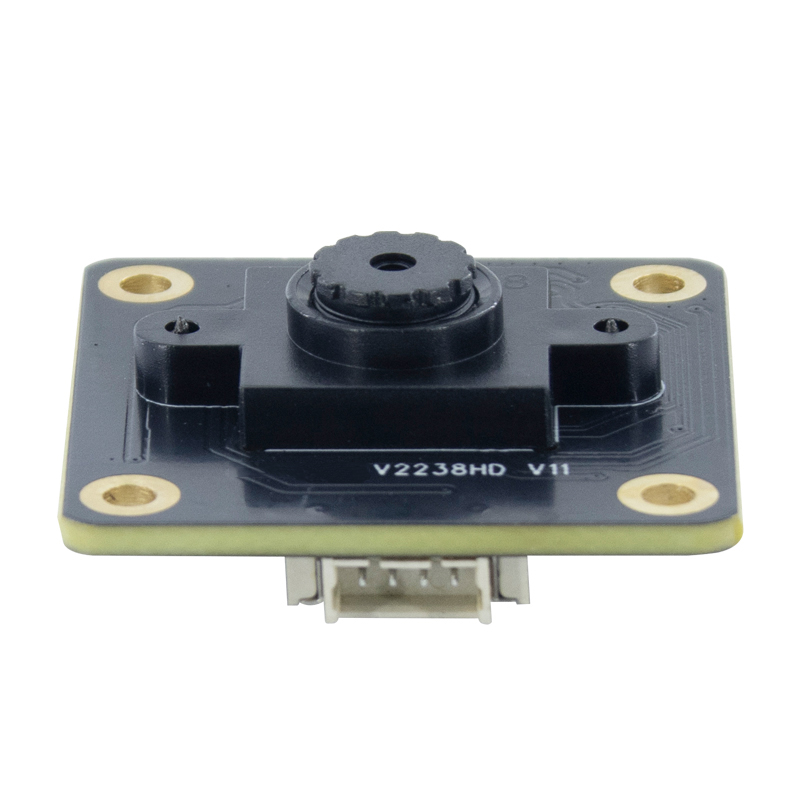

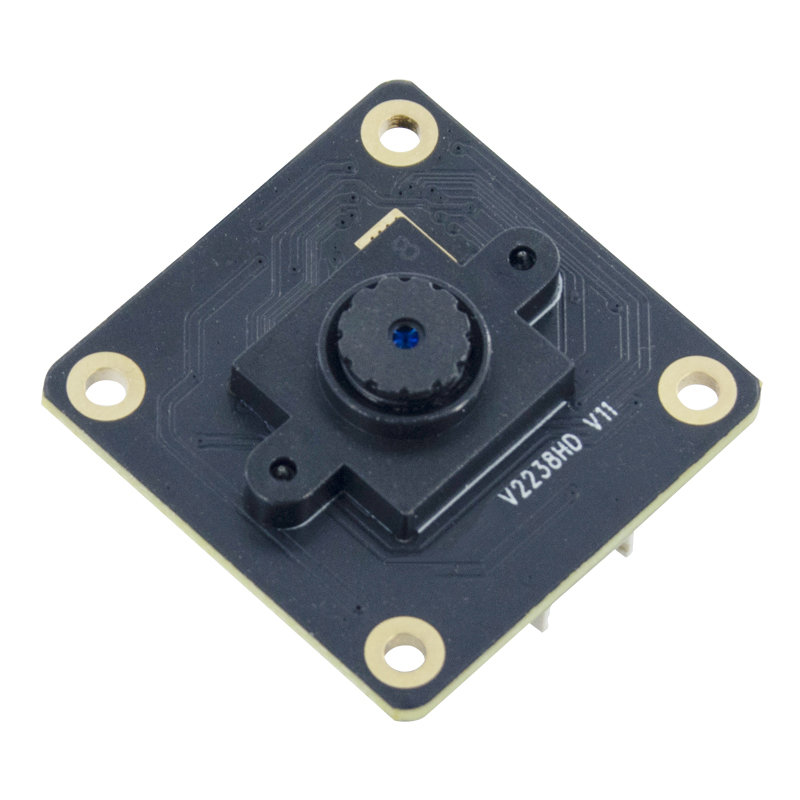

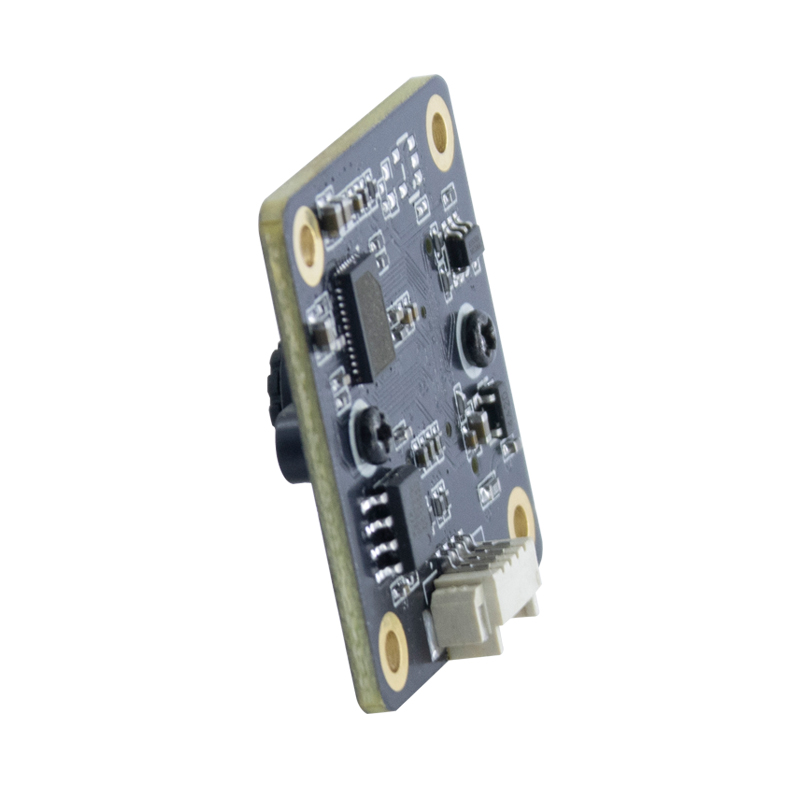

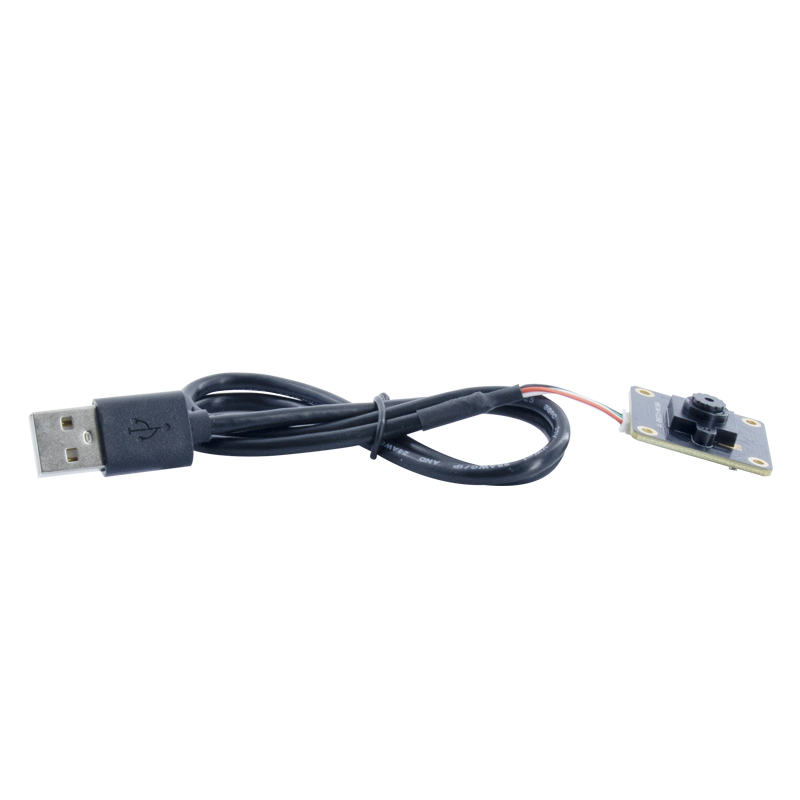

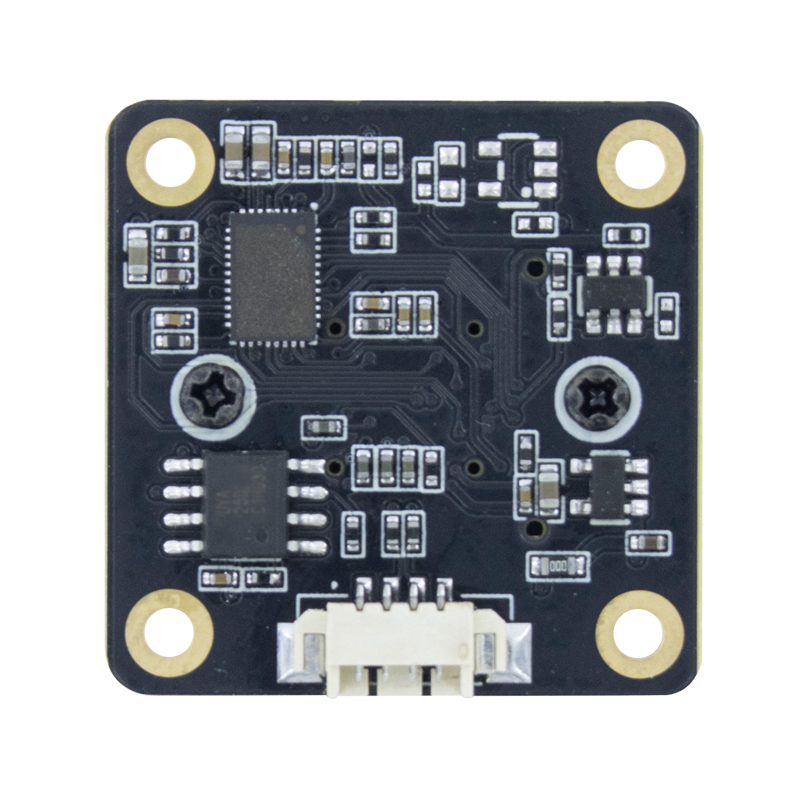

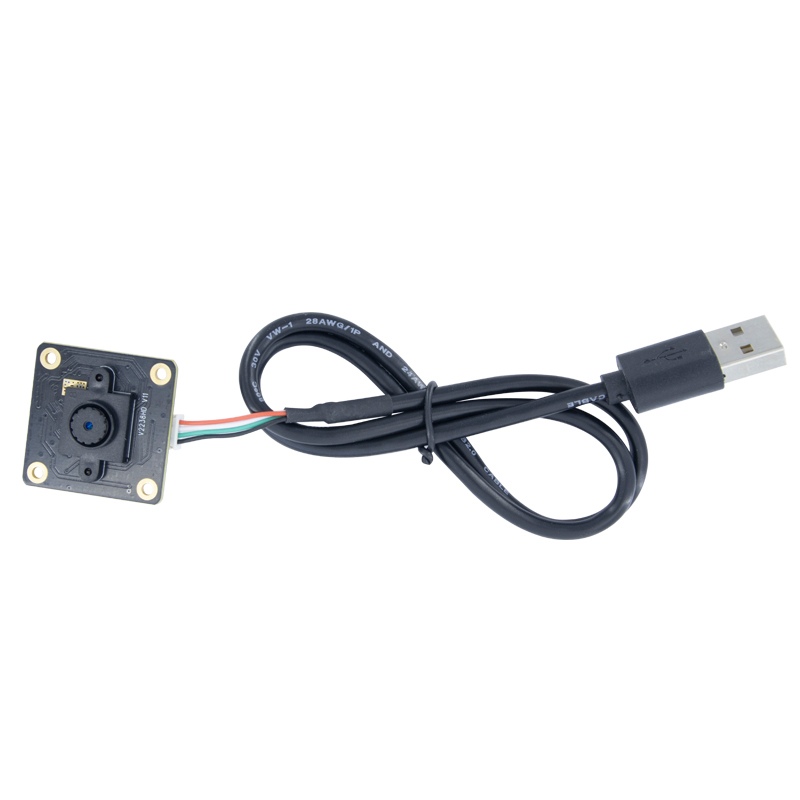

0.3MP standardized small camera module industrial equipment built-in camera module

Product category:

USB Camera Board

SKU:

216727

Price:

$12.00

Description

Product Name	0.3MP Industrial Camera Module
Module No	BMV2238HD V11-63
Module Size	28mm × 28mm × 7.60mm±0.3MM
Features	1. Standard industrial small camera housing 28X28mm structural hole position 2. Replace the old model 1312 3. For customer groups with high frame rate 60FPS and good effects. 4. Optional lens available 5. Disadvantages: low cost performance, infrared light cannot be added
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	380 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV7725 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	640*480
Sensitivity	3.0V /（lux-sec）
Pixel Size	6.0µm x 6.0µm
Maximum Image Transfer Rate	MJPEG 160x120 60FPS / YUY2 160x120 30FPS MJPEG 320x240 60FPS / YUY2 320x240 30FPS MJPEG 352x288 60FPS / YUY2 352x288 30FPS MJPEG 640x480 60FPS / YUY2 352x288 30FPS
S/N Ratio	50db
Max Dynamic Range	60db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4P
F/No	2.0
EFL	4.2mm
FOV	63°
TV Distortion	<1.5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
