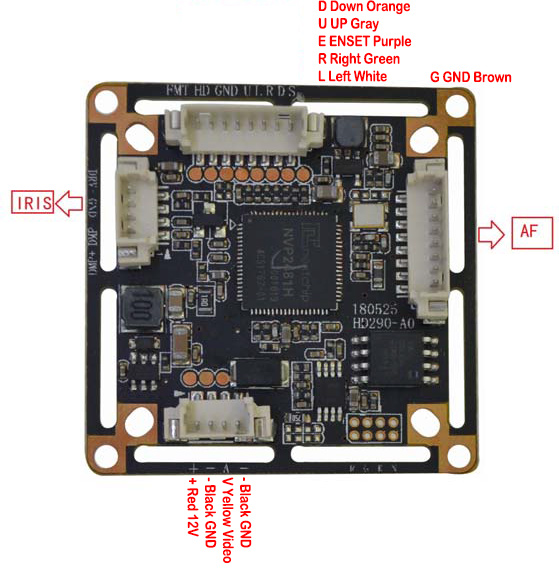

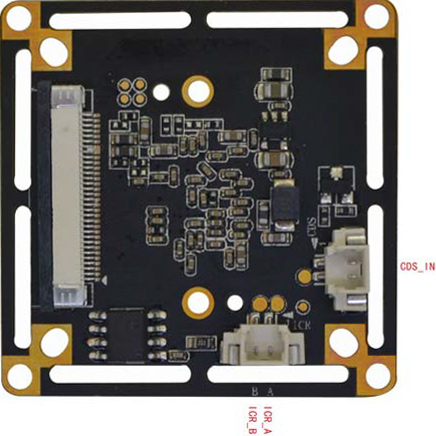

AH2481V810 1/2" OminiVision OV08A10 8MP 4K NVP2481 security CCTV AHD Camera module board

Quantity	Price
1 - 9	$109.50
10 - Unlimited	$96.00

SKU:

AH2481V810

Product category:

Sensor:

Resolution:

Video Coding:

full product footer

Description

Features:

0S08A10 image sensor, the highest pixel reaches 8 MP;
AHD 4K coaxial HD output;
OSD supports 13 languages, white balance/exposure, day/night switching/2D 3D noise reduction, gain modification, digital wide dynamic, backlight compensation function;
Supported by NVP2481H DSP with OSD function (mirror, color/black and white, PAL/NTSC switching);
Support dual filter switching, day and night effects are clear. Support UTC;

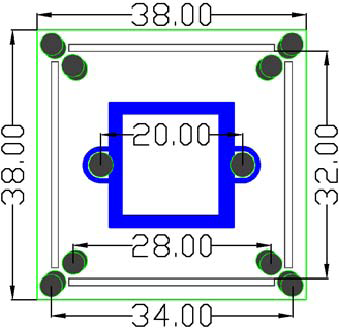

Power (600W) video (2KV) dual lightning protection design, small size 32*38 design

Main chipset	NVP2481
Image sensor	1/2”8MP OS08A10
Effective Pixels	4K 3840 x 2160
Features
Video Standard	PAL / NTSC 15fps
D/N	Auto / Color / B&W
SNR	≥50dB
Min illumination	0.1Lux
BLC	Support
AES	Auto / 1/50 ~ 1/100000 Sec
AWB	Auto
OSD Languages	English/Chinese/Chinese Traditional/German/French/Italian/Spanish/Polish/Russian/Grape/Netherlands/Turkey/Japanese
Video output	AHD
Storeage	≈29MB / minute
Temperature	-20℃～+50℃
Power	DC12V 166mA ±6mA (9-16V)
